Waterproof Signal Lamp 22XA Series
Description
Waterproof Signal Lamp 22XA Series are usually used to reflect the working status of circuits with or without power, the working status of electrical equipment running, stopped, or tested, and the position status closed or open.
Parameters
|
Mounting hole size |
6/8/10/12/16/19/22mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

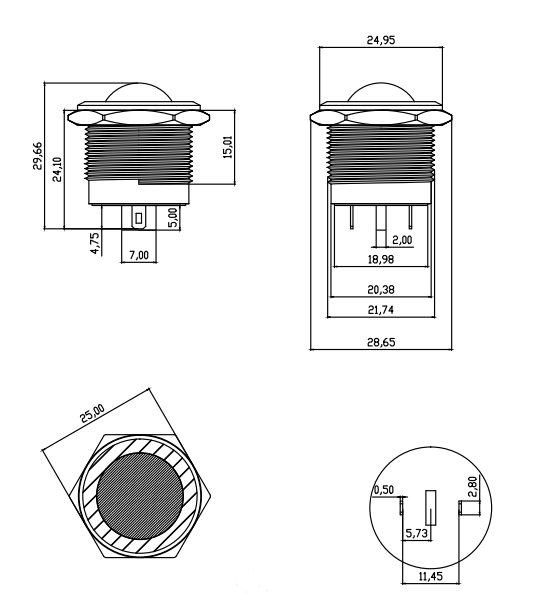

Waterproof Signal Lamp 22XA Series Drawing
Features
1.Made from premium materials including stainless steel, nickel-plated brass and aluminum oxide , the waterproof signal light is built to withstand harsh environments. Its rugged design ensures longevity and reliability, making it ideal for both outdoor and indoor installations.
2.With a 22mm mounting hole size, it can be easily integrated into a variety of setups, providing versatility for your specific needs.
3.The 22XA Series offers a variety of vibrant LED colors: red, green, yellow, blue and white .Allowing you to tailor your signaling system to your operational requirements. Whether you need to indicate a warning, operational status or simple notification, these color options provide clarity and enhanced visibility.
4.Choose from solder pin or screw terminal types for easy installation and secure connections. The Waterproof Beacon 22XA Series is more than just a product; it's a reliable partner in keeping your electrical system running smoothly.
