Stainless Steel Push Button 22A Series

The Stainless Steel Push Button 22A Series supports a 3A current rating , making it suitable for low to moderate power applications. The momentary or latching operation modes provide flexibility for various control needs, whether for start/stop functions or sustained activation.

●Mounting hole size: 22mm
●Switch current: 3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO 1NC/2NO 2NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK09
If you need customized,please feel free contact HS!

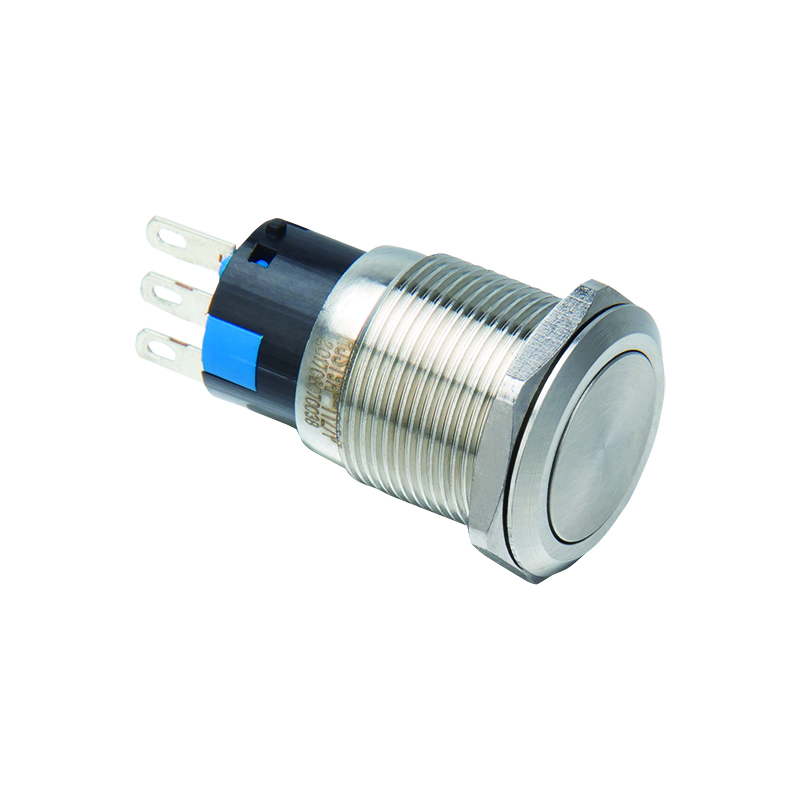

22A-P-Q

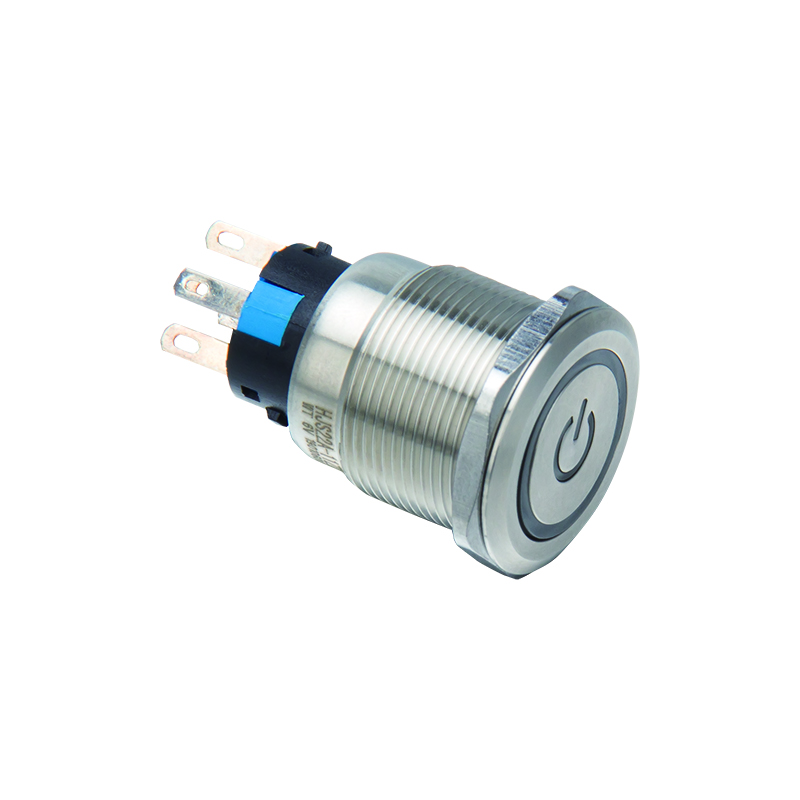

22A-D4-P-Q

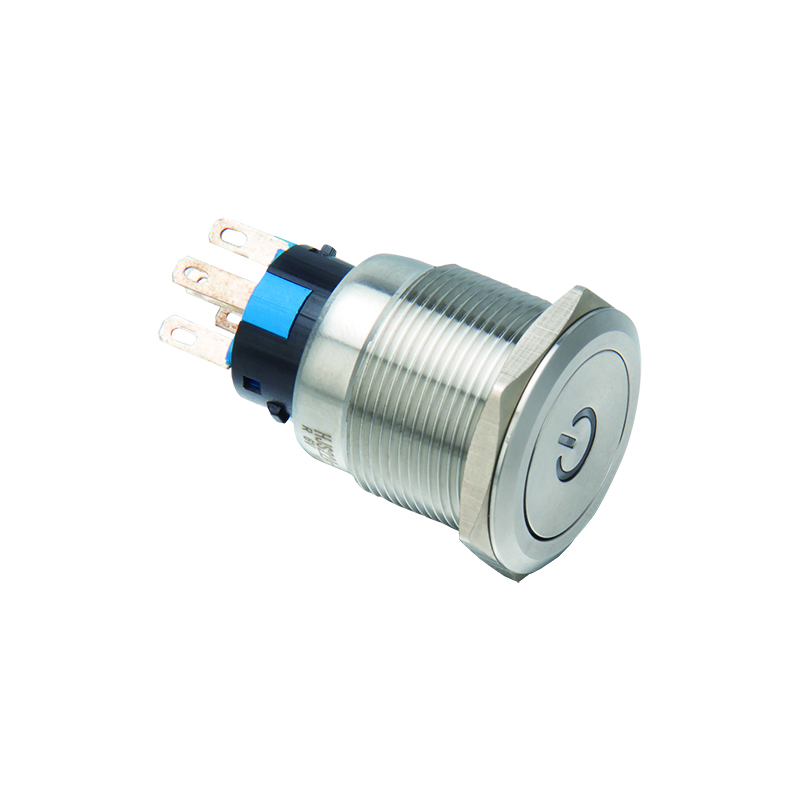

22A-D3-P-Q

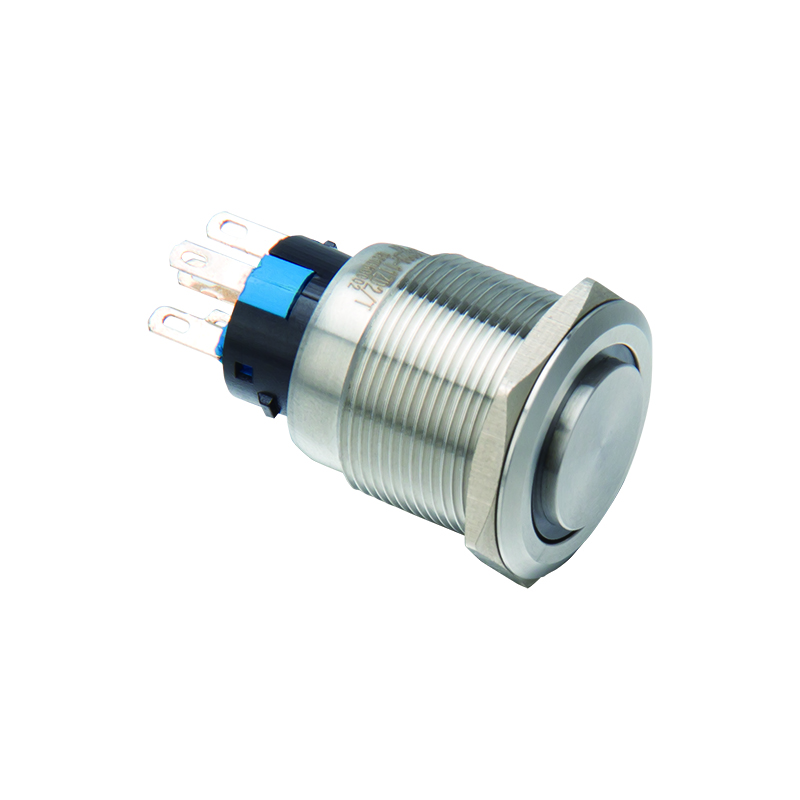

22A-D2-T-Q

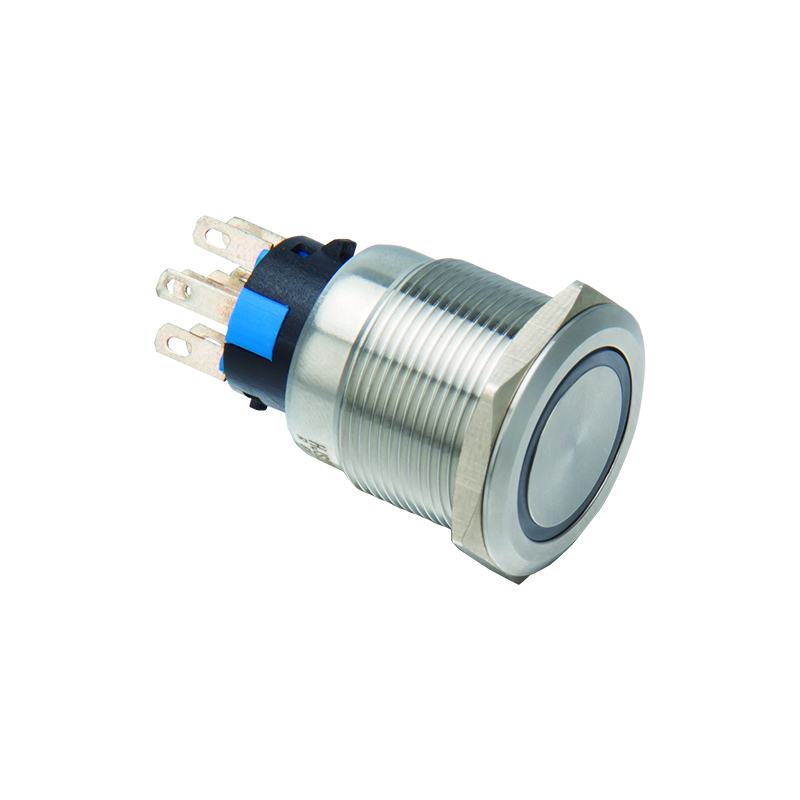

22A-D2-P-Q

Ip65 Push Button Switch

Metal Push Button Selection Guide

Description

Parameters

Mounting hole size	16mm,19mm,22mm,25mm	Operation Mode	Momentary,Latching
Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 3.1mm	Nut torque	5~14Nm

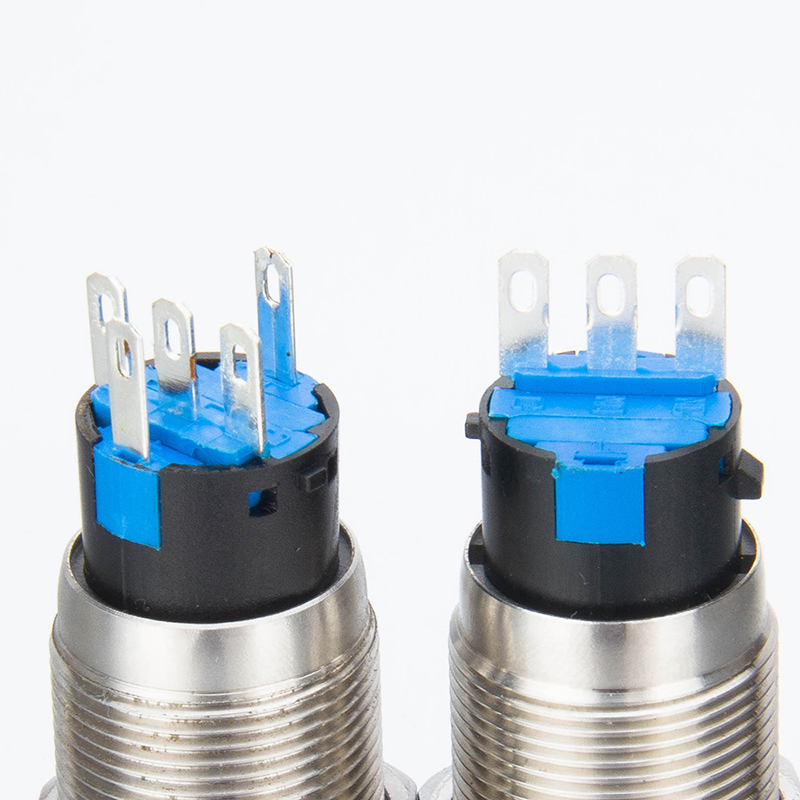

Protection level	IP65/IP67 IK09	Terminal type	Wiring pins (2.8X9mm)
Material	Button: Stainless steel/Chrome plated Brass/Aluminum Oxidized	LED Light	LED color: R Y G B W
	Body: Stainless steel/Chrome plated Brass/Aluminum Oxidized		LED Type: Two way LED beads(AC and DC universal)
	Base: PA		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Contact: Gold plated contact		LED life: 40,000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

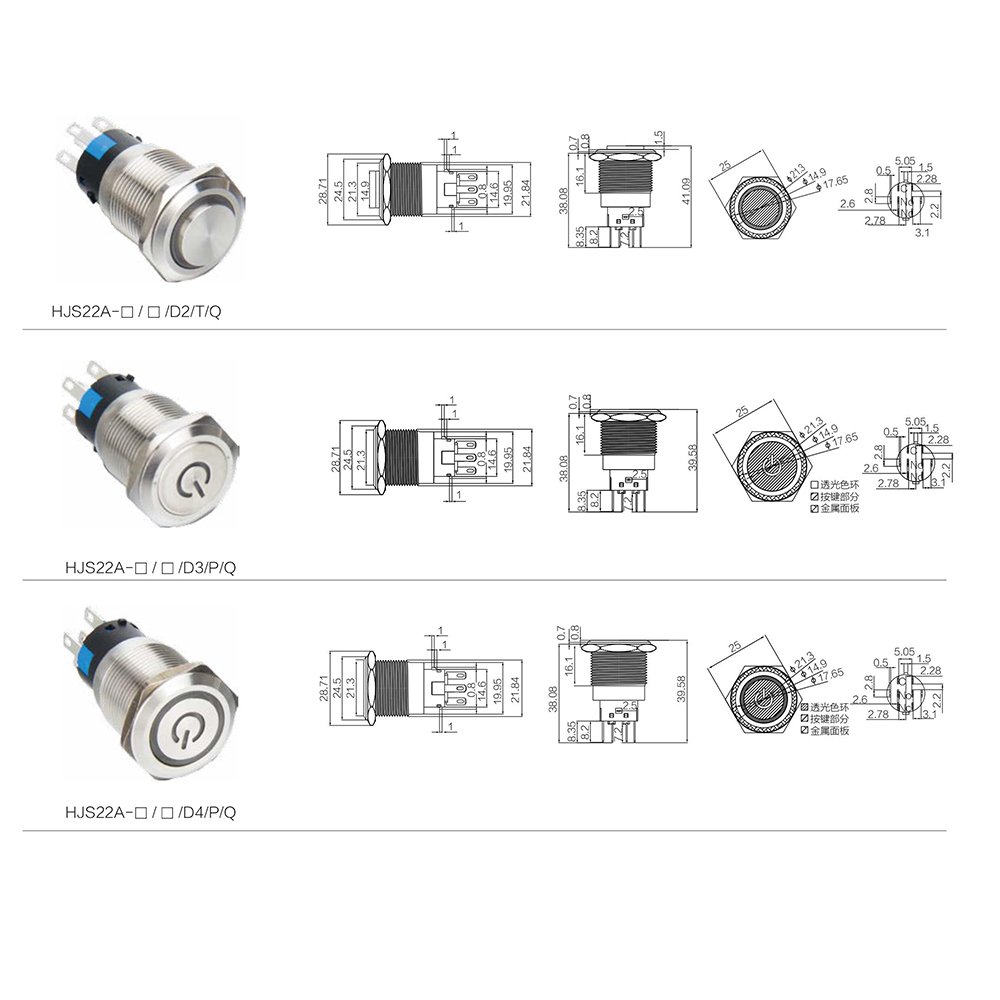

Stainless Steel Push Button 22A Serie Drawing

22A Series Stainless Steel Push Button – Product Features

1.Premium Durabilit–Constructed from stainless steel for superior corrosion resistance, with optional nickel-plated brass or aluminum oxidized finishes for enhanced protection in harsh environments.

2.Precise Fit & Easy Installation–Features a 22mm mounting hole size , ensuring seamless integration into control panels, machinery, and automation systems.

3.Reliable Switching Performance–Rated for 2A current , making it ideal for low to moderate power applications in industrial and commercial settings.

4.Versatile Operation Modes–Supports both momentary (push-to-make) and latching (push-on/push-off) functions, providing flexibility for various control needs.

5.Robust & Tactile Design–Engineered for high-frequency use with a responsive, tactile feel, ensuring long-term reliability in demanding applications.

6.Wide Application Range–Perfect for industrial automation, marine equipment, heavy machinery, and control panels where durability and precision are crucial.
