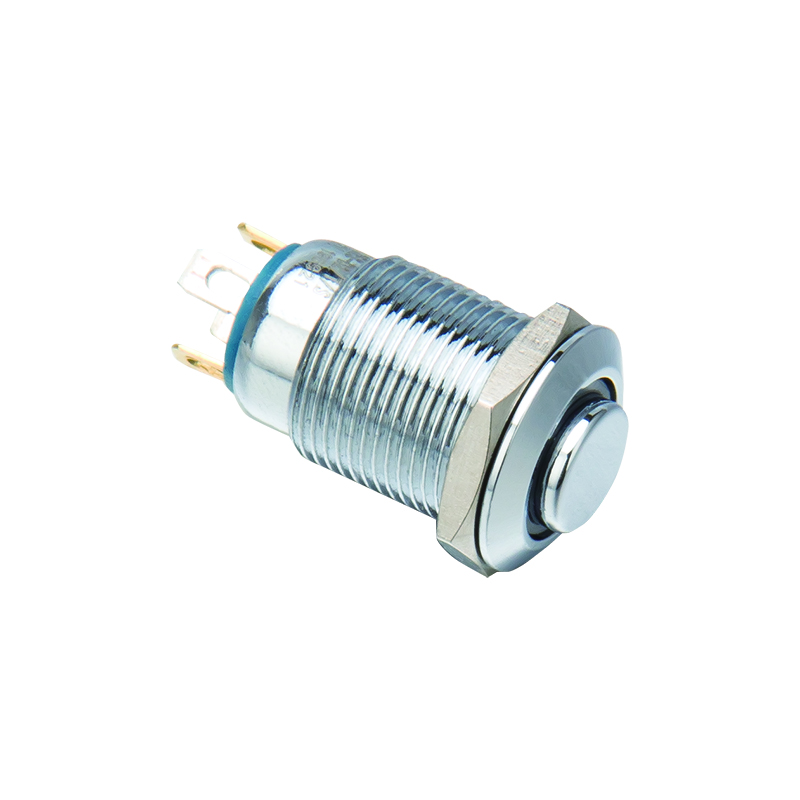

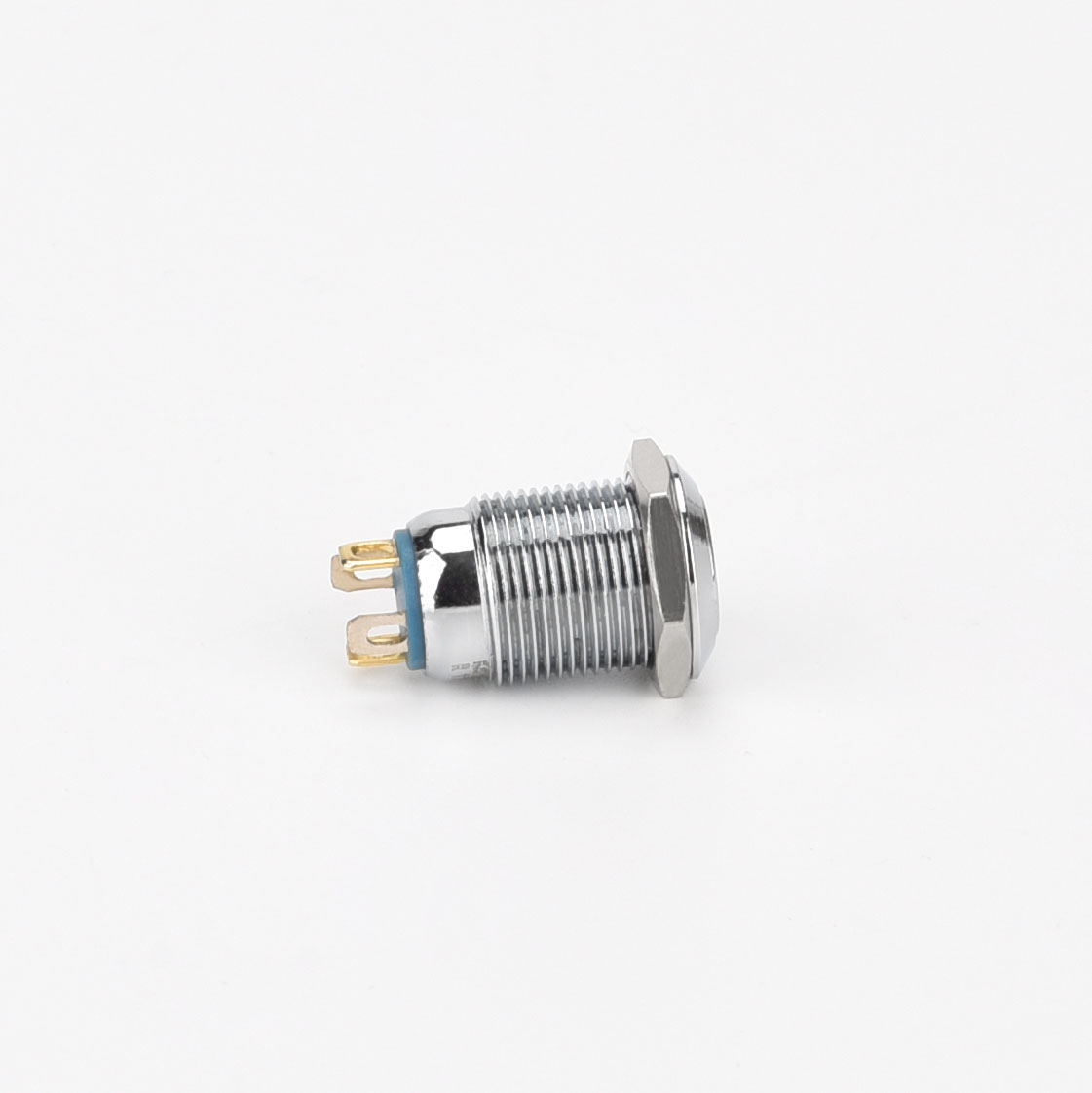

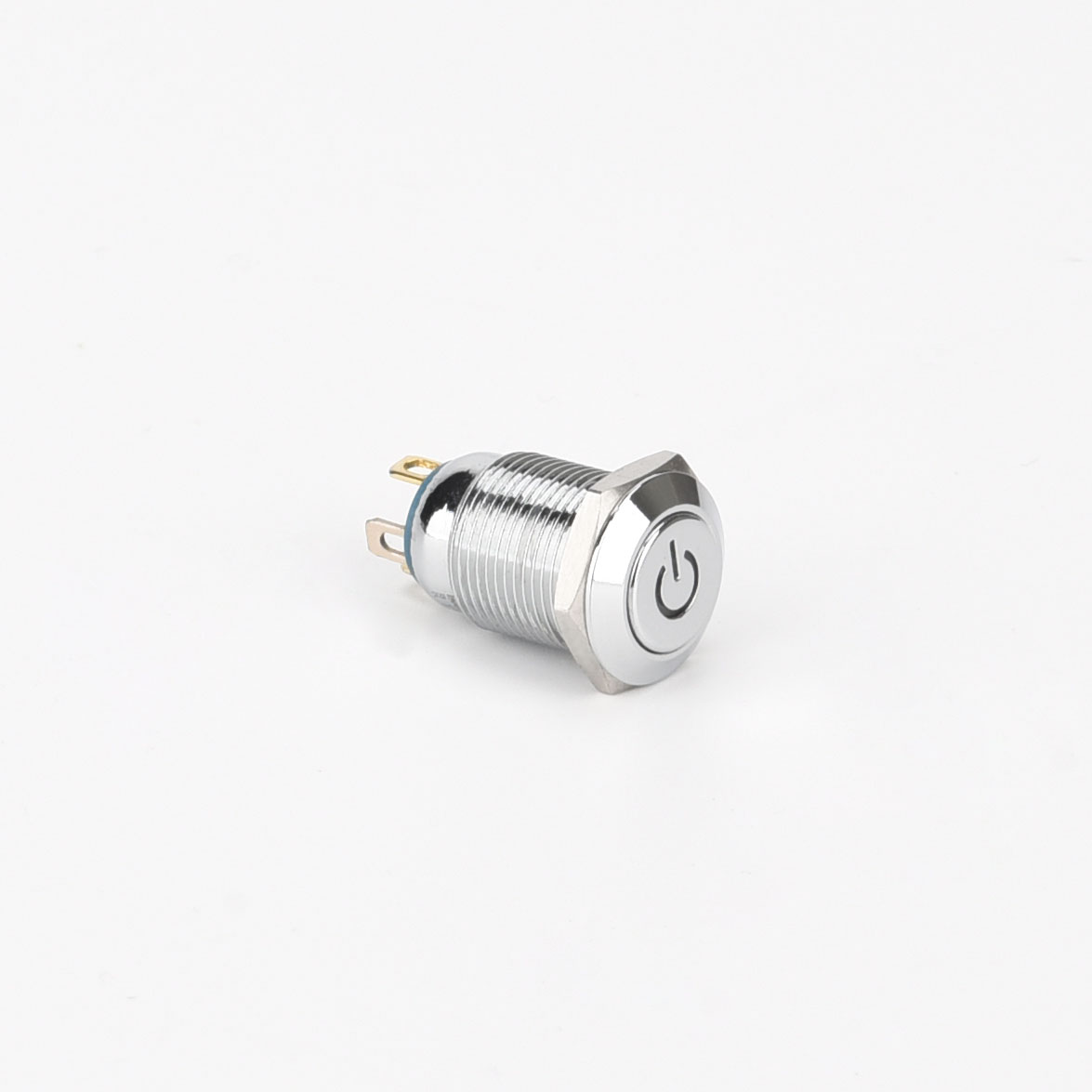

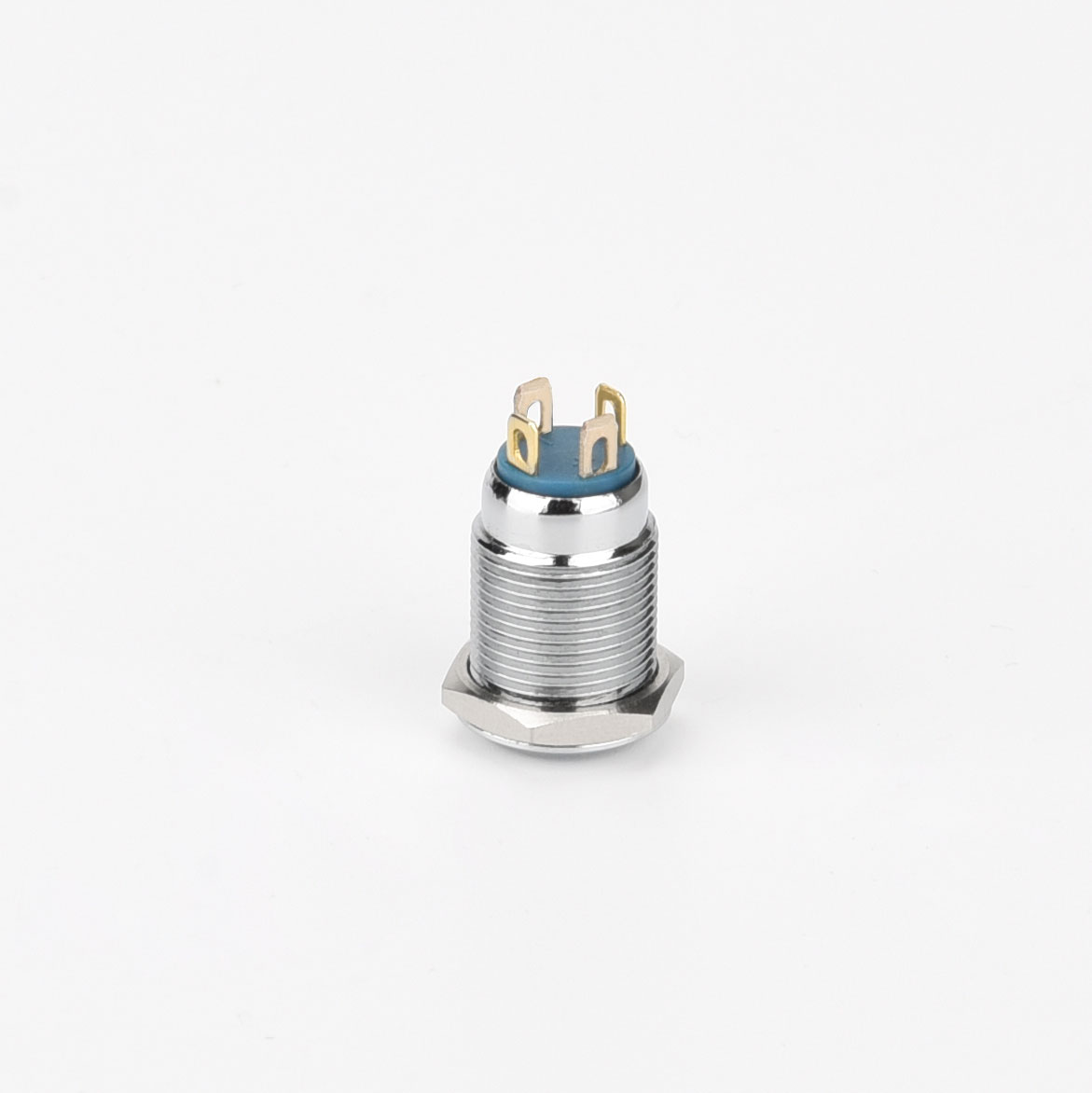

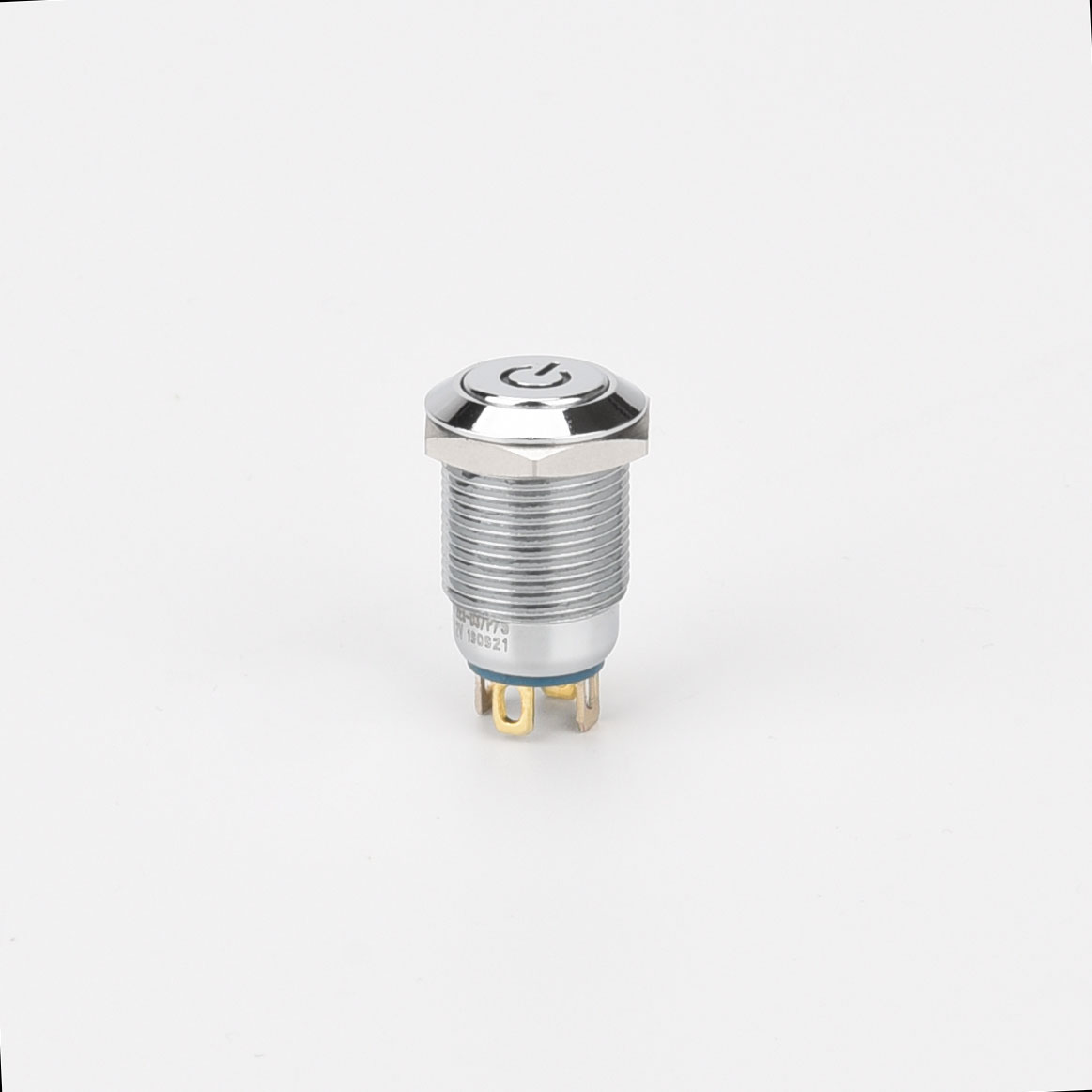

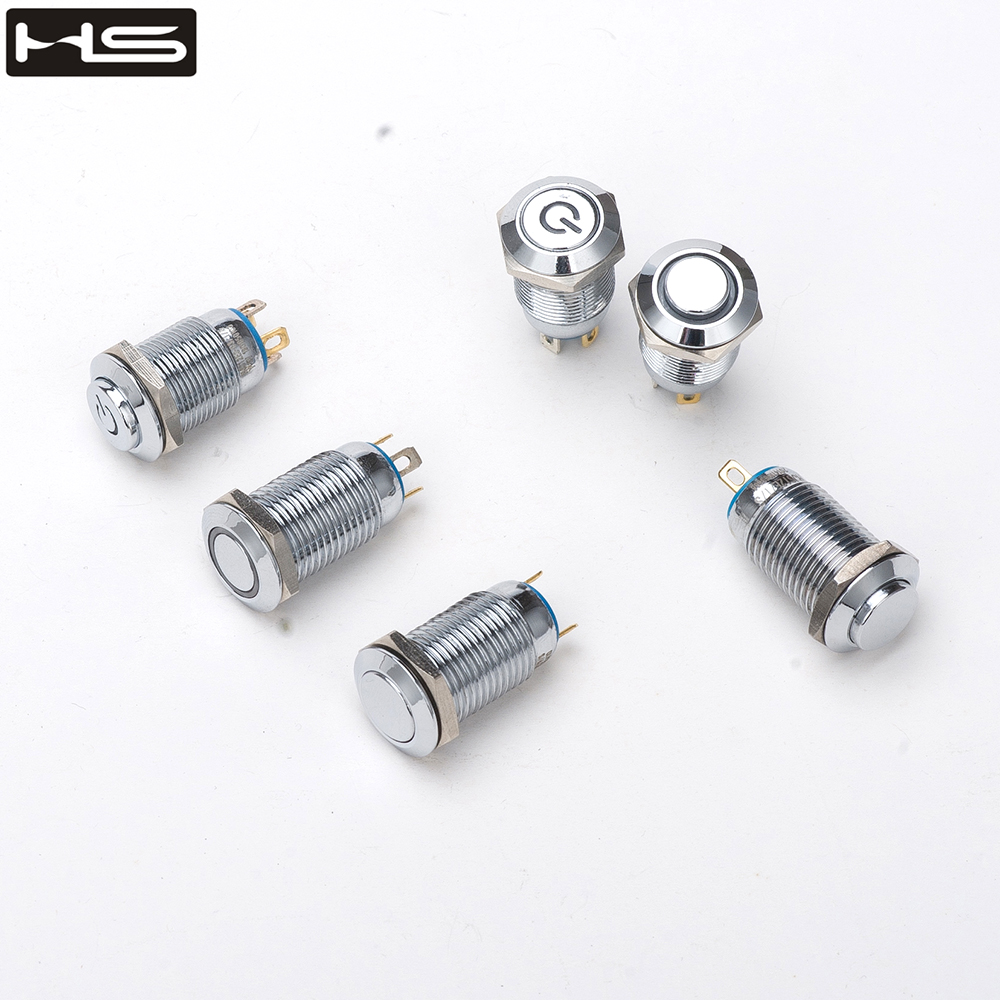

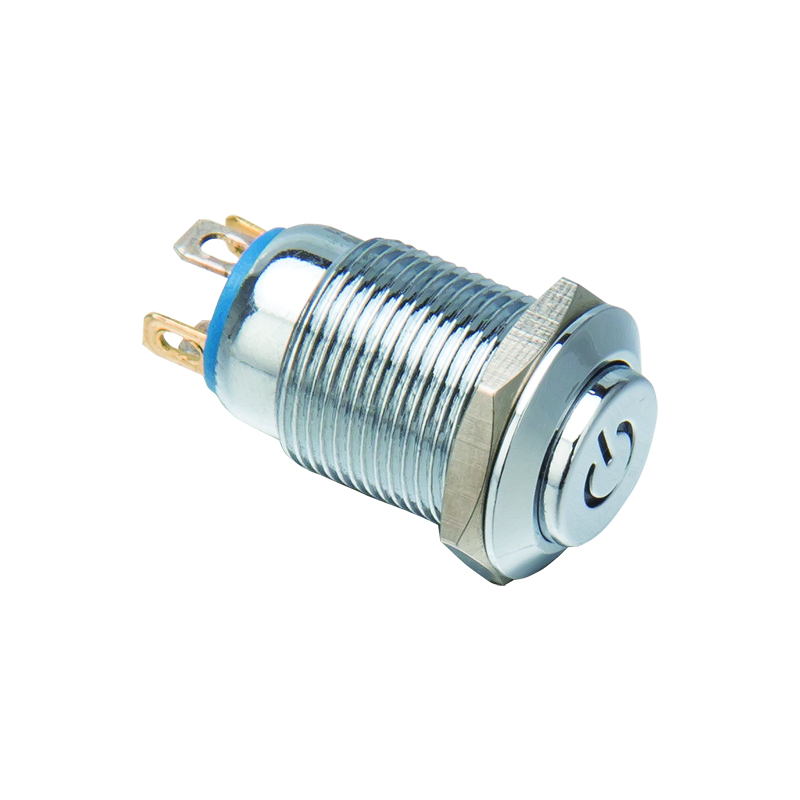

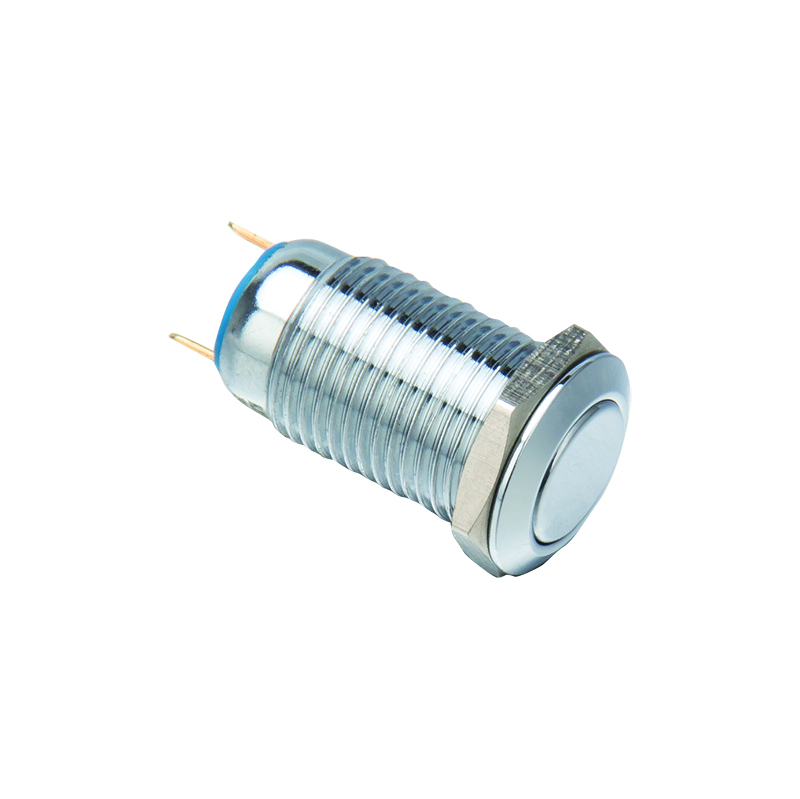

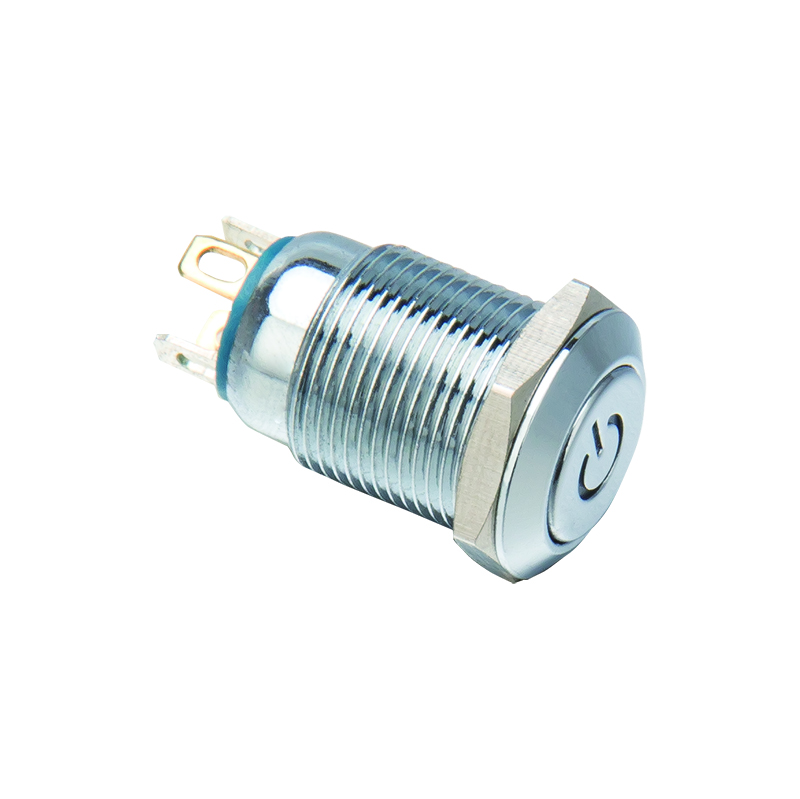

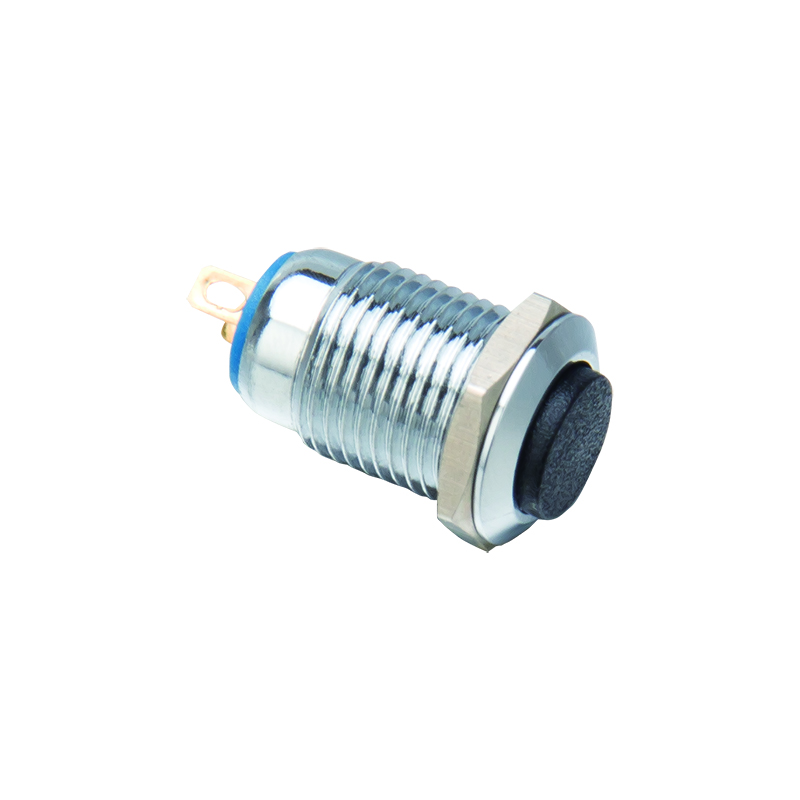

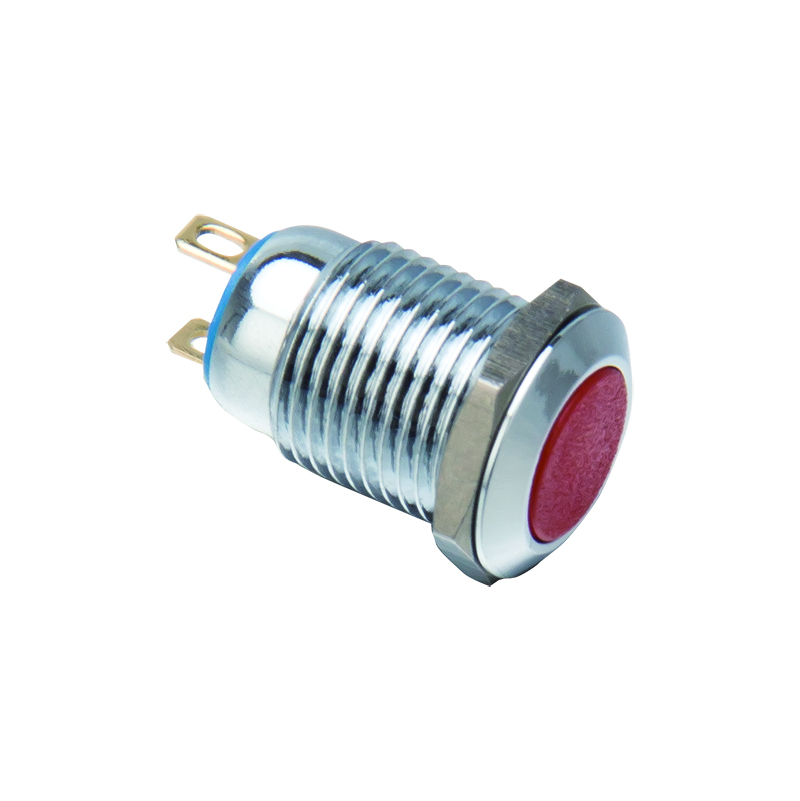

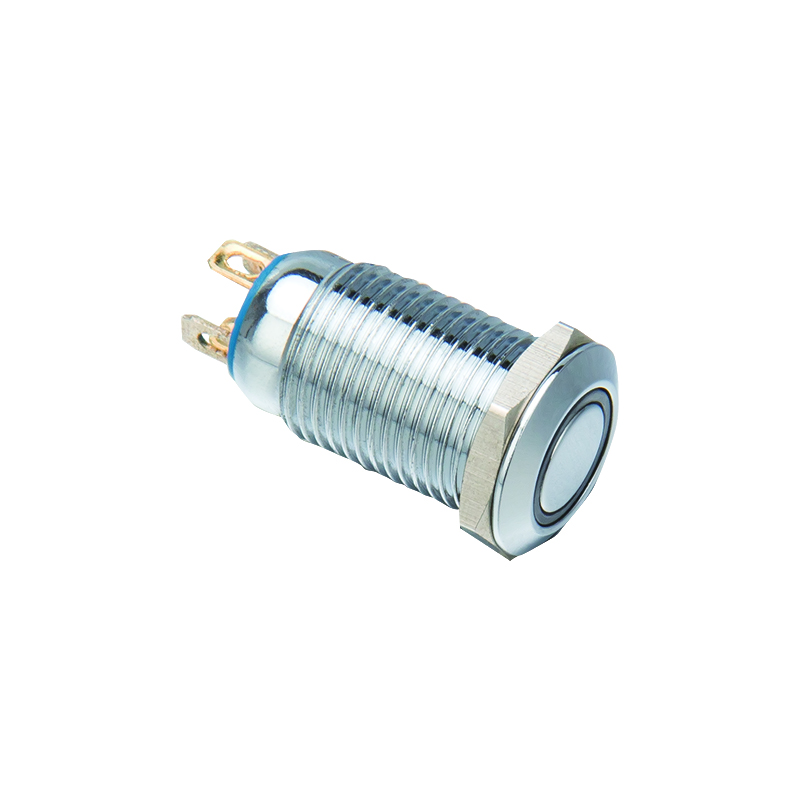

Stainless Steel Push Button 12E Series

Stainless Steel Push Button also named Illumination Push Button Switch.The max current can be reach to 2A.
● Mounting hole size: 12mm
● Switch current: 2A
● Material: Stainless steel/Chrome plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

HJ12E/D3/T/S
HJ12E/D2/P/S
HJ12E/P/S
HJ12E/D2/T/S
HJ12E/T/S
HJ12E/D3/P/S
HJ12E2/P/S
HJ12E2/T/S

Stainless Steel Push Button

Metal Push Button Selection Guide

Description

Stainless Steel Push Button also named Illumination Push Button Switch.With a maximum current capacity of 2A, the Stainless Steel Push Button switch is designed to efficiently meet your power needs. Whether you want to control lighting, machinery or other electronic devices, Stainless Steel Push Buttons provide a seamless solution. The 12mm mounting hole size makes installation simple, allowing you to easily integrate it into your existing setup.

Parameters

Switch rating	Current: 2A,Voltage:36V	Mechanical life	More than 1,000,000 times
Electrical life	More than 200,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 100MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK08	Terminal type	Wiring pins (2.8X3.8mm)
Material	Button: Stainless steel/Chrome plated Brass/Oxidized Aluminum/PC	LED Light	LED color: R Y G B W
	Body:Stainless steel/Chrome plated Brass /Oxidized Aluminum		Rated current: 3 to 48V About 15mA 110 to 220V about 2mA
	Base: PA		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Contact: Gold plated contact		LED life: 40,000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

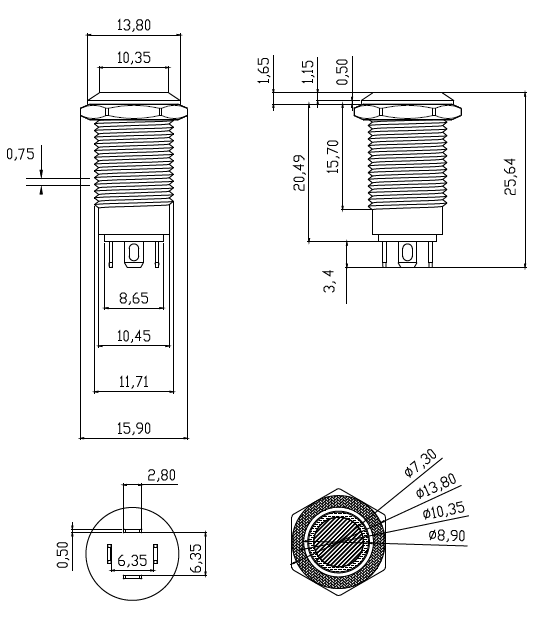

Stainless Steel Push Button Drawing

Features

1. IP65 or IP67 waterproof

2. Sturdy Construction: Made of high-quality stainless steel, chrome-plated brass, and aluminum oxide materials, this push button switch is built to withstand the rigors of daily use. Its corrosion-resistant properties ensure longevity, making it ideal for indoor and outdoor applications.

3. Impressive Performance: This switch has a maximum current capacity of 2A, making it ideal for a variety of electrical projects. Whether you’re working on lighting systems, machinery, or DIY electronics, stainless steel push button switches deliver reliable performance every time.
