Signal Indicator Light 12X Series
Description
Signal Indicator Light 12X Series is designed to provide clear visual signals, ensuring you are always informed about the operational state of your machinery. Whether you need to know if a system is powered on, off, or experiencing a malfunction, the Signal Indicator Light delivers reliable performance in any environment.
Parameters
|
Mounting hole size |
8/12/16/19/22mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

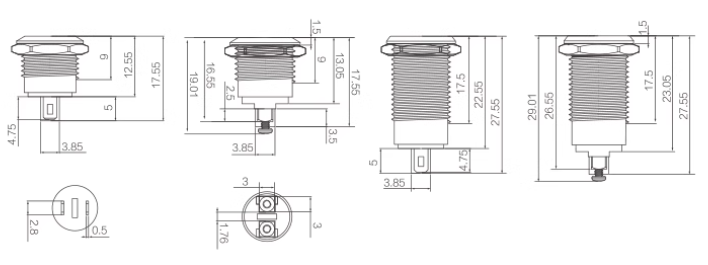

Signal Indicator Light 12X Series Drawing
Features
1.It is made of high-quality materials, including stainless steel, nickel-plated brass, and aluminum oxidized, this indicator light is built to withstand the rigors of industrial use while maintaining a sleek and professional appearance.
2.The flat round head shape not only enhances its aesthetic appeal but also ensures easy integration into your existing setups.
3.Installation is a breeze with the Signal Indicator Light, featuring a mounting hole size of 12mm and offering terminal types that include welding pins or screws. This versatility ensures that you can easily incorporate the indicator light into your systems without hassle.
4.Available in a variety of vibrant LED colors: red, green, yellow, blue, and white.the Signal Indicator Light allows for customizable signaling that can be tailored to your specific needs. Whether you want to indicate operational status, alert users to potential issues, or simply enhance visibility, these color options provide the flexibility you require.
