Signal Indicator Lamp 16X Series
-
HJ16X/S
-
HJ16X/M
Description
The Signal Indicator Lamp can be used in various applications. Whether you’re operating a truck, navigating a boat, or managing factory equipment, this versatile lamp is designed to meet your signaling needs with ease and efficiency.
Parameters
|
Mounting hole size |
8/12/16/19/22mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

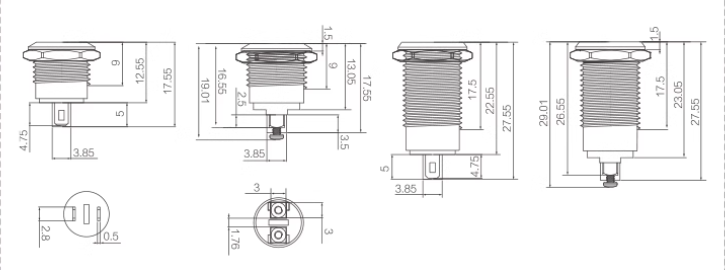

The Signal Indicator Lamp Drawing
Features
1.The Signal Indicator Lamp is engineered for simplicity and longevity. Its straightforward design allows for easy replacement, ensuring minimal downtime in your operations. This directional lamp comes equipped with a wire, making it suitable for a wide range of applications, including factory equipment, numerical control lathes, and even oil exploitation. No matter the environment, this lamp is built to perform.
2.The LED metal indicator light not only enhances durability but also ensures that you receive consistent and accurate signal indications. The robust construction of the Signal Indicator Lamp guarantees that it can withstand the rigors of industrial use, providing you with peace of mind and reliability in every situation.
3.With its bright LED technology, the Signal Indicator Lamp offers clear visibility, making it an essential tool for operators who need to communicate important signals effectively. Whether you’re signaling for maintenance, alerting personnel to operational changes, or indicating equipment status, this lamp is designed to deliver every index signal indication you require.
