Selector Switch 22A-CY Series
-
HJ22A-C/K/Q
-

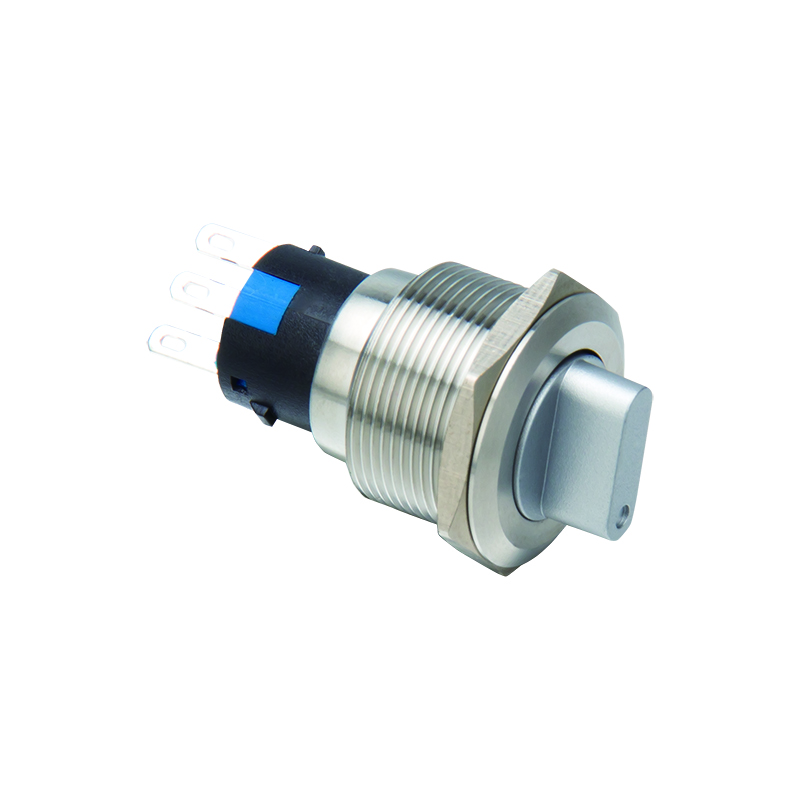

HJ22A-C/Y/Q
Description
Selector Switch 22A-CY Series is designed for versatility and reliability, this selector switch is ideal for applications that require seamless switching between two or more circuits.
Parameters
|
Switch rating |
Current: 3A |
Mechanical life |
More than 100,000 times |
|
Electrical life |
More than 50,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3N-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP40 |
Terminal type |
Wiring pins (2.8X9mm) |
|
Mounting hole size |
19mm,22mm |
||
|
Material |
Button: Stainless steel |
||
|
Body:Stainless steel |
|||
|
Base: PA |
|||
|
Contact: Silver alloy |
|||
Note:
*Two position self-locking, lock by rotating to the right, reset by rotation

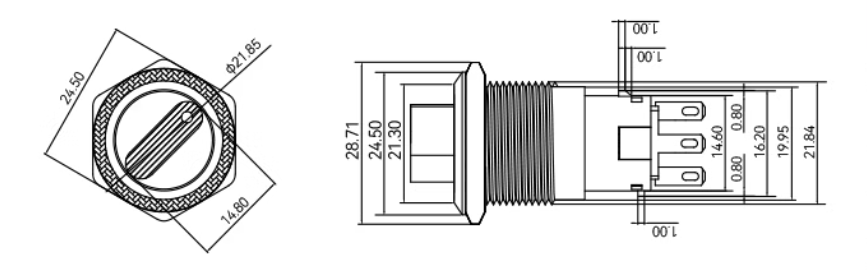

Selector Switch Drawing
Features
1.22A-CY Series Selector Switch feature a 22mm mounting hole size and are designed to fit a variety of panel configurations, making installation a breeze.
2.Its rugged design features a 3A switch current rating, ensuring it can meet the demands of your electrical system without compromising performance. Whether you need to switch between different operating modes or manage multiple circuits, this selector switch gets the job done.
3.22A-CY Series Selector Switches are constructed from high-quality stainless steel and are not only durable, but also have a stylish, professional appearance that will complement any control panel. Stainless steel material resists corrosion and wear, ensuring your switch remains functional and visually appealing over time.
4.Selector switches 22A-CY Series can operate in two- or three-position modes, giving you the flexibility to choose the configuration that best suits your needs. This adaptability makes it ideal for a variety of applications, from industrial machinery to consumer electronics.
