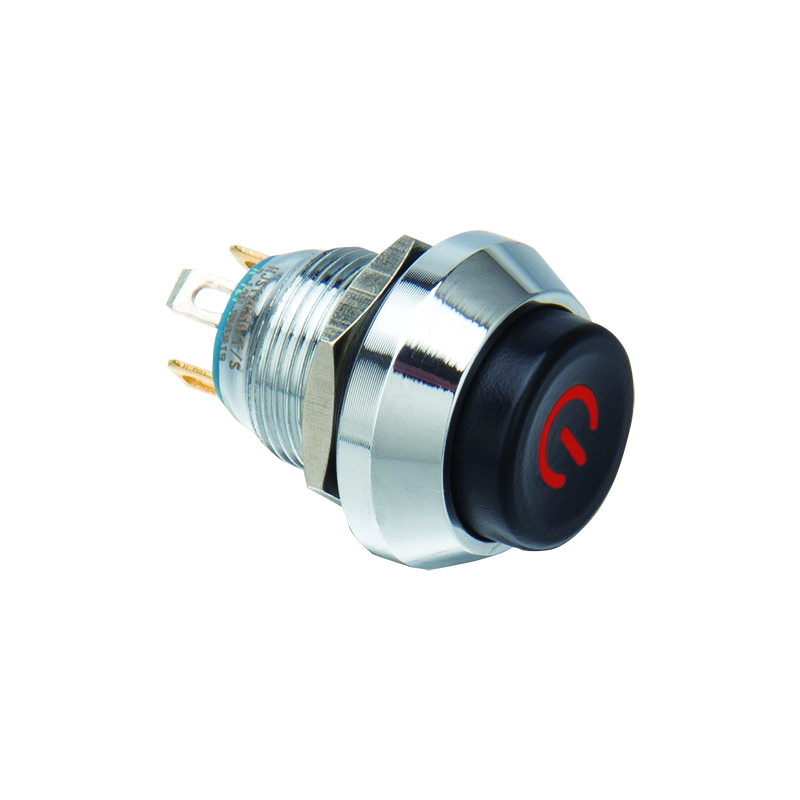

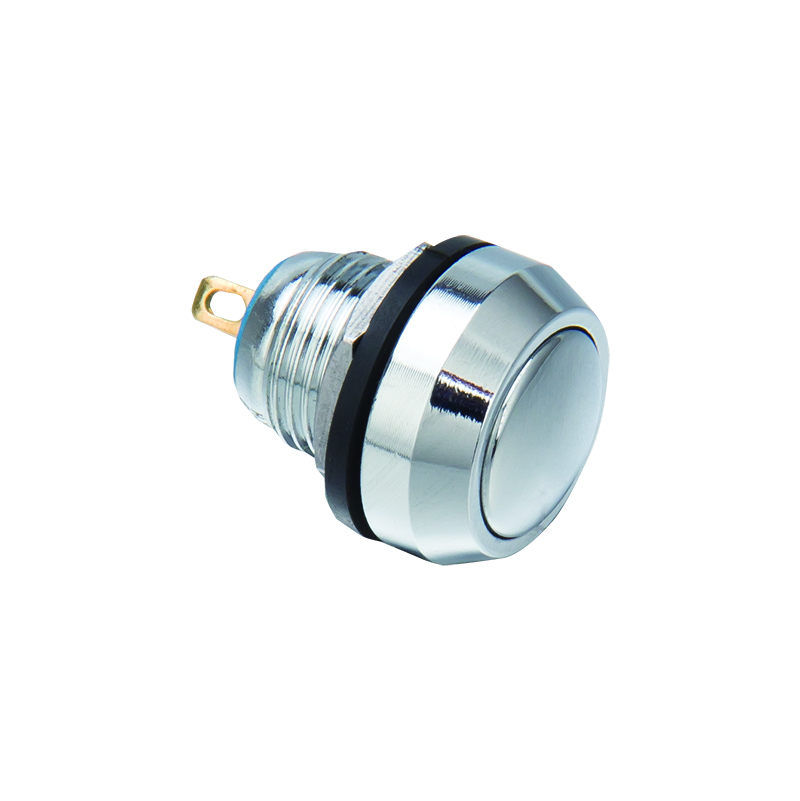

Round Metal Push Button Switches 12C Series
-
HJ12C/S
-
HJ12C/T/S
-
HJ12C/D1/S
-
HJ12C/T/D3/S
-
HJ12C/D1/S
-
HJ12C/S
Description

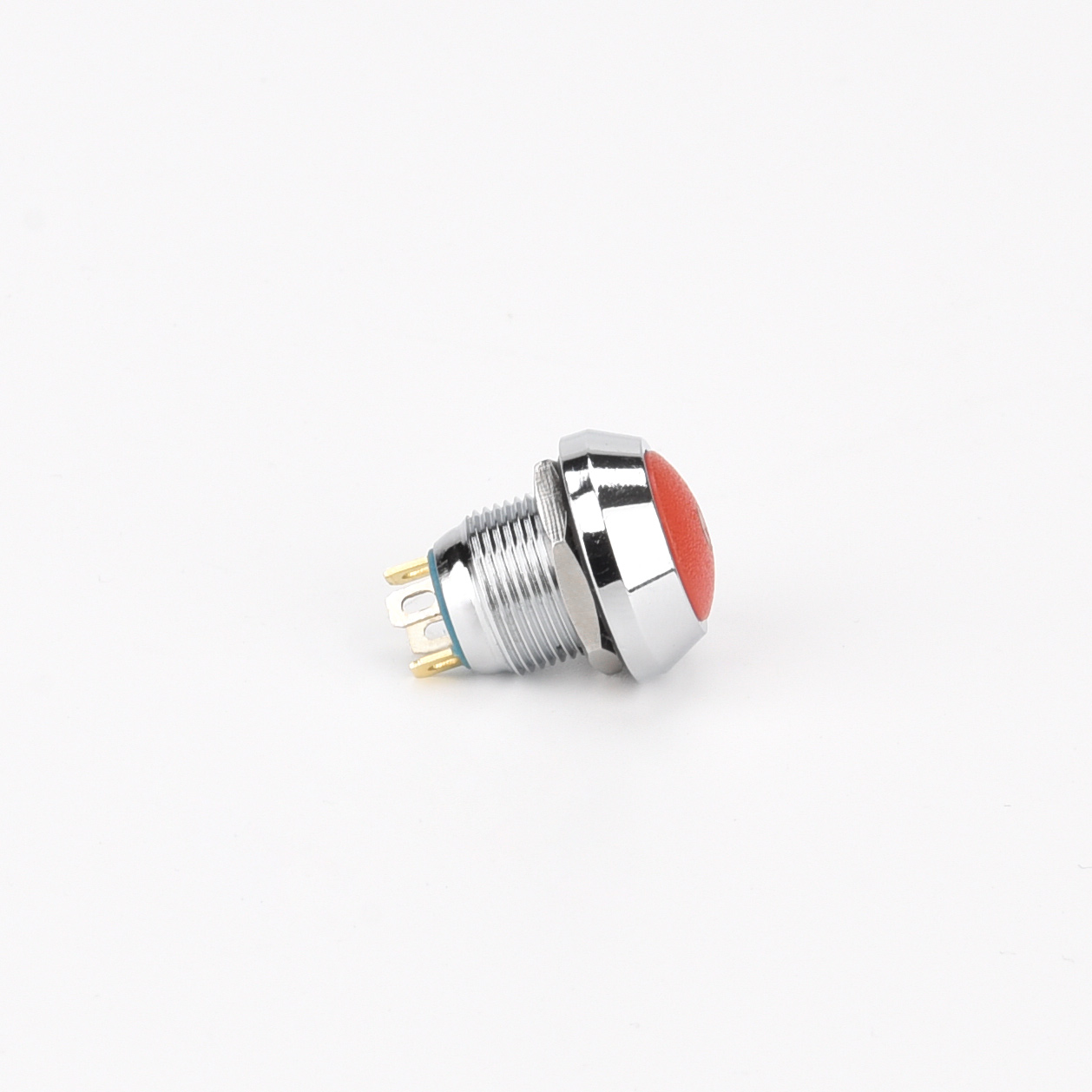

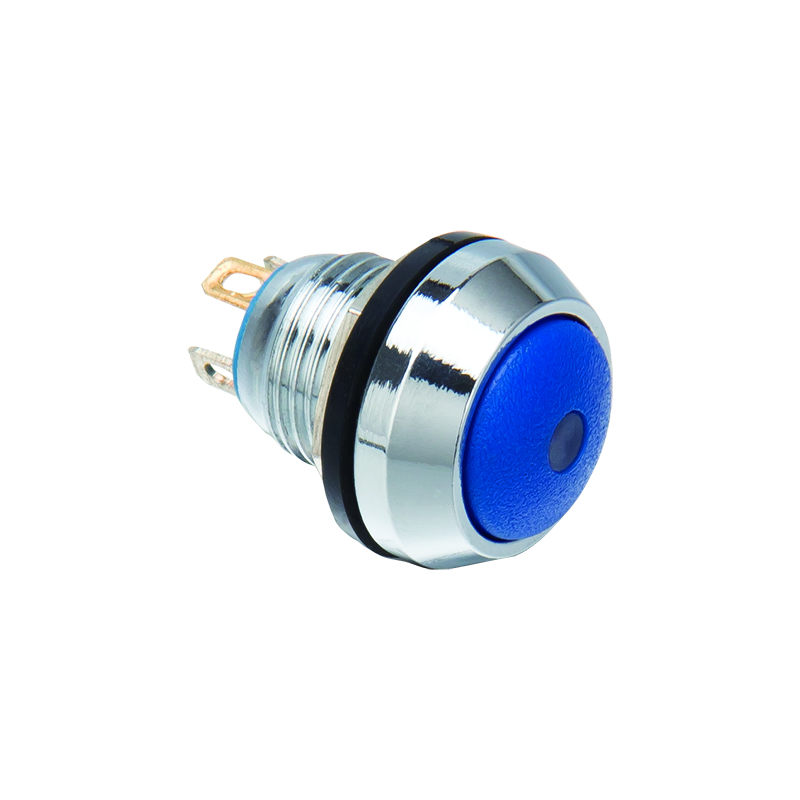

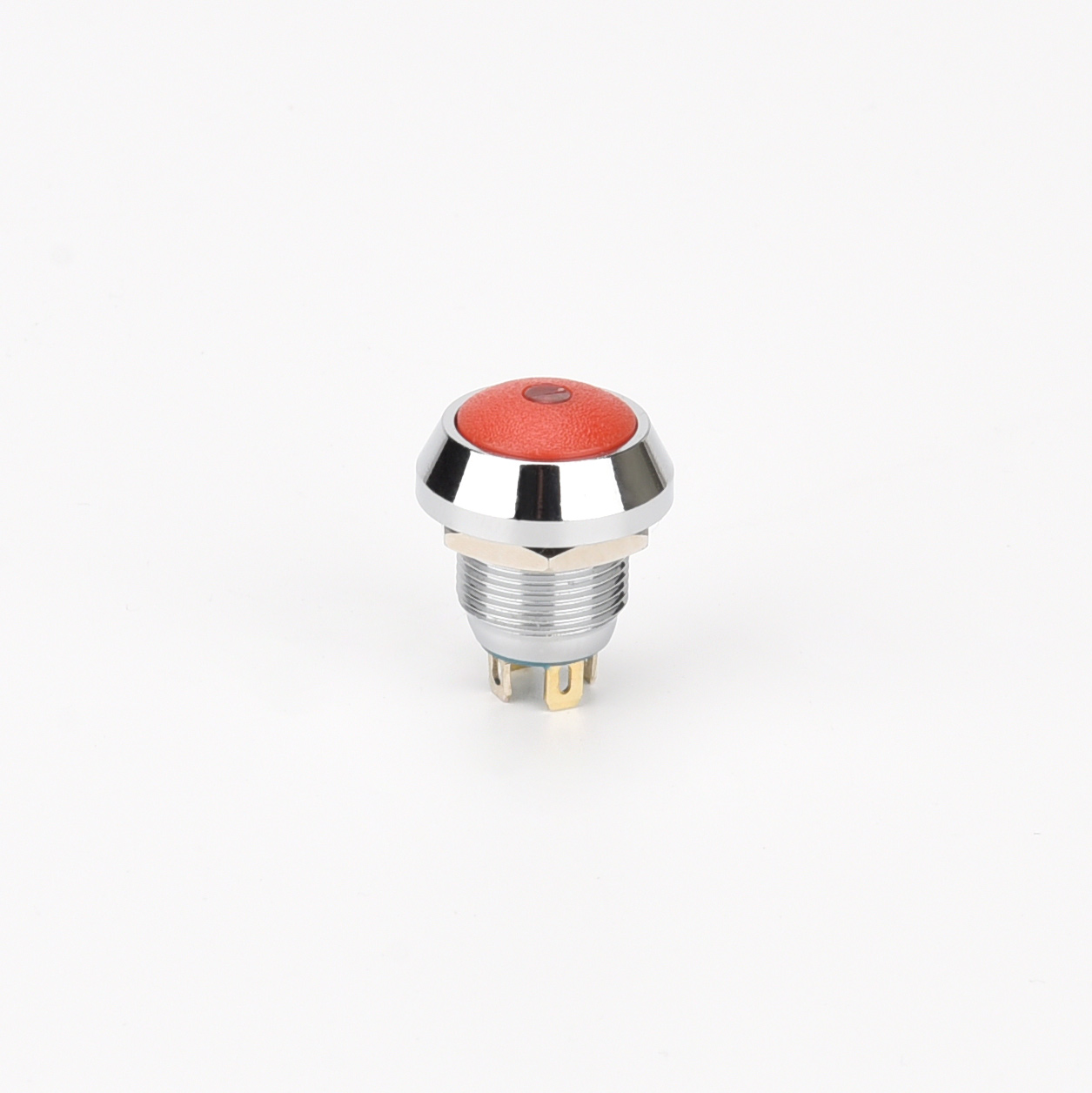

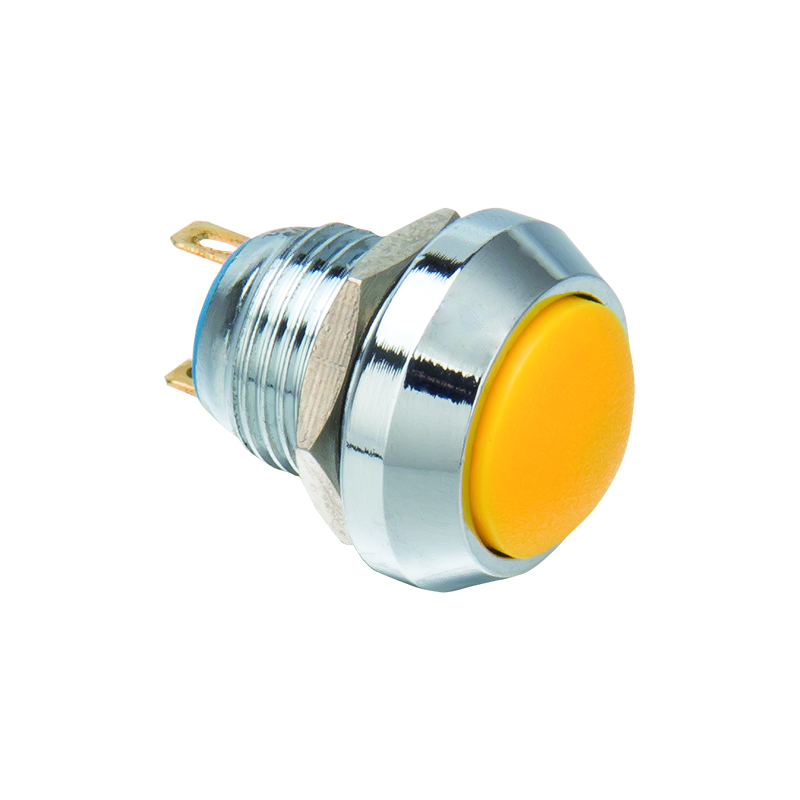

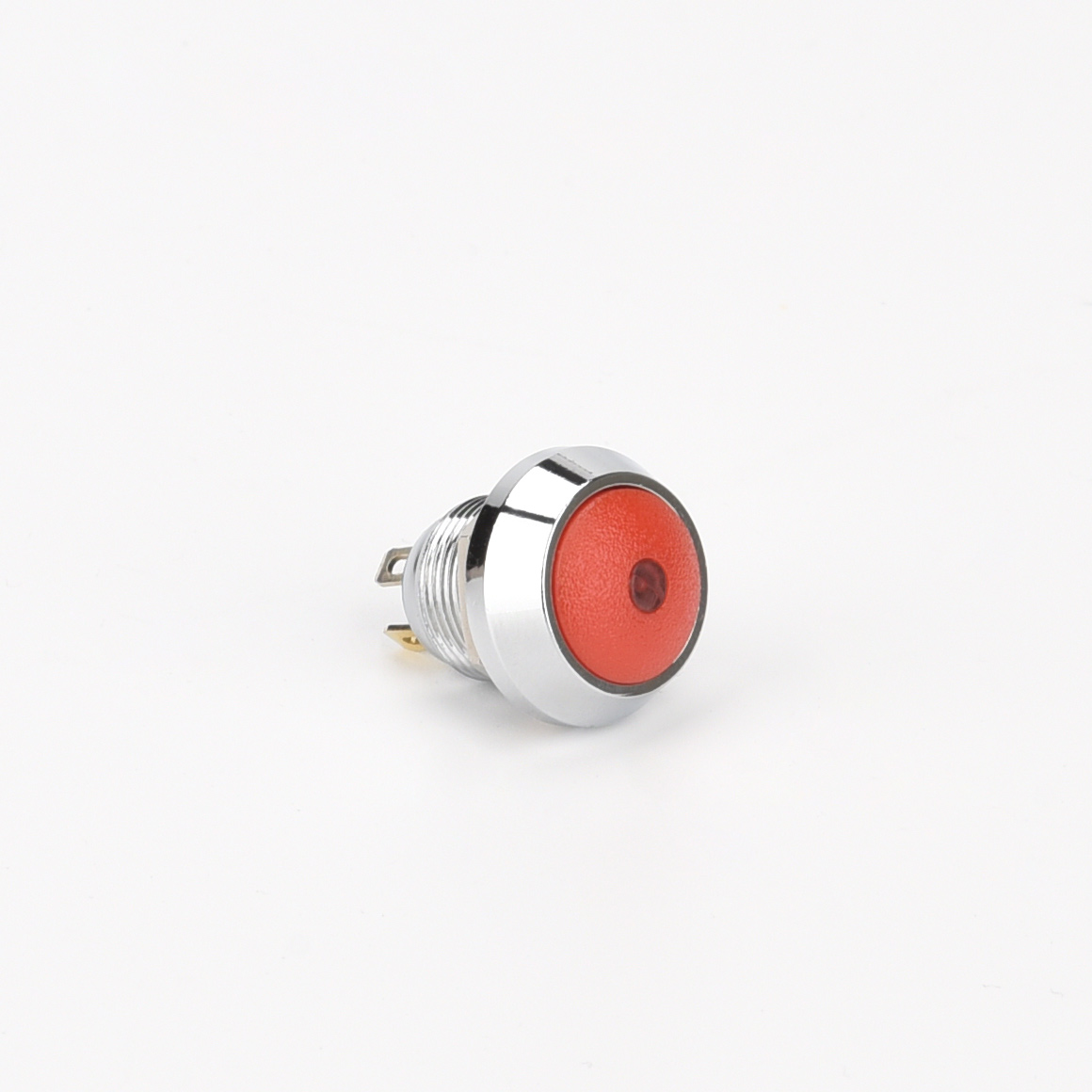

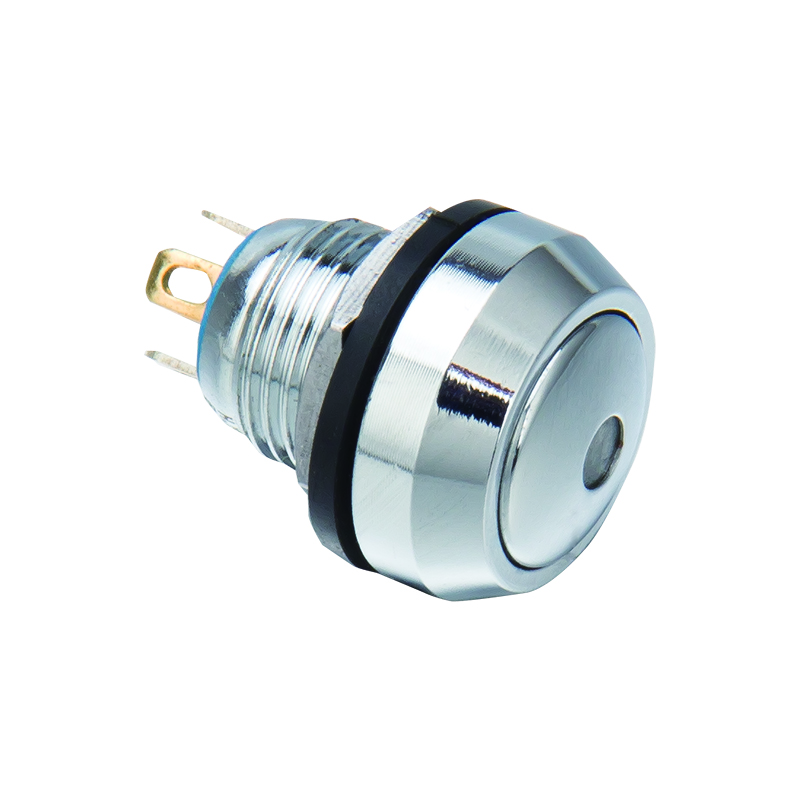

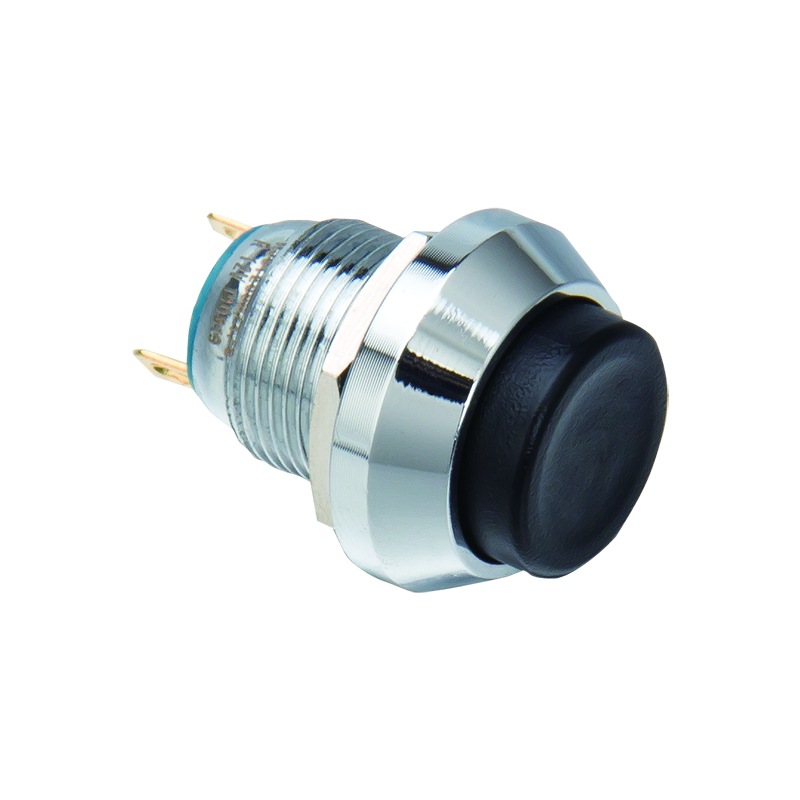

Round Metal Push Button Switch 12C (PBS-33B) Series. Designed for versatility and durability, this mini push button switch is the perfect solution for a variety of applications, from industrial machinery to consumer electronics.The round push button switch has a stylish spherical head shape that not only enhances its aesthetics but also ensures ease of use.
Parameters
|
Switch rating |
Current: 2A,Voltage:36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 100MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (3.7X2.8mm) |
|
Material |
Button: PC/Stainless steel/Nickel Plated Brass |
LED Light |
LED color:
|
| Body:Stainless steel/Nickel Plated Brass |
Rated current: 3 to 48V About 15mA 110 to 220V about 2mA |
||
| Base: PA |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Contact: Gold plated contact |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.
Round Metal Push Button Switches Drawing
Features
1.Spherical or high head shape
2.Waterproof IP65 or IP67
3.Max.Current: 2A
4.Gold plated contact,it has good conductivity, thermal conductivity, and soldering properties

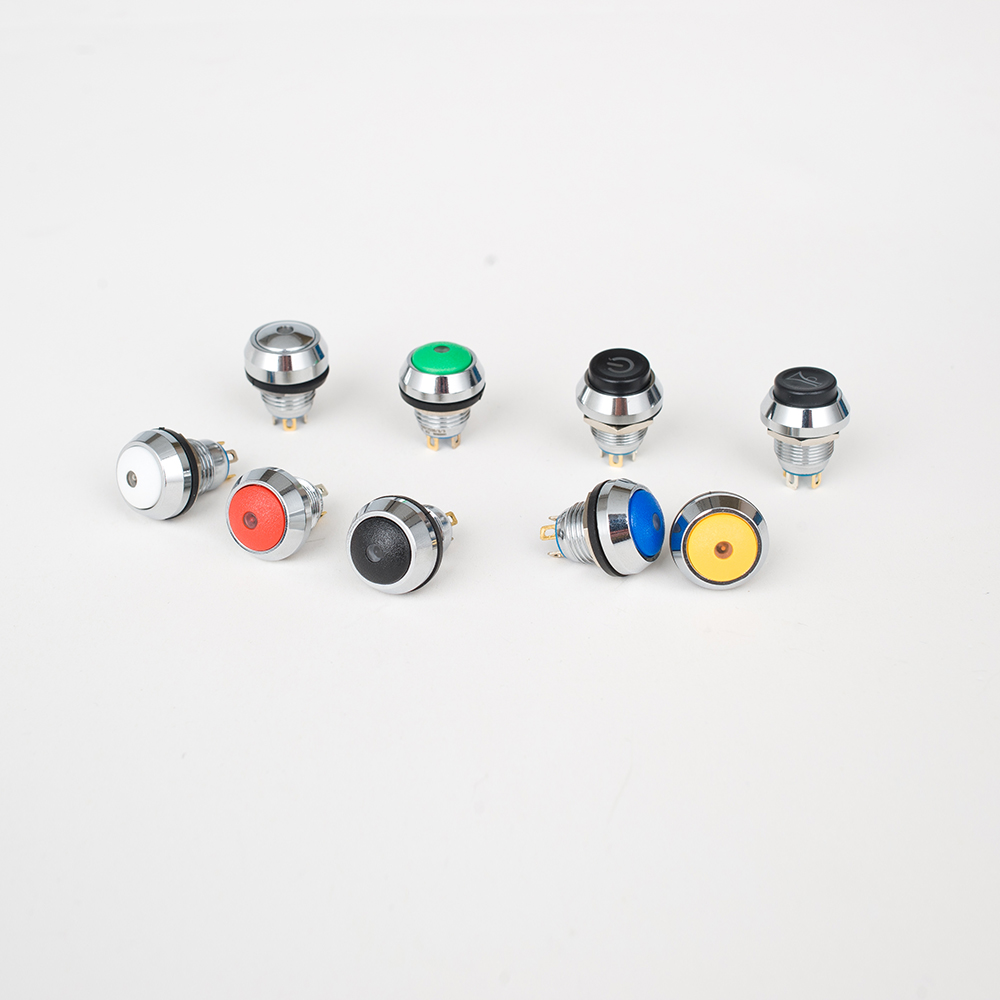

5.Multi color button surface
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
