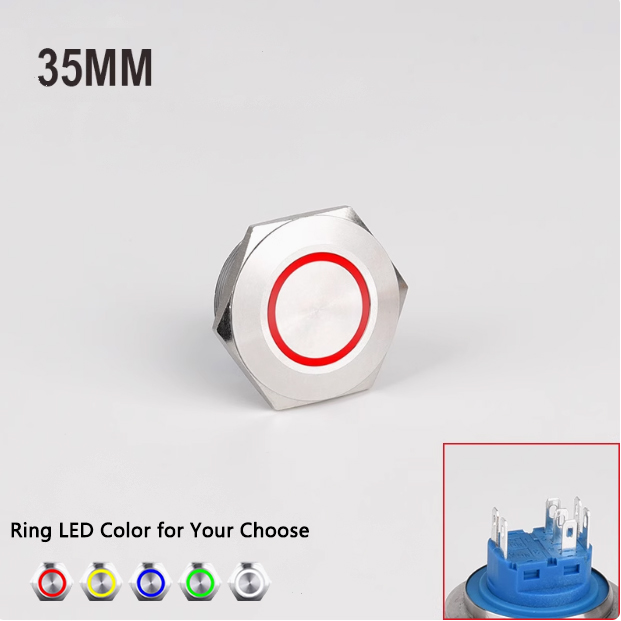

Ring Led Push Button 35A2 Series
Description
Ring Led Push Button 35A2 Series, a cutting-edge LED illuminated push button switch designed for functionality and style. Ideal for a variety of applications from industrial machinery to home automation, this versatile switch ensures you have the control you need at your fingertips.
Parameters
|
Switch rating |
Current: 3A |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 100,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK09 |
Terminal type |
Wiring pins (2.8X6.5mm) |
|
Material |
Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
LED Type: Two way LED beads(AC and DC universal) |
||
| Contact: Silver alloy |
LED life: 40000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

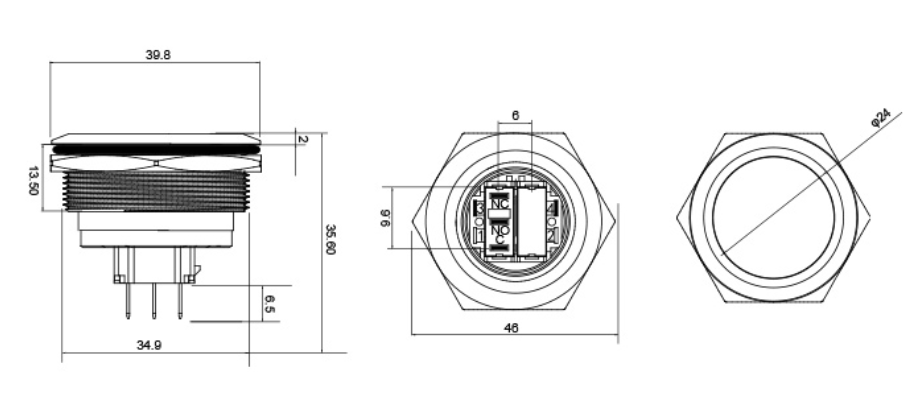

Ring Led Push Button Drawing
Features
1.Waterproof rating of IP65, making it ideal for wet and dusty environments. Whether you’re working in a workshop, outdoors, or in a high-humidity area, this switch is built to withstand the elements, ensuring reliable performance every time.
2.Mounting hole size of 35mm, the Ring LED Button is easy to install and blends seamlessly into your existing setup.
3.With a switching current of 3A, the Ring LED Button provides a reliable and efficient solution to your electrical needs. Lighting features enhance visibility, making positioning and operation easy even in low-light conditions.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
