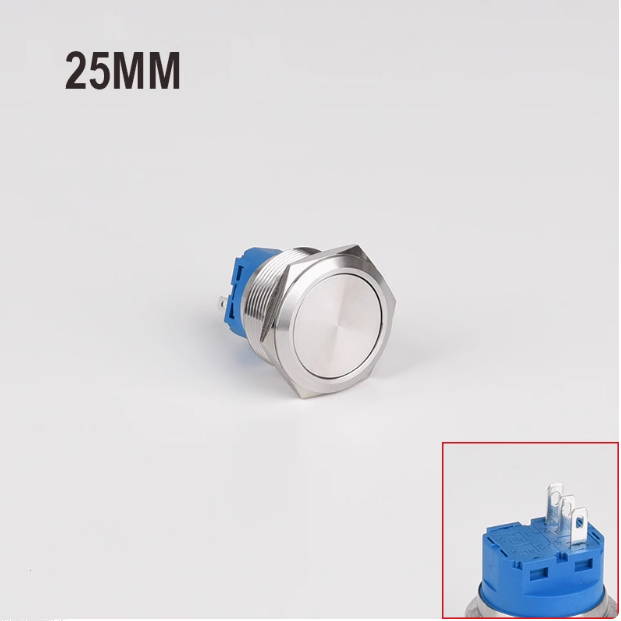

Reset Push Button Switch 25A2 Series
Description
The reset push button switch 25A2 Series is a versatile and reliable solution designed for industrial and commercial applications. This self-latching push button switch is designed to provide seamless operation, ensuring your equipment runs smoothly and efficiently.
Parameters
|
Switch rating |
Current: 3A |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 100,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK09 |
Terminal type |
Wiring pins (2.8X6.5mm) |
|
Material |
Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
LED Light |

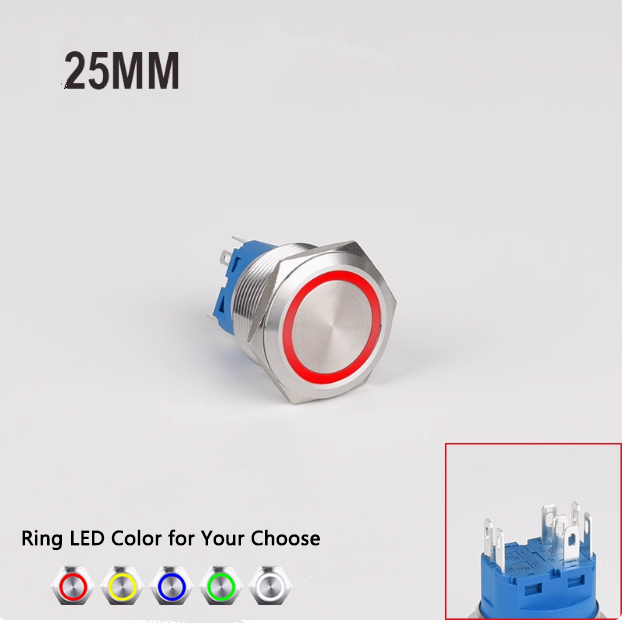

LED color:
Three or two colors can be customized |
| Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
LED Type: Two way LED beads(AC and DC universal) |
||
| Contact: Silver alloy |
LED life: 40000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

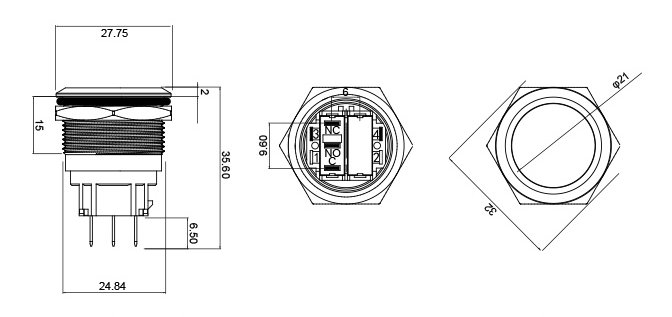

Reset Push Button Switch Drawing
Features
1.The reset push button switch has a mounting hole size of 25 mm, making it easy to install in a variety of settings, making it ideal for panel mounting and machine control.
2.3A of switching current, allowing it to handle a variety of electrical loads with ease. Whether you’re resetting your system or activating a specific feature, this switch delivers reliable performance every time.
3.It is made of high quality materials and are available in stainless steel, Nickel Plated Brass and aluminum oxide. This not only enhances its durability but also provides a stylish and professional look that blends seamlessly into any environment.

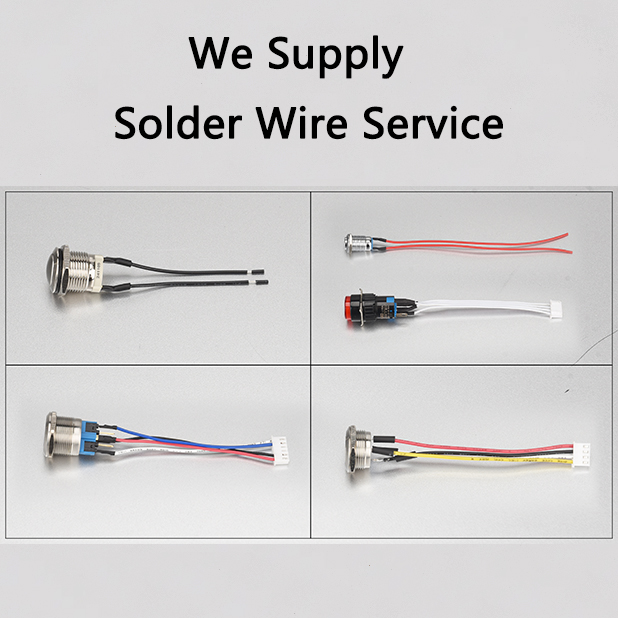

Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
