Push Switch 22C Series

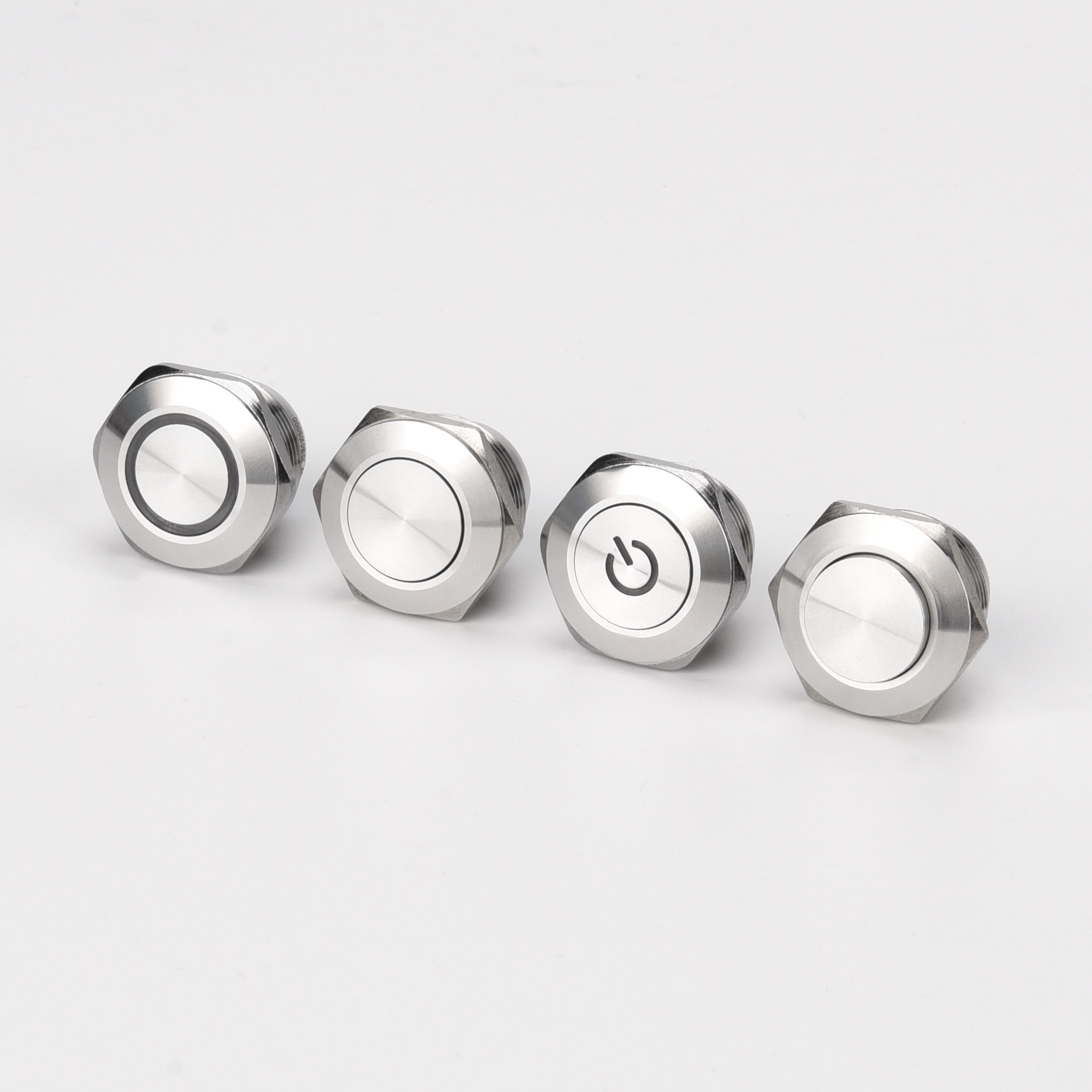

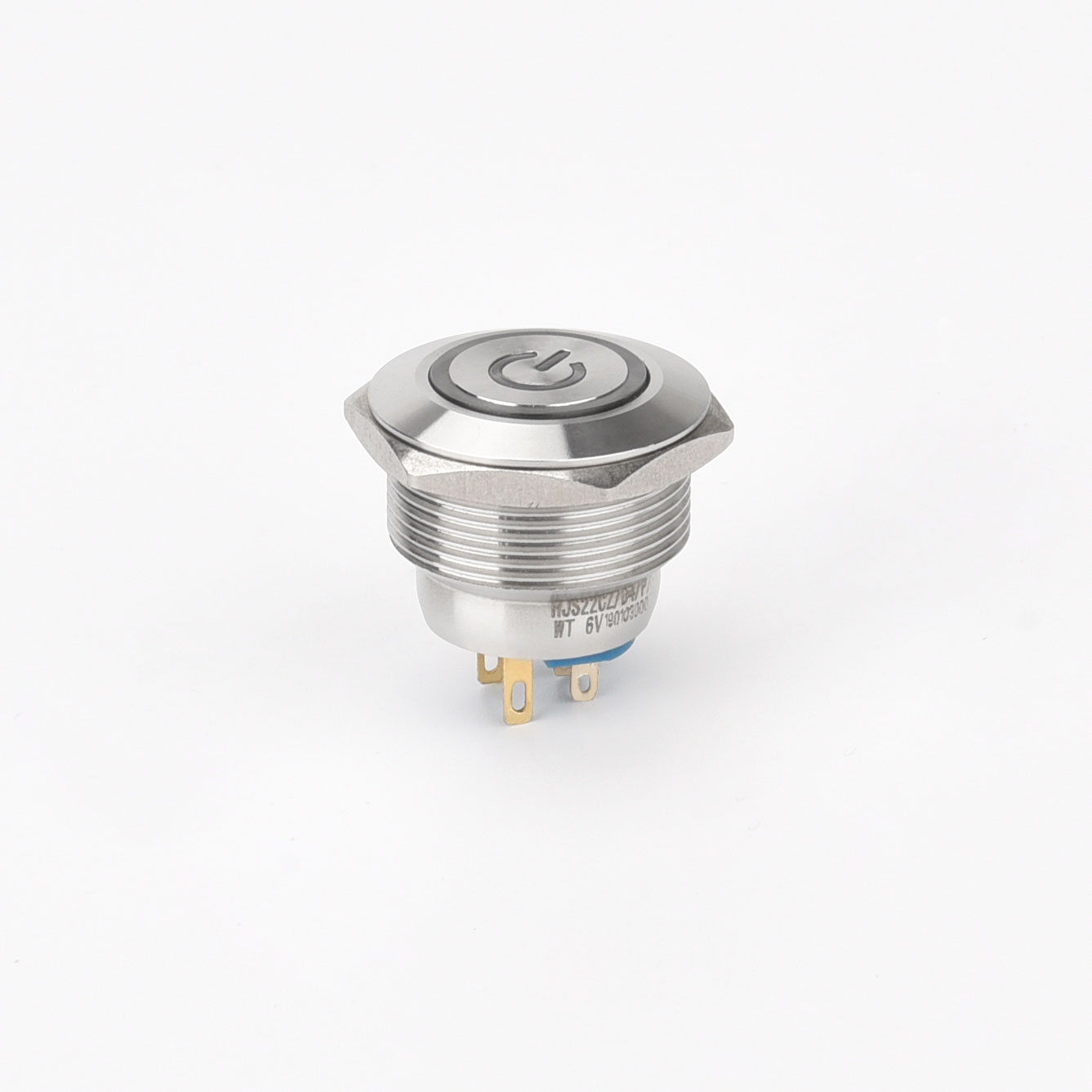

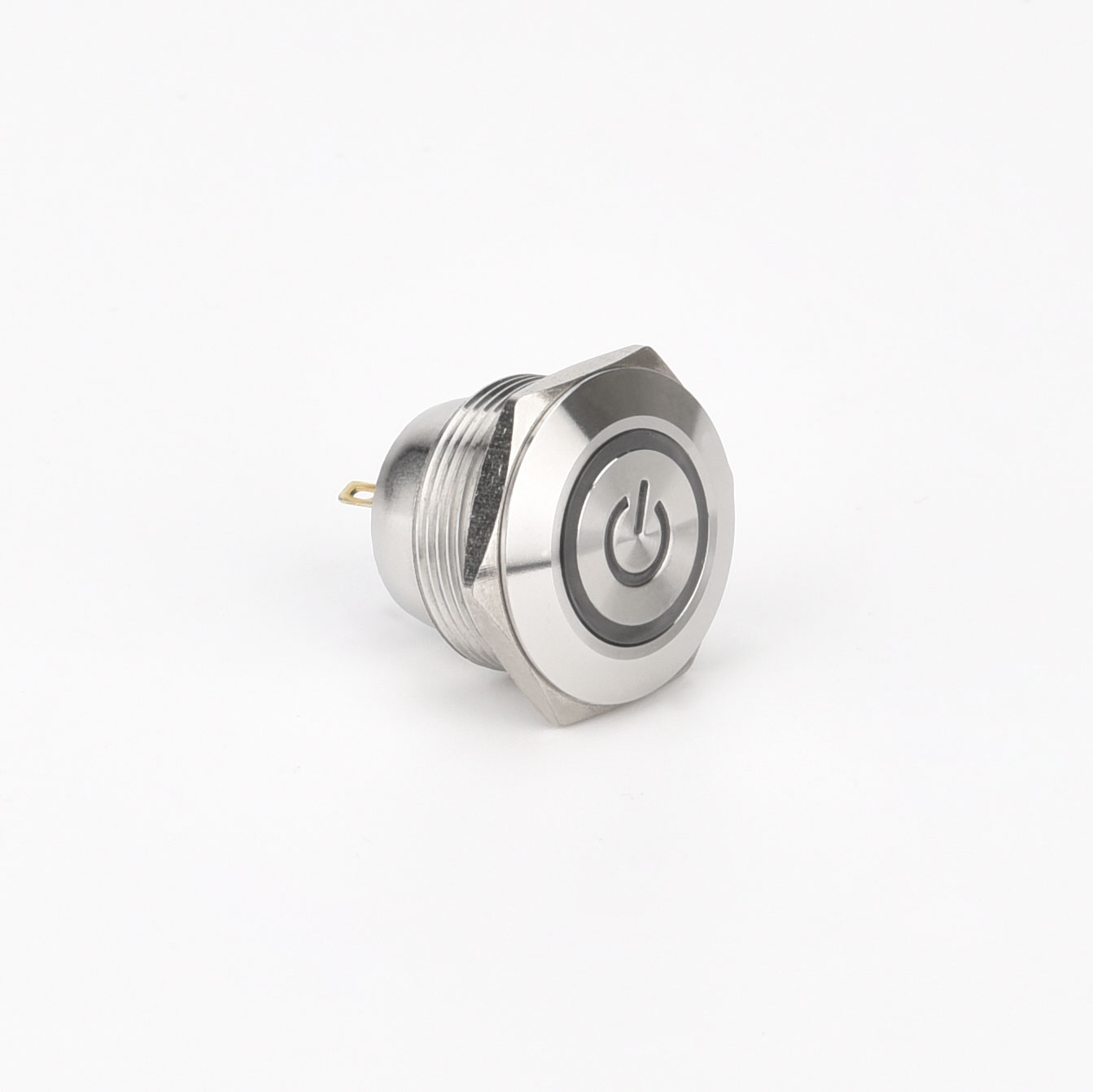

Push Switch 22C Series is a small push button used for panel mounting.The mounting hole size is 22mm and the current can be reach to 2A.

●Switch current:2A

●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized

●Head shape:Flat Head/High Flat Head/Spherical

●Operation mode: Momentary/Latching

●Contact structure:1NO

●LED Color: Red/Green/Yellow/Blue/White

●Protection level: IP65/IP67 IK10

If you need customized,please feel free contact HS!

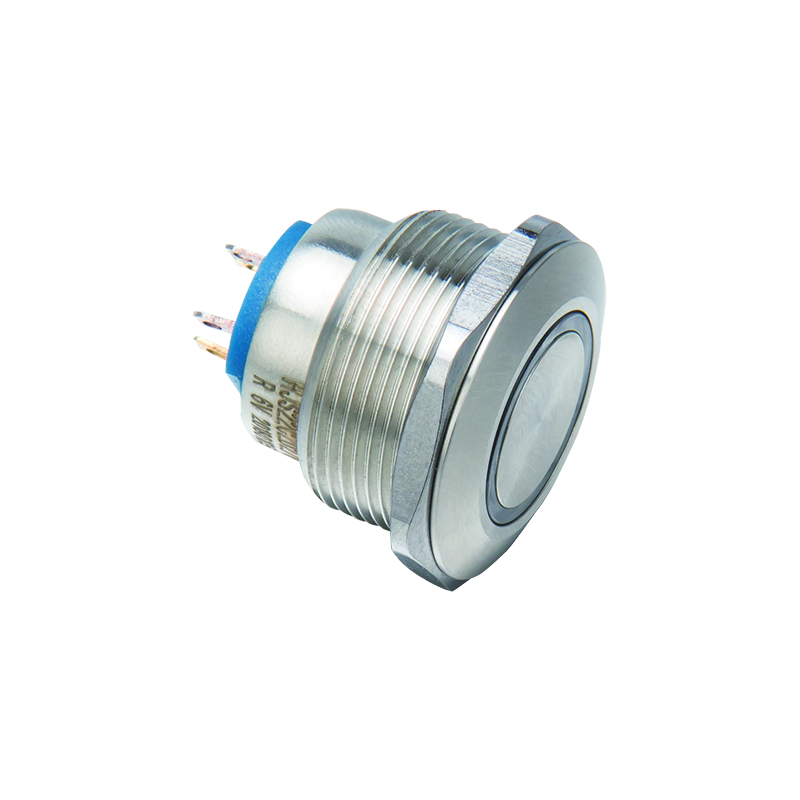

HJ22C-D2-P-S

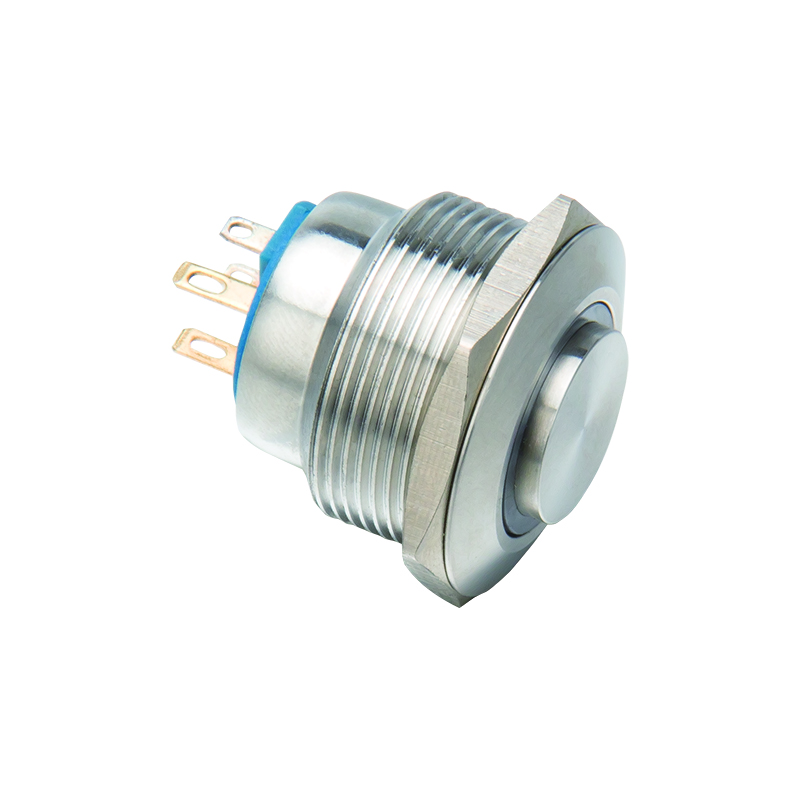

HJ22C-D2-T-S

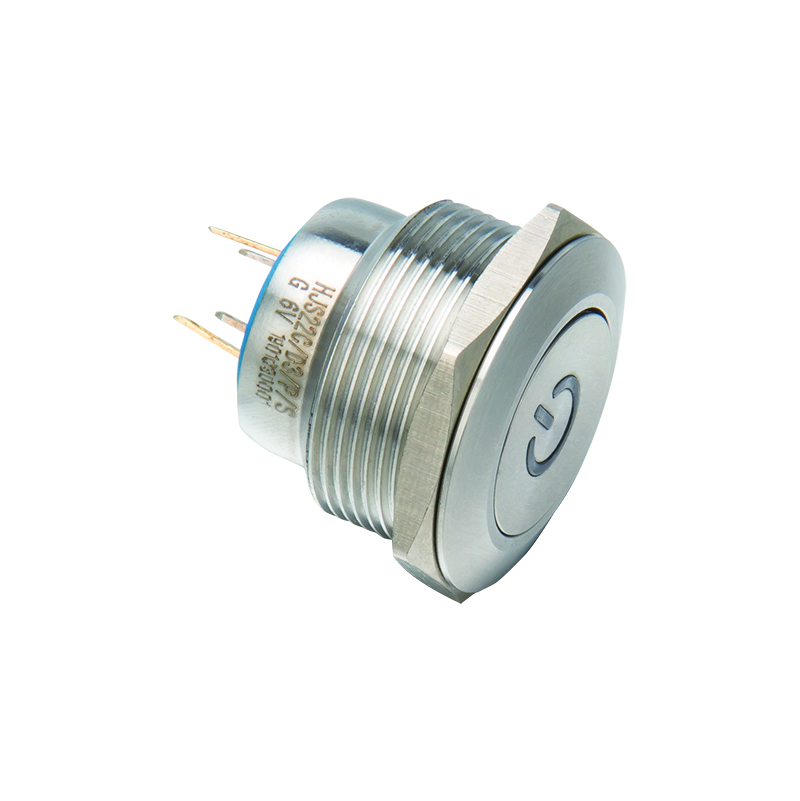

HJ22C-D3-P-S

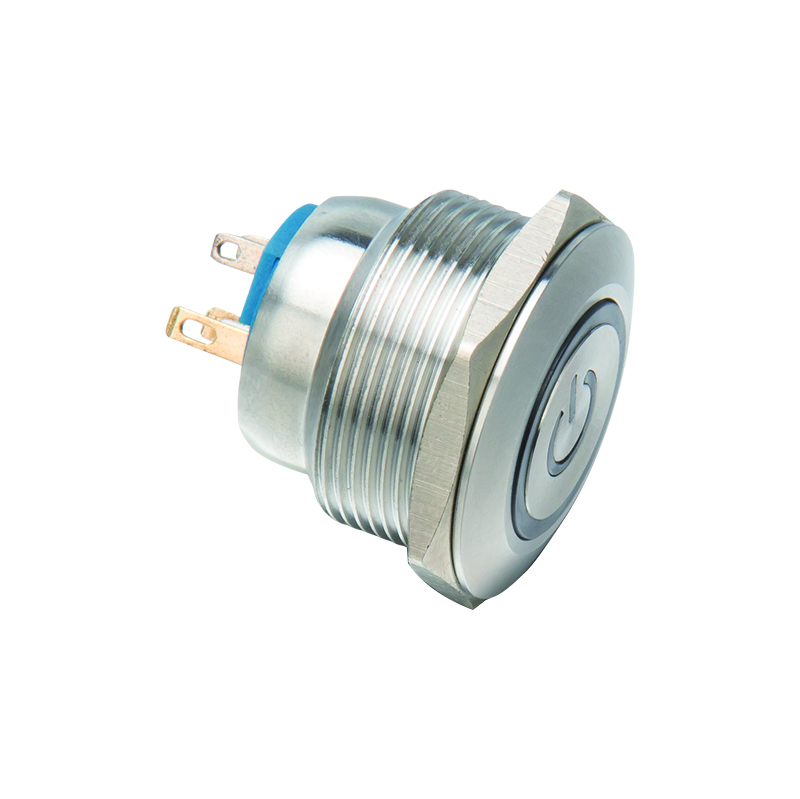

HJ22C-D4-P-S

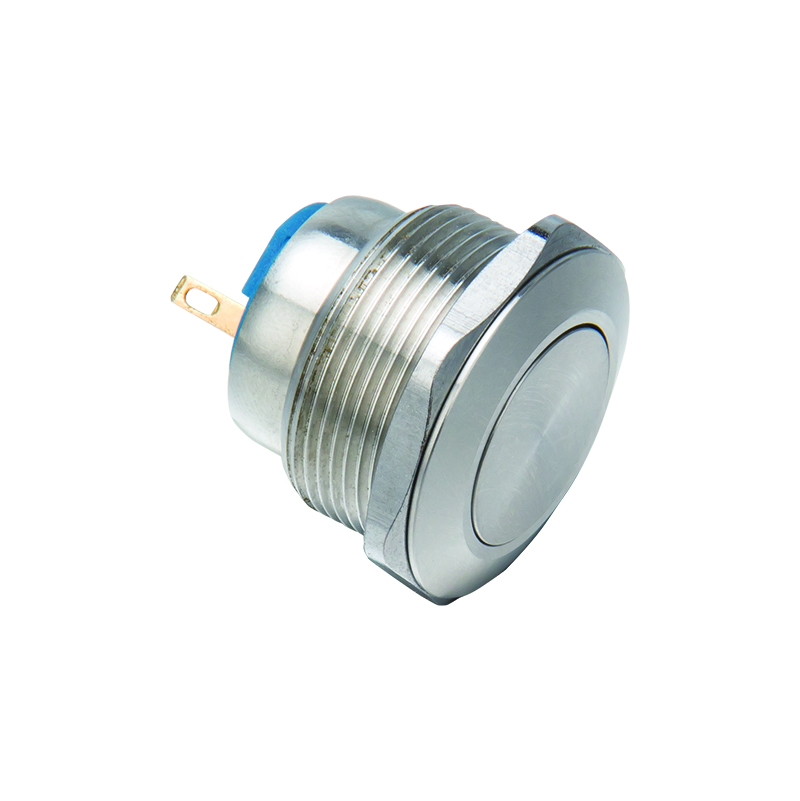

HJ22C-P-S

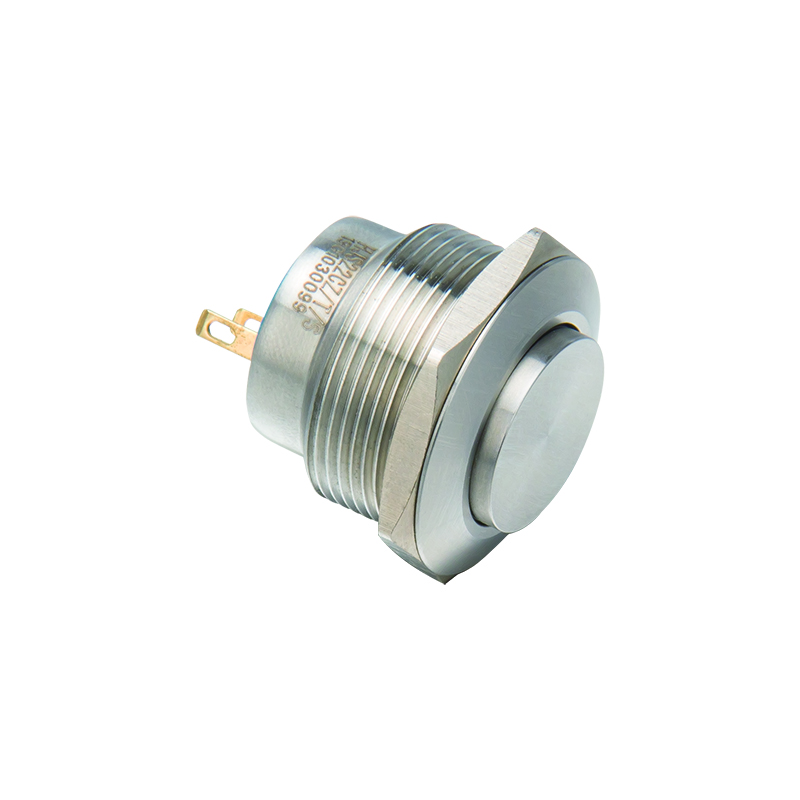

HJ22C-T-S

Ip65 Push Button Switch

Metal Push Button Selection Guide

Description

Push Switch 22C Series is a small push button used for panel mounting.The mounting hole size is 22mm and the current can be reach to 2A.

Parameters

Mounting hole size	16mm,19mm,22mm	Operation Mode	Momentary,Latching
Switch rating	Current: 2A	Mechanical life	More than 200,000 times
Electrical life	More than 1000,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK10	Terminal type	Wiring pins (2X6mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Gold plated contact		LED life: 40,000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

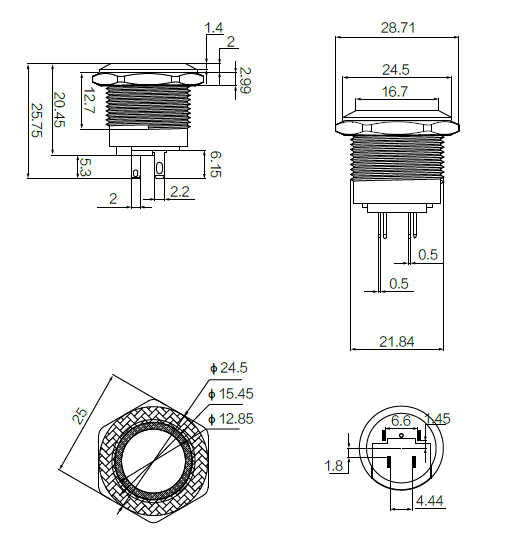

Push Switch 22C Series Drawing

Features

1.The Push Switch 22C Series boasts a mounting hole size of 22mm, making it ideal for installations where space is limited but performance cannot be compromised.

2.The Push Switch 22C Series is crafted from high-quality materials, including stainless steel, nickel-plated brass, and oxidized aluminum. These durable materials ensure longevity and resistance to wear and tear, providing you with a switch that stands the test of time.
