Push Buttons Plastic HL12C Series
-

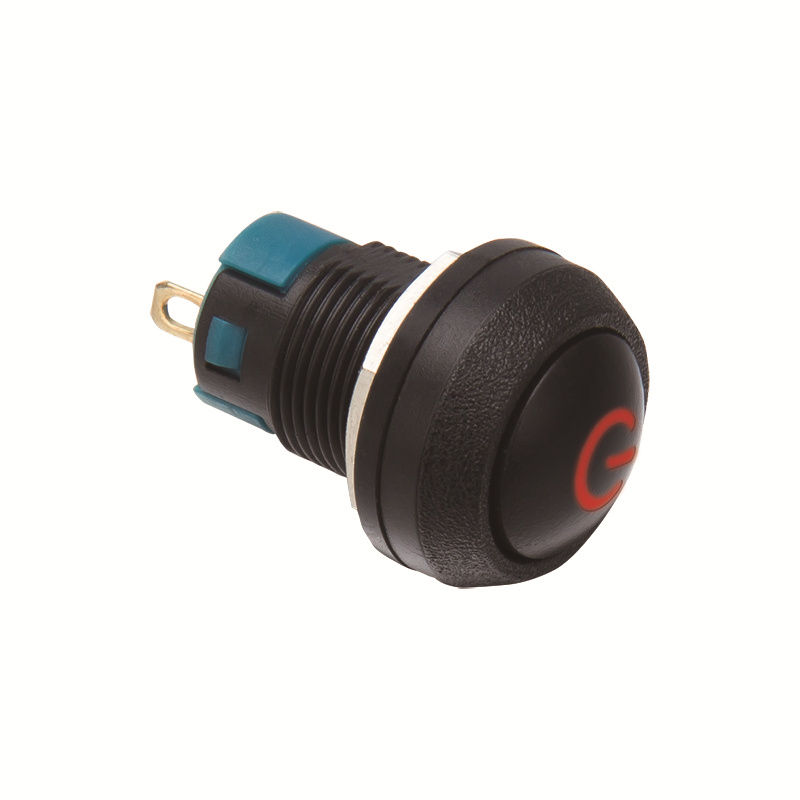

HL12C-D3/S
-

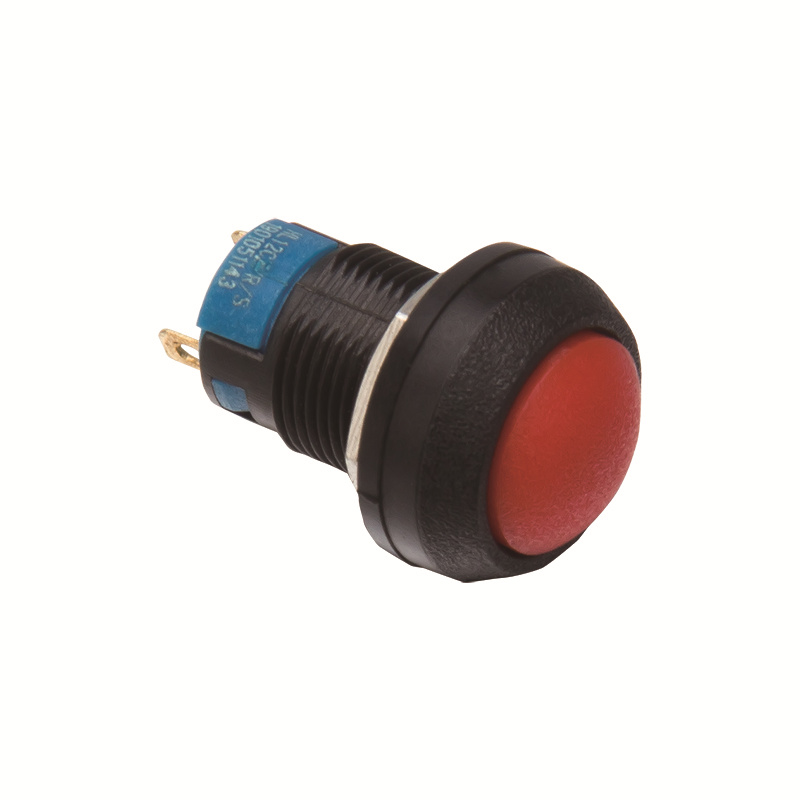

HL12C/S
-

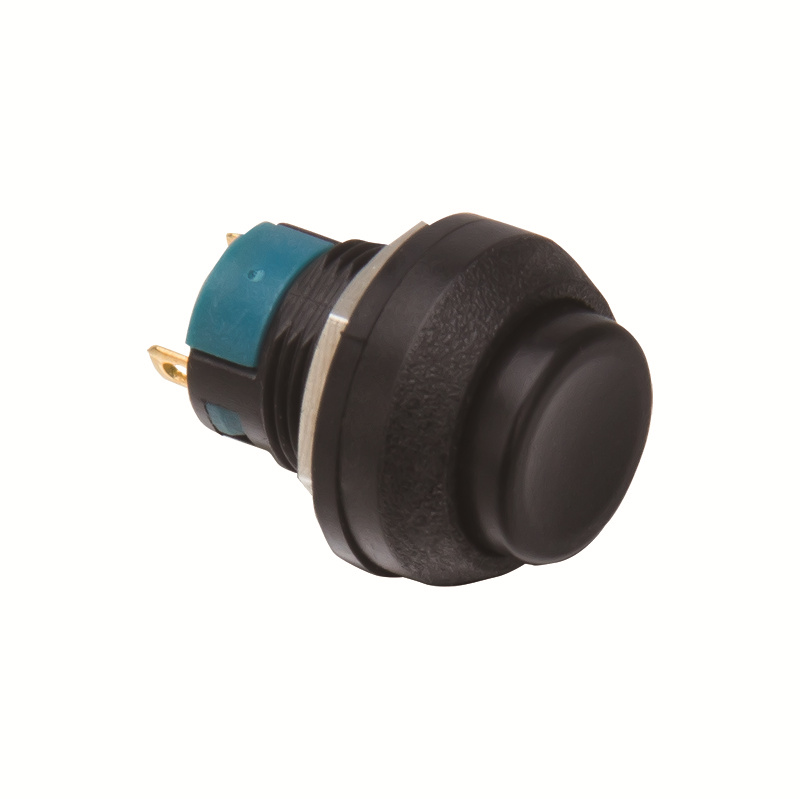

HL12C/T/S
-

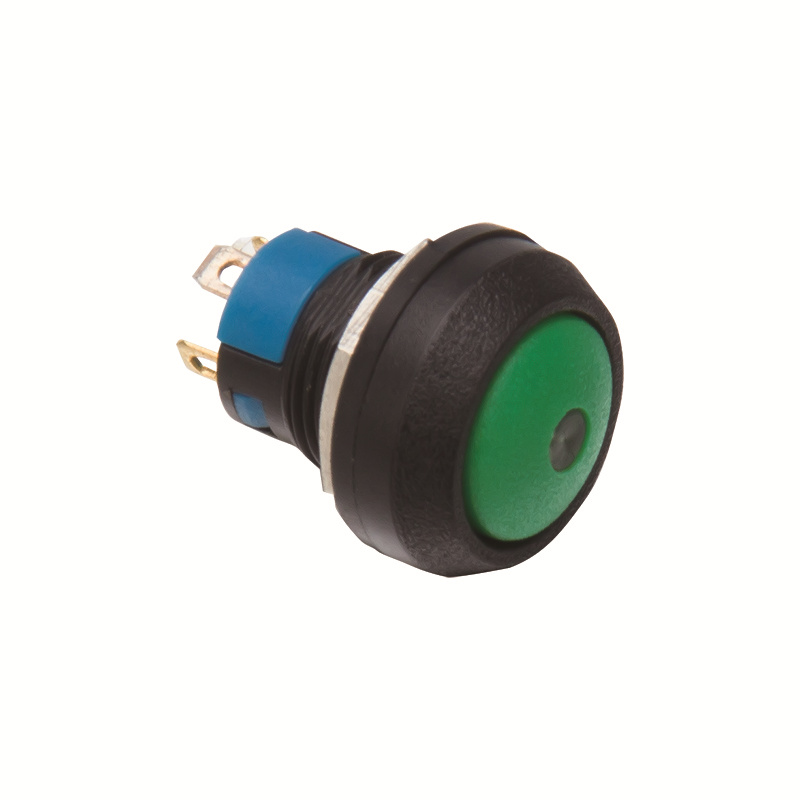

HL12C-D1/S
-

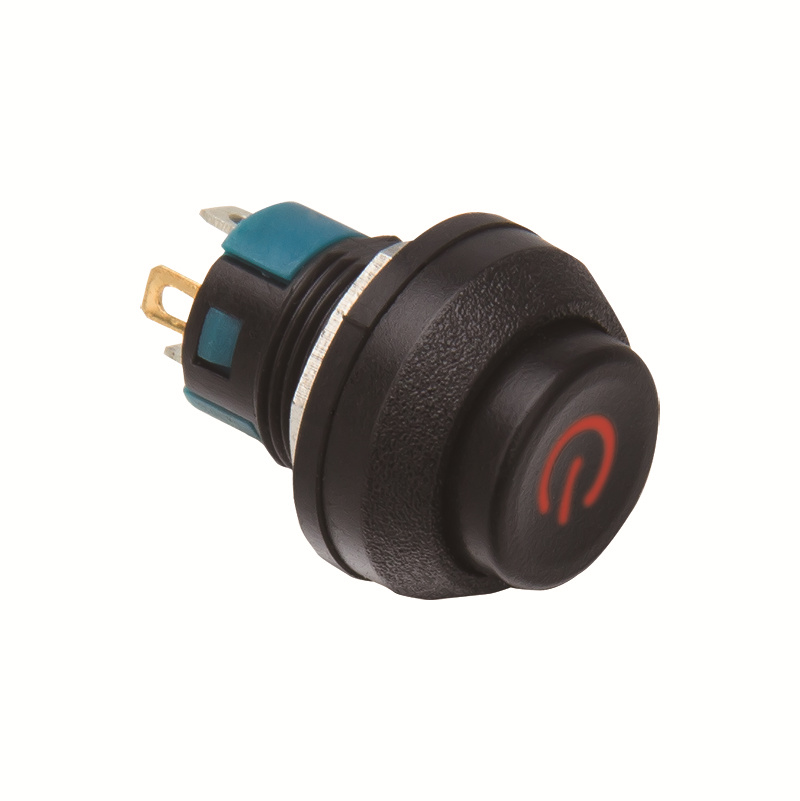

HL12C/T/D3/S
Description
The Push Buttons Plastic 12C (PBS-33B) Series, the perfect solution for your electronic control needs. Designed with versatility and durability in mind, these plastic push button switches are important components in applications ranging from consumer electronics to industrial machinery.
Parameters
|
Switch rating |
Current: 2A,Voltage:36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 100MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (3.7X2.8mm) |
|
Material |
Button: Plastic |
LED Light |
LED color:
|
| Body: Plastic |
Rated current: 3 to 48V About 15mA 110 to 220V about 2mA |
||
| Base: PA |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Contact: Gold plated contact |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

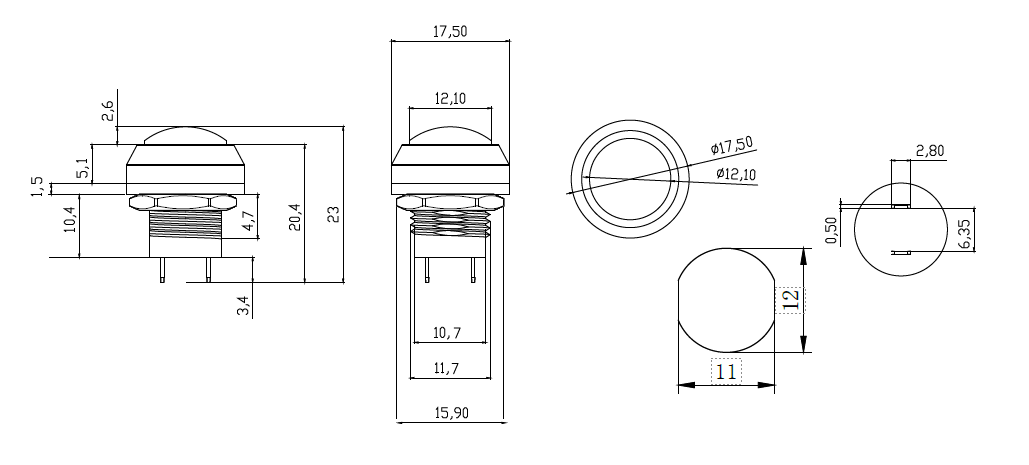

Push Buttons Plastic Drawing
Features
1.Mounting hole size of 12 mm and can be easily integrated into a variety of devices and panels. Whether you are designing a new product or upgrading an existing one, these switches provide a seamless fit and reliable performance.
2.The switches are rated at 2A and are capable of handling moderate electrical loads, ensuring your equipment runs smoothly and efficiently.
3.The PBS-33B series is constructed from high-quality plastic to withstand the rigors of daily use. Not only does the material offer excellent durability, it also offers a lightweight solution that doesn’t add unnecessary bulk to your project.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
