Push Button Switch LA38 Series
-

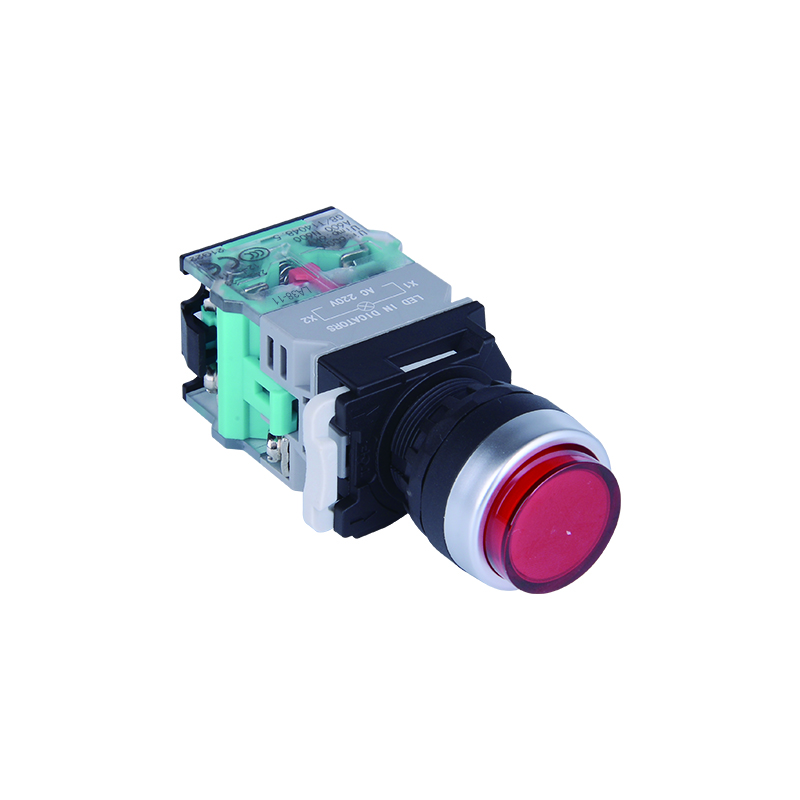

LA38-11GND-Q2
-

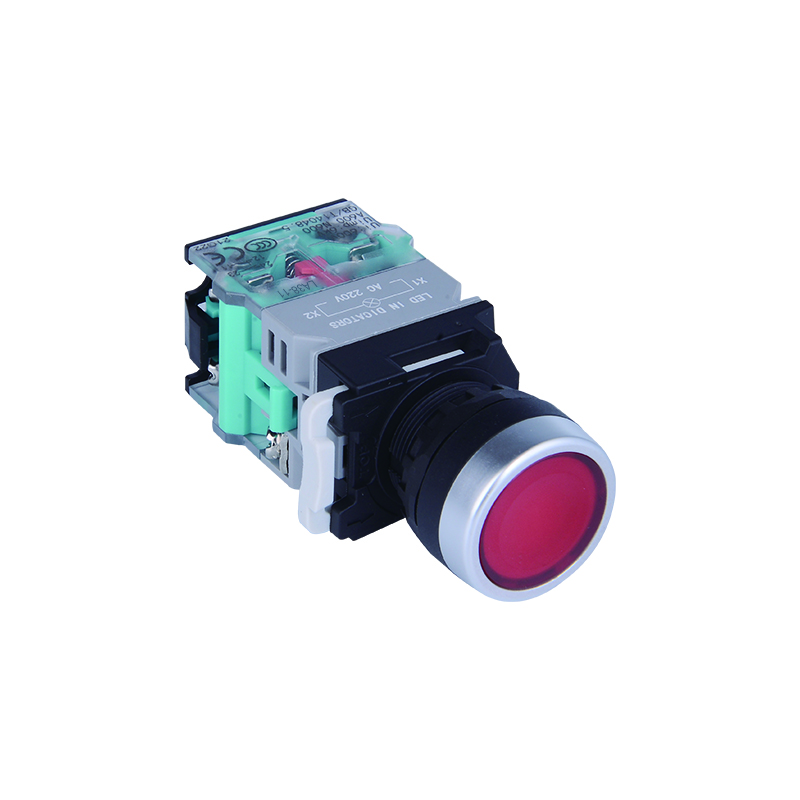

LA38-11PND-Q2
-

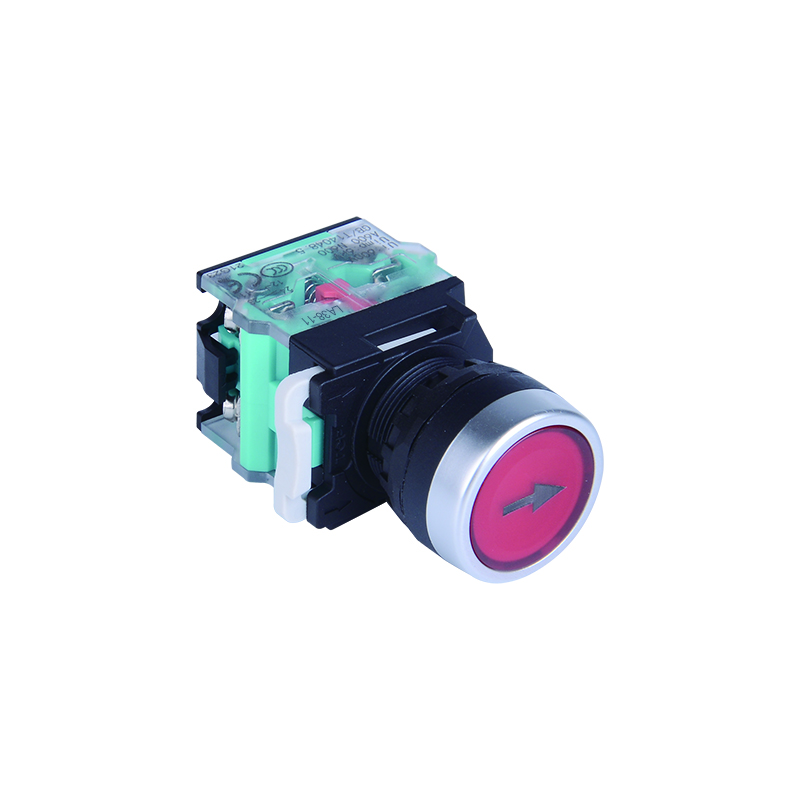

LA38-11PN-Q2/FH
Description
Push Button Switch LA38 Series of guide rod installed in the movable leaf spring makes contacting more stable and consistent, which greatly improves electrical performance stability and life; The wiring pattern plate is embedded for easy installation and hard to lose.The performance parameters of laser printing ensure long-term use without affecting recognition.
Parameters
|
Switch rating |
Current: 10A,Voltage: 600V |
Electrical life |
More than 100,000 times |
||
|
Insulation resistance |
≥ 100MΩ |
Contact resistance |
≤ 50mΩ |
||
|
Power frequency withstand voltage |
1890VAC/50Hz/60s |
Vibration resistance |
Amplitude: about 1.0mm/50Hz |
||
|
Operation temperature |
-25℃ ~+75℃ |
Impact resistance |
＞10g |
||
|
Protection level |
IP40 |
Wiring capacity |
Maximum: 2×1.5mm² or Minimun: 2×0.75mm² insert: 6.3×0.8mm |
||
|
LED type |
Two way LED beads | ||||
|
Rated voltage Ue |
AC/DC 6V |
AC/DC 12V |
AC/DC 24V |
||
|
AC/DC 36V |
AC/DC 48V |
AC/DC 110V |
|||
|
AC/DC 220V |
AC/DC 380V |
||||
|
AC 110V |
AC 220V |
AC 380V |
|||
|
LED color |
Red/Green/Yellow/Blue/White |
||||
|
LED life |
≥ 40000h |
||||

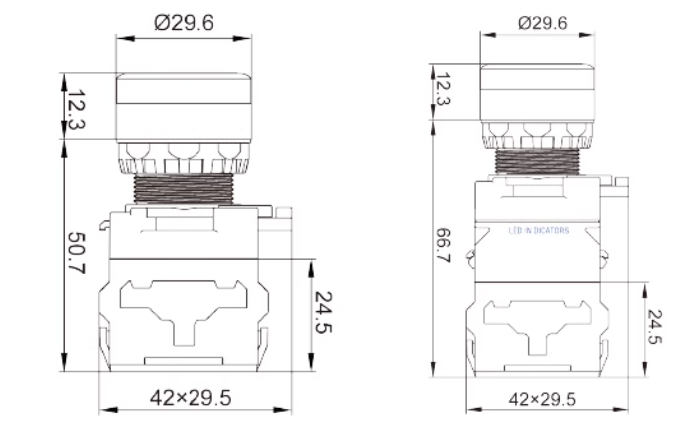

Push Button Switch LA38 Series Drawing
Features
1.Composed of button head, middle and contact , adopting advanced non-fastener latching connection, safe and reliable, easy to assemble and disassemble, installed on the Φ22mm panel by using wrench without any accessories makes the installation more robust and reliable.
2.Using high-quality engineering flame-retardant materials, excellent insulation performance and reliable contact.
3.Comply with standards such as IEC60947-5-1, GB/T14048.5.
4.The contact elements are flat pressing and quick-acting, the contact bases (up to 4)can be combined as required and each contact base can be installed with 2 groups of contact elements,which can meet the requirements of making specific control circuits.
5.Installation aperture: Φ22mm
