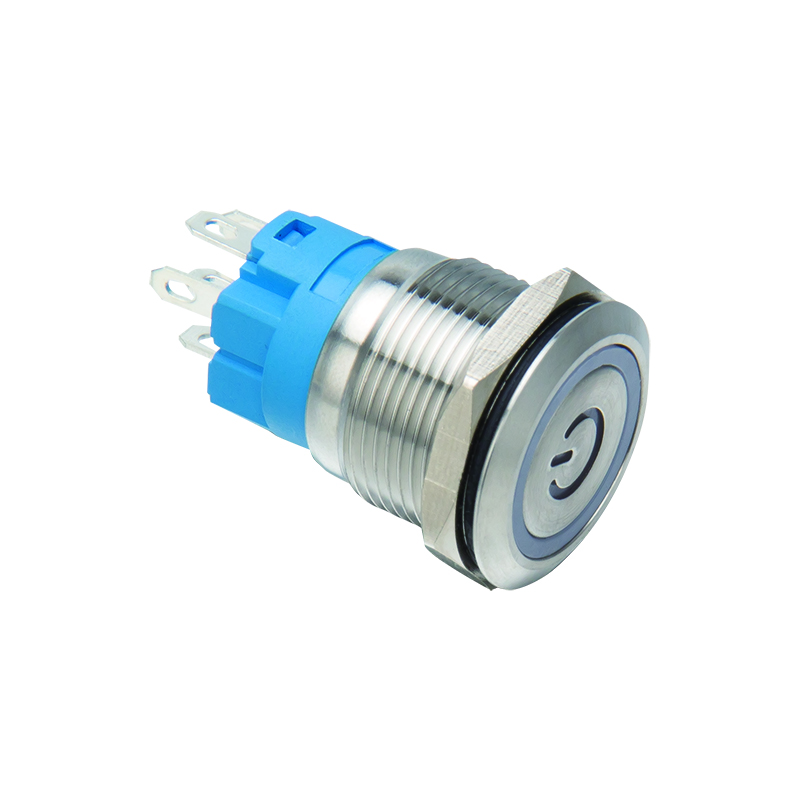

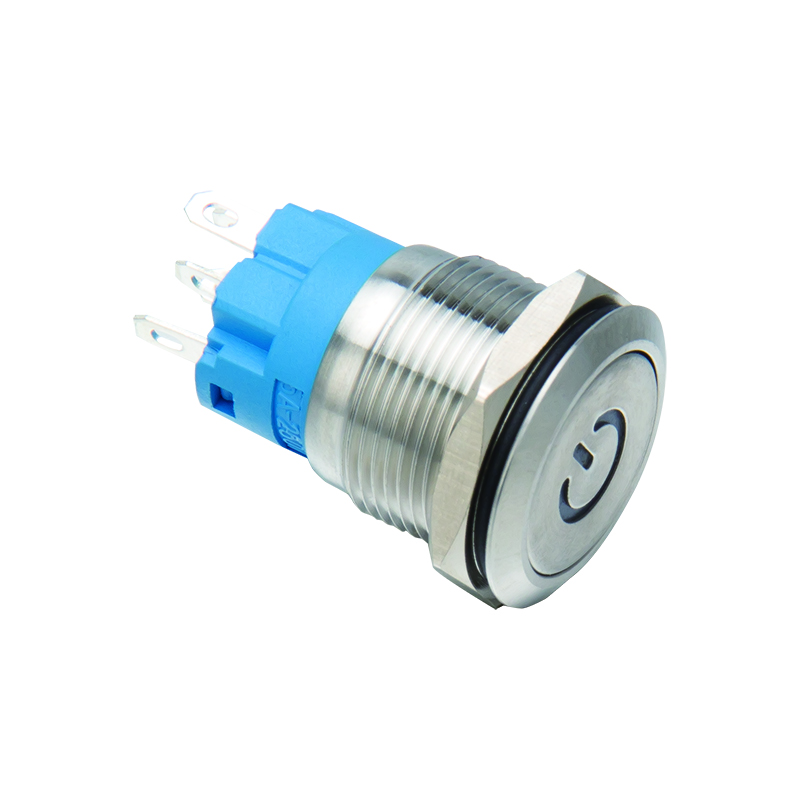

Push Button On Off Switch 22A2 Series

● Mounting hole size: 22mm
● Switch current: 3A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized

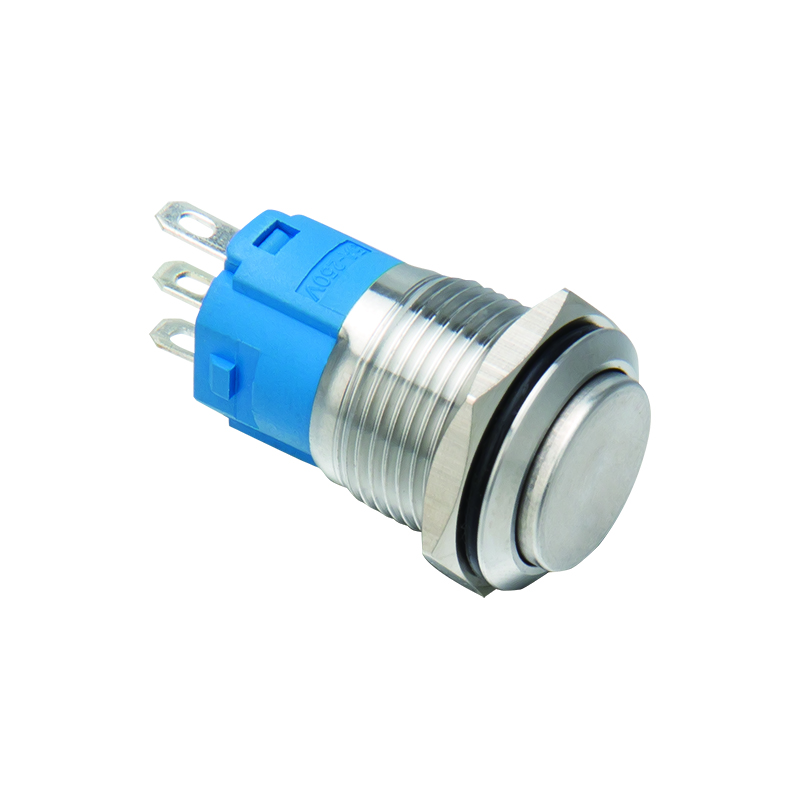

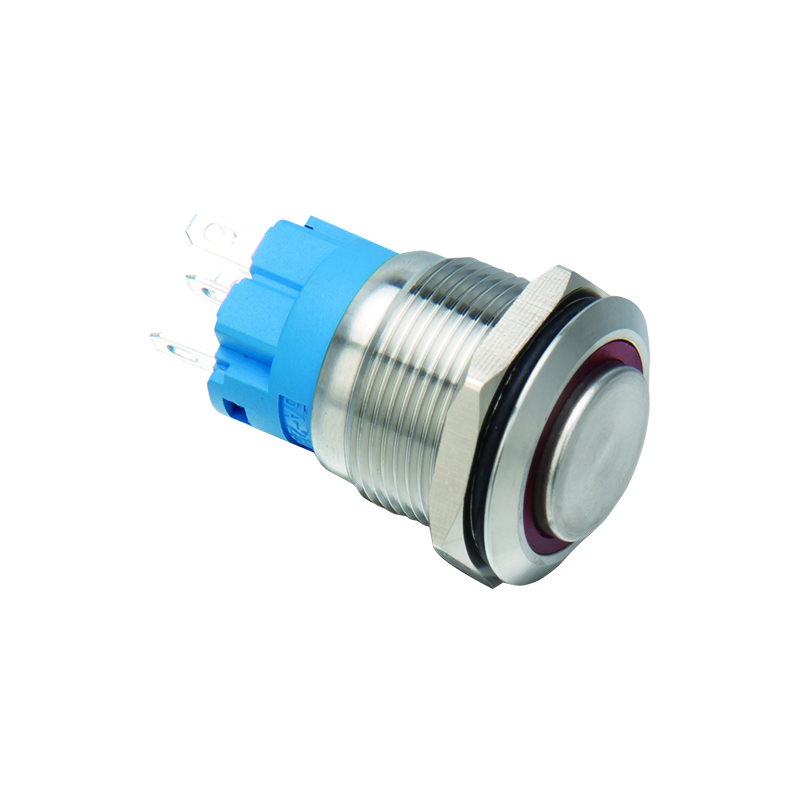

● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC/2NO 2NC
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

HJ22A2-T/Q
HJ22A2-P/Q

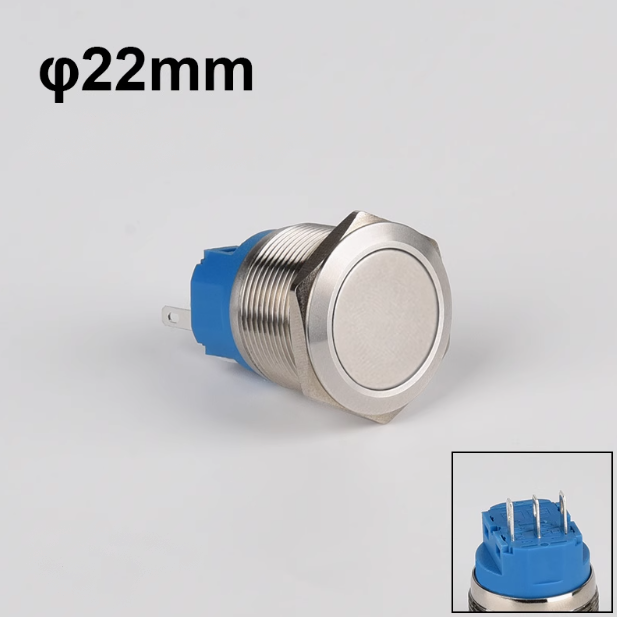

HJ22A2-D4/P/Q

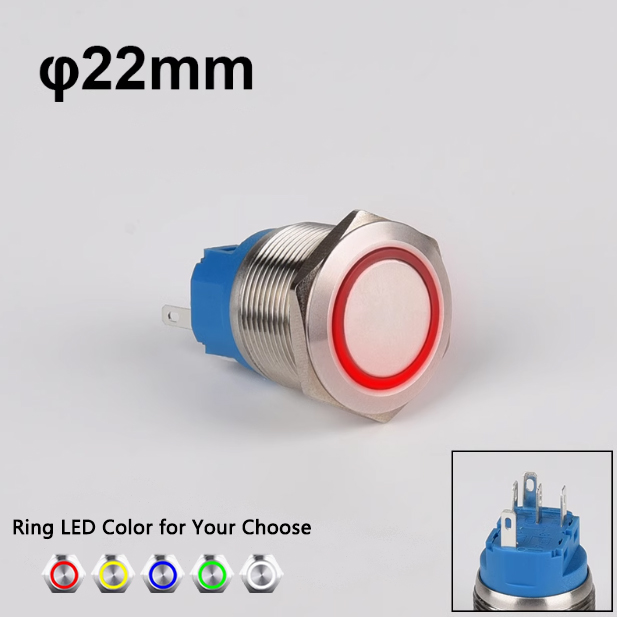

HJ22A2-D2/T/Q
HJ22A2-D3/P/Q

Push Button On Off Switch

Metal Push Button Selection Guide

Description

The Push Button On Off Switch 22A2 Series is designed for functionality and style. This switch is the perfect solution for those looking for a reliable and aesthetically pleasing way to manage their electrical equipment.

Parameters

Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins (2.8X6.5mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

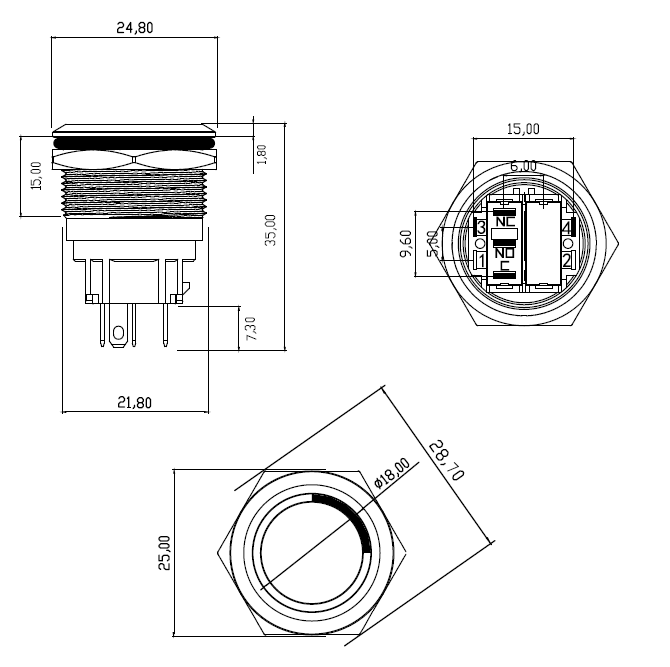

Push Button On Off Switch Drawing

Features

1. 22mm mounting hole size for compatibility with a variety of applications. Whether you’re integrating it into industrial machinery, a home automation system, or a DIY project, this switch has you covered. The switch is rated at 5A, ensuring efficient performance while maintaining safety standards.

2. The push button on off switch are of the highest quality. Made from stainless steel, chrome plated brass, or aluminum Oxidized, this switch is not only durable but also looks stylish and modern. The combination of these materials ensures that the switch can withstand the rigors of daily use while maintaining its aesthetics.
