Push Button On Off Switch 16B Series
-

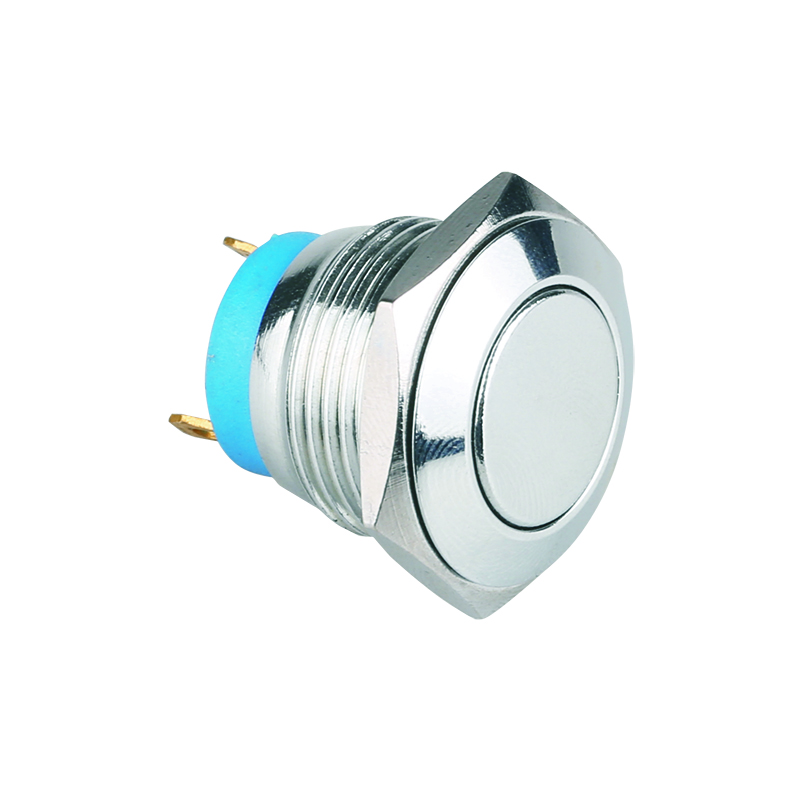

HJ16B-P-S
-

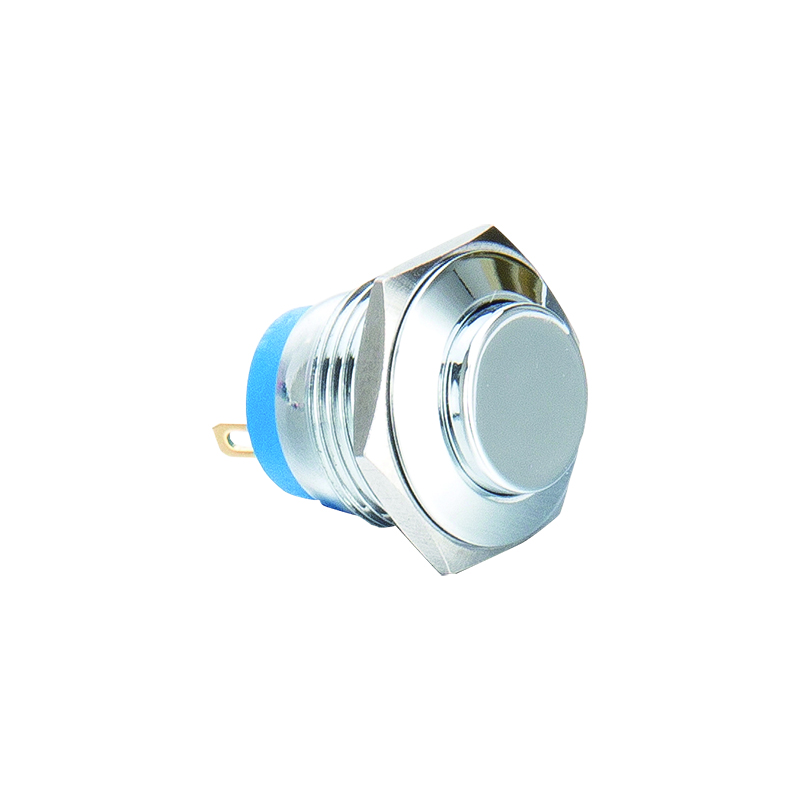

HJ16B-T-S
-

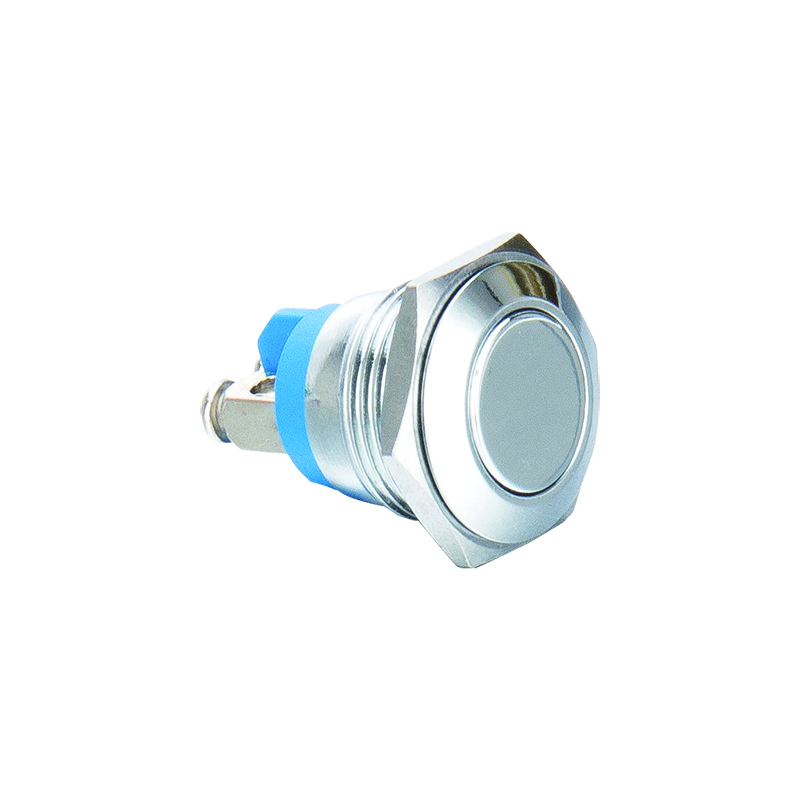

HJ16B-P-M
-

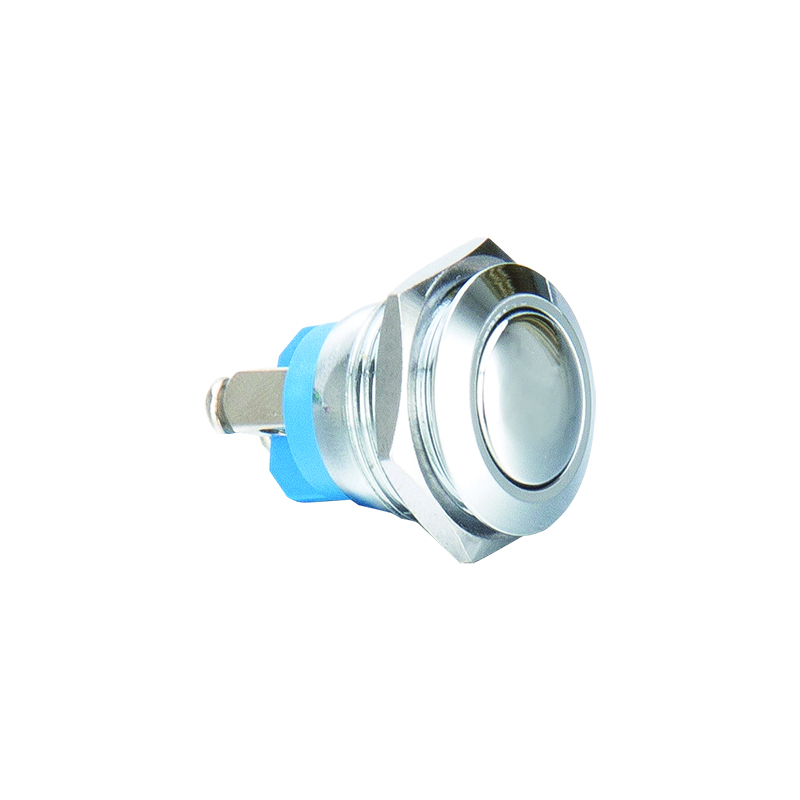

HJ16B-Q-M
-

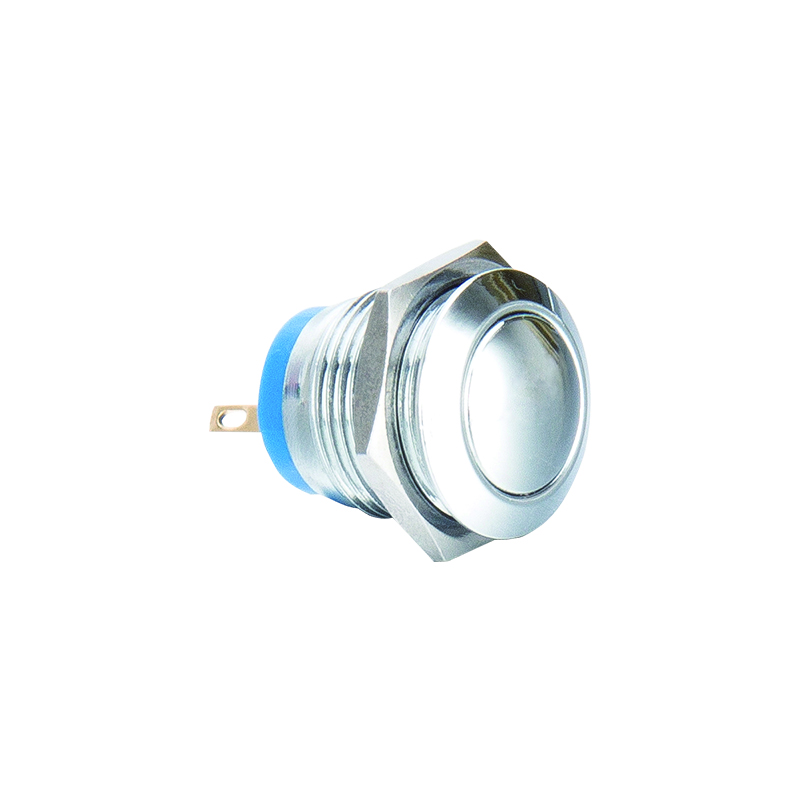

HJ16B-Q-S
-

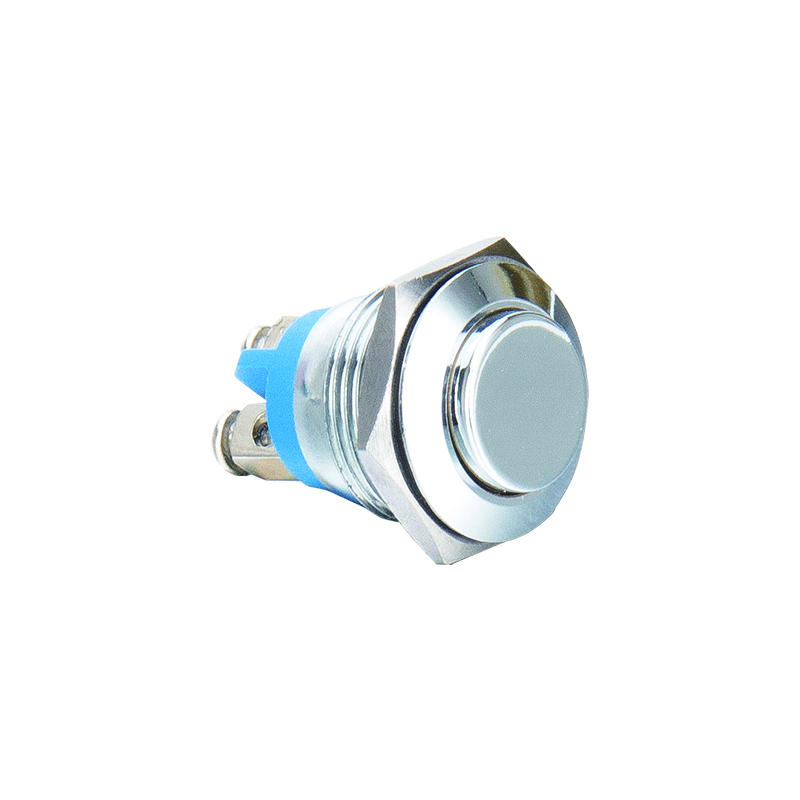

HJ16B-T-M
Description
The Push Button On Off Switch 16B Series is designed with precision and durability in mind, making it suitable for a wide variety of applications. Whether you need a switch with solder pins or a screw terminal type switch, the 16B Series can meet your needs.
Parameters
|
Mounting hole size |
16mm,19mm,22mm |
Body color |
|
|
Switch rating |
Current: 2A |
Mechanical life |
More than10,00,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK09 |
Terminal type |
Wiring pins/Screw |
|
Material |
Button: Stainless steel/Nickel Plated Brass/Oxidized Aluminum | ||
| Body:Stainless steel/Nickel Plated Brass/Oxidized Aluminum | |||
|
Base: PBT |
|||
|
Contact: Silver alloy |
|||
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

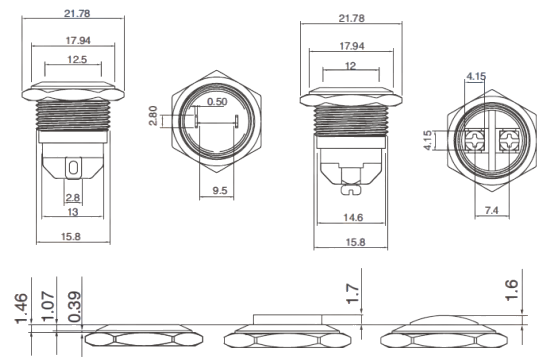

Push Button On Off Switch Drawing
Features
1.With a 16mm mounting hole size, this push button switch is easy to install and can be seamlessly installed into your existing control panel or enclosure.
2.The 2A switching current ensures efficient and safe operation, making it an ideal choice for controlling a variety of circuits
3.Made of high-quality materials such as stainless steel, nickel-plated brass and anodized aluminum, the 16B series can withstand the rigors of industrial environments while maintaining its performance and appearance.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
