Push Button Momentary Switch 19A7 Series

Push Button Momentary Switch 19A7 Series also named Self-Reset Push Button Switch.The protection level is IP67.
● Mounting hole size: 19mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Push Button Momentary Switch

Metal Push Button Selection Guide

Description

Push button momentary switch 19A7 series designed for reliability and efficiency in a variety of applications. This self-resetting push button switch is designed to meet the needs of modern technology while ensuring user-friendly operation.

Parameters

Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP67	Terminal type	Wiring pins (2.8X6.5mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Rated Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

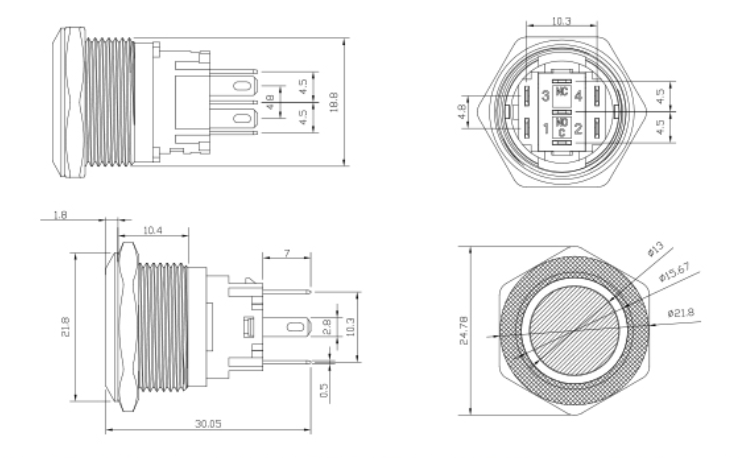

Push Button Momentary Switch Drawing

Features

1.Waterproof rating IP67, it can withstand harsh environments and is ideal for outdoor use or environments where dust and moisture are a concern. Whether you integrate it into industrial machinery, automotive applications, or consumer electronics, this switch is guaranteed to be durable and long-lasting.

2.19mm mounting hole size, it is allows for easy installation and blends seamlessly into your existing setup. Its compact design does not compromise performance.

3.The switch can handle up to 3A, providing reliable operation in a variety of devices.
