Push Button Light Switch 16A7 Series
Description
This illuminated push button switch 16A7 series is the perfect solution for a variety of applications, from industrial settings to home automation. With a strong current capacity of up to 3A, it ensures reliable performance in any environment.
Parameters
|
Switch rating |
Current: 3A |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 100,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP67 |
Terminal type |
Wiring pins (2.8X6.5mm) |
|
Material |
Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
Rated Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
LED Type: Two way LED beads(AC and DC universal) |
||
| Contact: Silver alloy |
LED life: 40000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

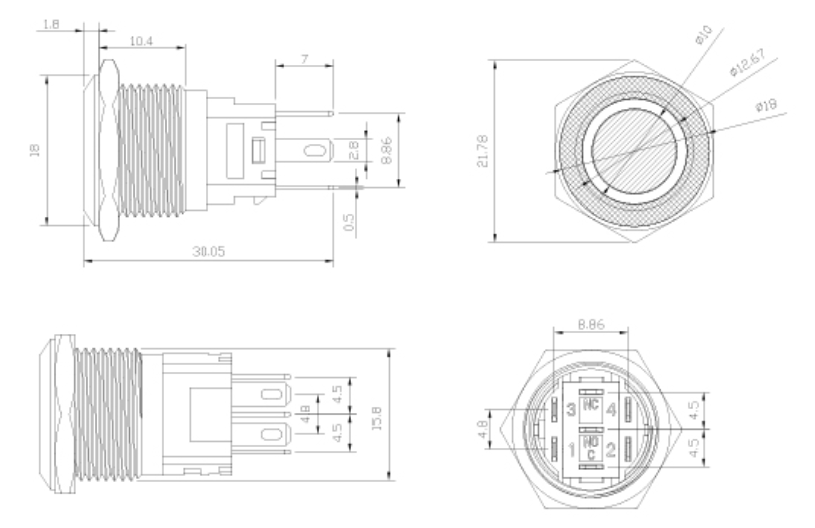

Push button light switch 16A7 Series Drawing
Features
1.Waterproof rating IP65/IP67,it is for protection against dust and water. This feature is especially beneficial for outdoor or harsh environments, ensuring your switch remains functional and reliable.
2.Mounting hole size is 16mm, making installation very simple, ensuring you can integrate it seamlessly into your existing setup.
3.Momentary or latching operating modes, making them suitable for a variety of applications. Whether you need simple on/off control or a more complex system, this switch can easily meet your requirements.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
