Plastic Signal Indicator Lamp LD16 Series
Description
Plactic Signal Indicator Lamp LD16 Serie all use high-brightness、pure-color LED light-emitting chips , it has long life, low energy consumption,small size and light weight. The LED shade is made of high-strength carbonate and has good impact resistance. Built-in screw-type wiring makes it safer and more convenient.
Parameters
|
Humidity |
45~85%RH |
Continuous operational life |
≥ 40000h |
|
Allow instantaneous voltage fluctuation |
±20% (above 110V) |
Power frequency withstand voltage |
2.5kV(AC effective value), 1min |
|
Usage frequency(AC) |
50-60Hz |
Rated operational current |
AC/DC6V ≤40mA, the rest ≤ 25mA |
|
Operation temperature |
-25℃ ~+75℃ |
Luminance |
≥ 100cd/m² |
|
Comparative tracking index |
≥ 100, flame retardant |
Insulation resistance |
5MΩ while Ui ≤ 60V，50MΩ while 60V ＜ Ui ≤ 660V |
|
LED color |
Red/Green/Yellow/Blue/White |
||

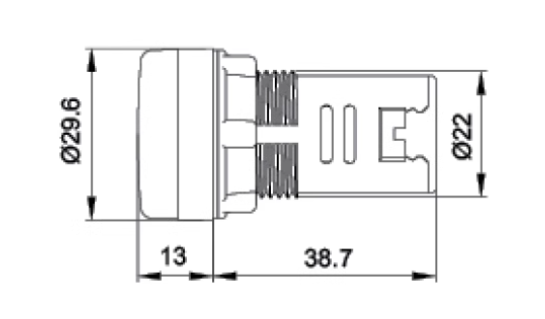

Plactic Signal Indicator Lamp Drawing
Features
1. LD16 Series is available in a variety of vibrant colors, including red, green, yellow, blue and white, allowing you to choose the perfect hue to suit your specific signal requirements. Whether you need to indicate power status, operational alerts or safety warnings, these lights provide clear visibility and effective communication in any environment.
2.With a standard mounting hole size of 22 mm, the plastic signal lights are easy to install and blend seamlessly into your existing equipment. Its compact design ensures it can be integrated into tight spaces without compromising performance. The flame-retardant material not only extends the life of the lamp but also provides an extra layer of safety, making it suitable for use in high-risk areas.
3.The LD16 series is ideally suited for a variety of applications including machinery, control panels and safety equipment. Its rugged construction and reliable performance make it a trusted choice for engineers and technicians looking to enhance their signal systems.
