Plastic Pushbutton Switches HL16C Series
-

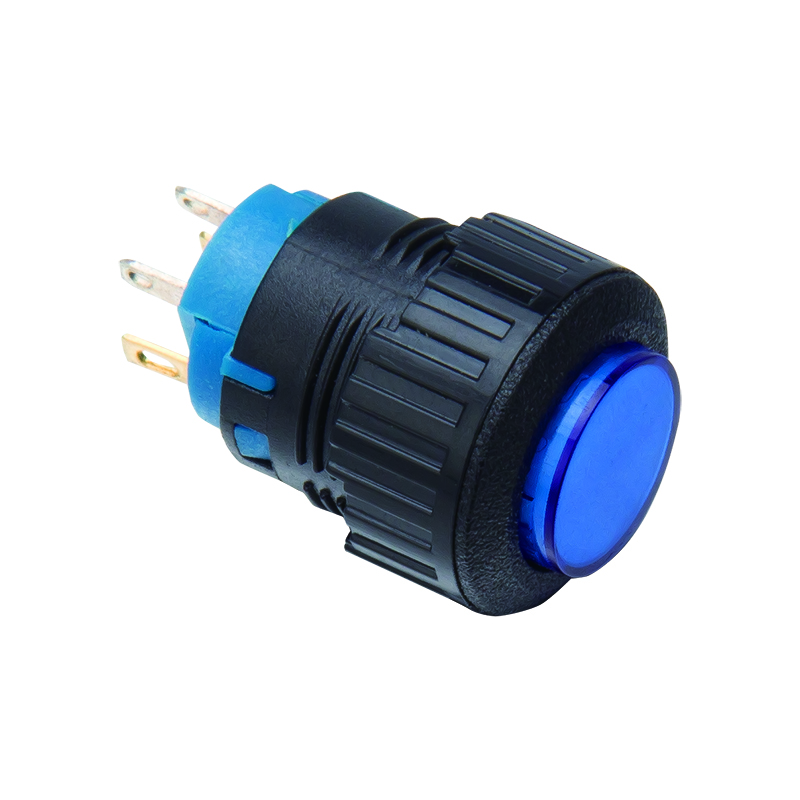

HL16C/D/T/S
-

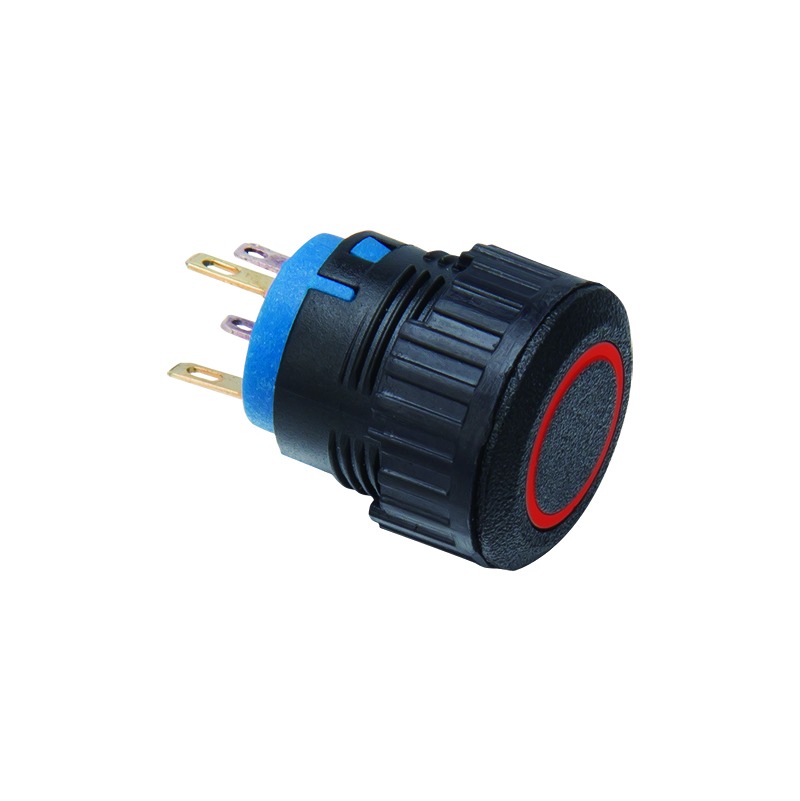

HL16C/D/P/S
-

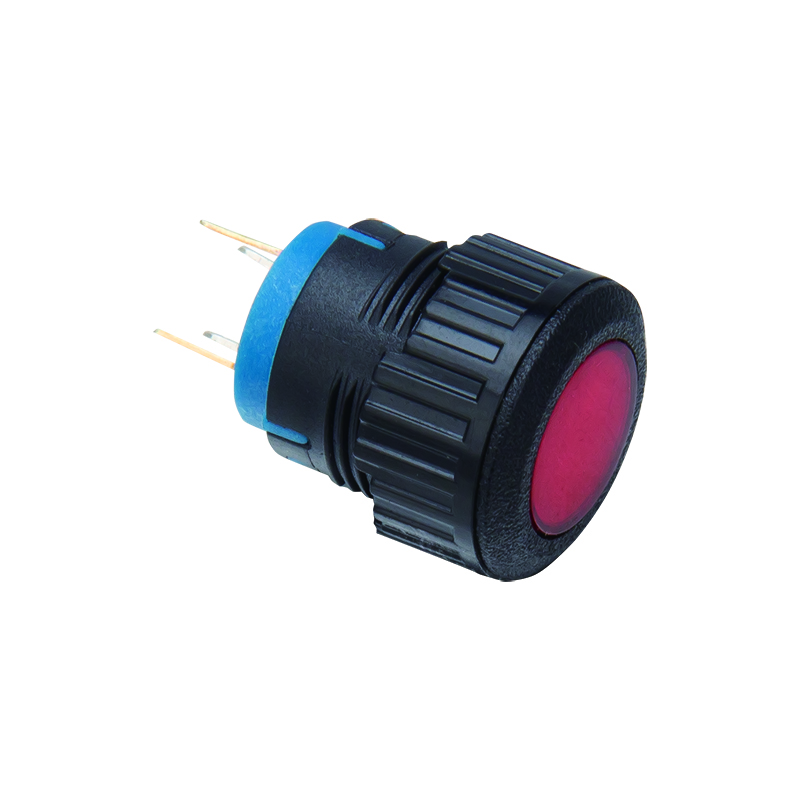

HL16C/D2/P/S
Description
Plastic Pushbutton Switches HL16C Series is the perfect solution for your electronic control needs. Designed with versatility and durability in mind, these switches are constructed from high-quality plastic to ensure longevity and reliable performance in a variety of applications.
Parameters
|
Switch rating |
Current: 2A,Voltage: 36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (2X6mm) |
|
Material |
Button: Plastic |
LED Light |
LED color:
|
| Body:Plastic |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
Rated current: 3-48V about 2mA,110-220V about 2mA |
||
| Contact: Gold plated |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

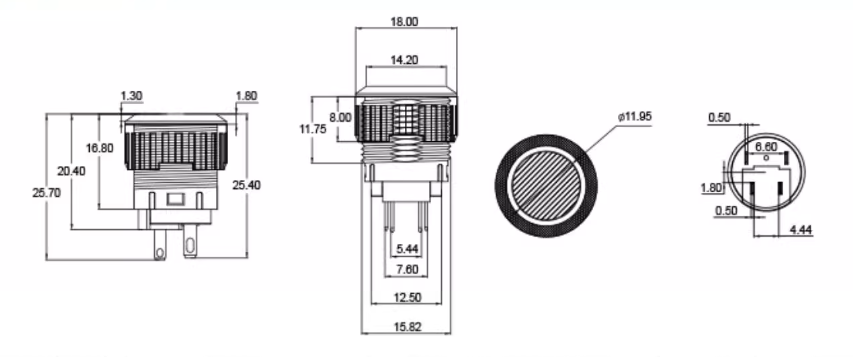

Plastic Pushbutton Switches Drawing
Features
1.The 16C Series mounting hole size is 16mm, making it ideal for a variety of devices, making it a popular choice among engineers and hobbyists.
2.Plastic Pushbutton Switches the 16C Series switches are rated at 2A, providing ample power handling capability for most electronic circuits. This makes them suitable for low and medium power applications, ensuring you can rely on them for consistent performance.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
