Plastic Push Button HL19C Series
Description
The Plastic Pushbutton HL19C Series are made from high-quality plastic to withstand the rigors of everyday use while maintaining a sleek, modern look. The 19mm mounting hole size allows for seamless integration into a variety of panels and housings, making installation a breeze. The switch can handle currents up to 2A, ensuring reliable performance in demanding environments.
Parameters
|
Switch rating |
Current: 2A,Voltage: 36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (2X6mm) |
|
Material |
Button: Plastic |
LED Light |
LED color:
|
| Body:Plastic |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
Rated current: 3-48V about 2mA,110-220V about 2mA |
||
| Contact: Gold plated |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

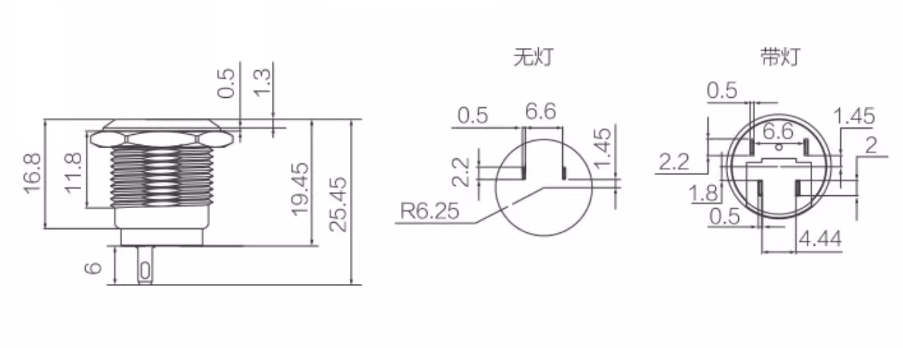

Push Buttons Plastic Drawing
Features
1.The 19C Series of Plastic Push Buttons is its customizable head shape options. You can choose between a flat head or a high flat head to suit your design preferences and functional requirements. Whether you need a low-profile option or a more visible button, this series has what you need.
2. The Plastic Pushbutton 19C Series is the operating mode, which offers both momentary and latching options. This flexibility allows you to select the best function for your application, whether you require temporary activation or a switch that remains engaged until manually released.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
