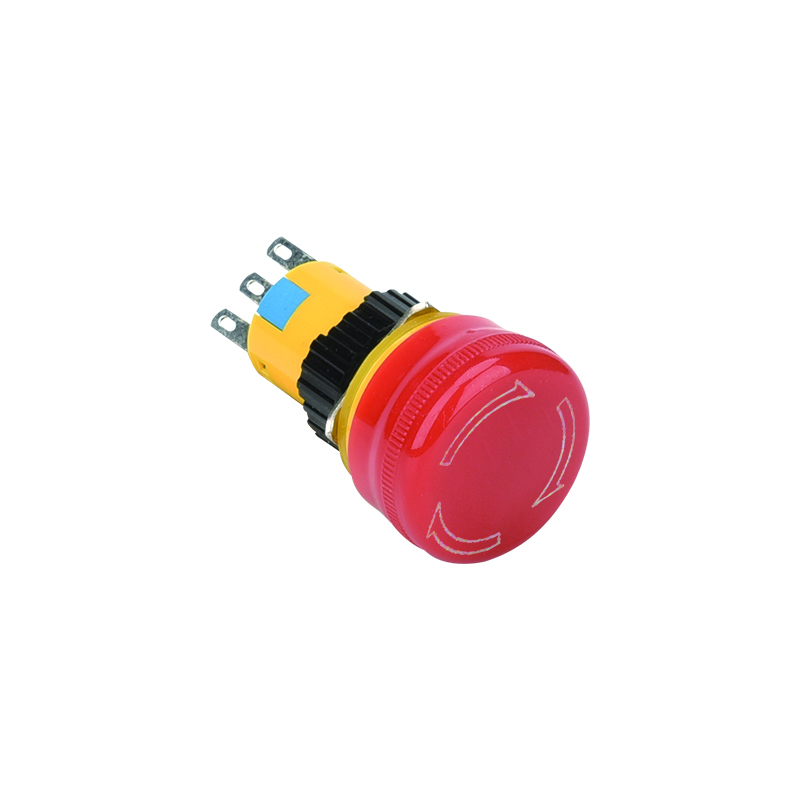

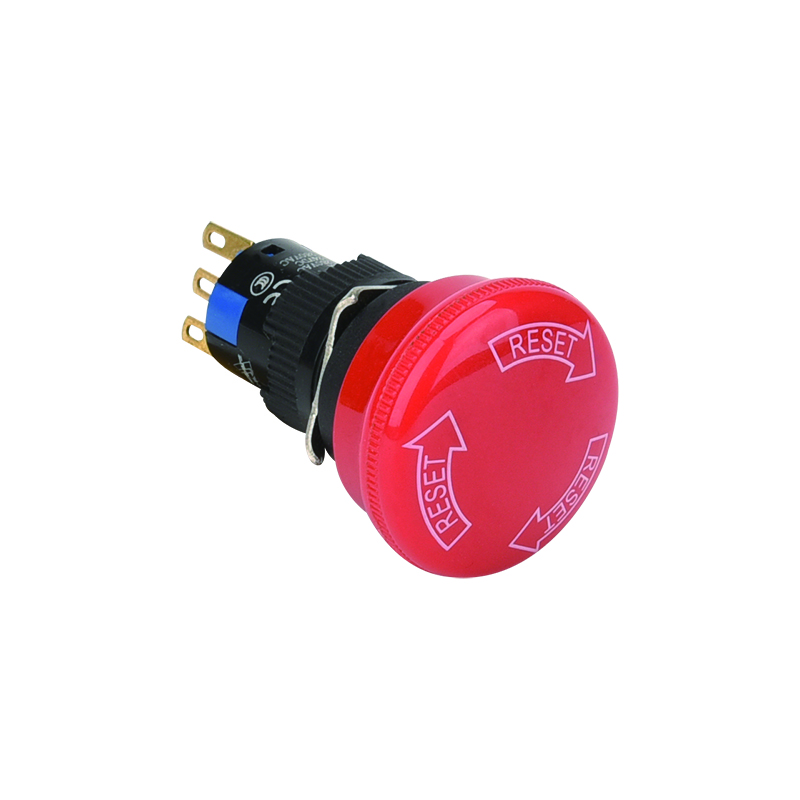

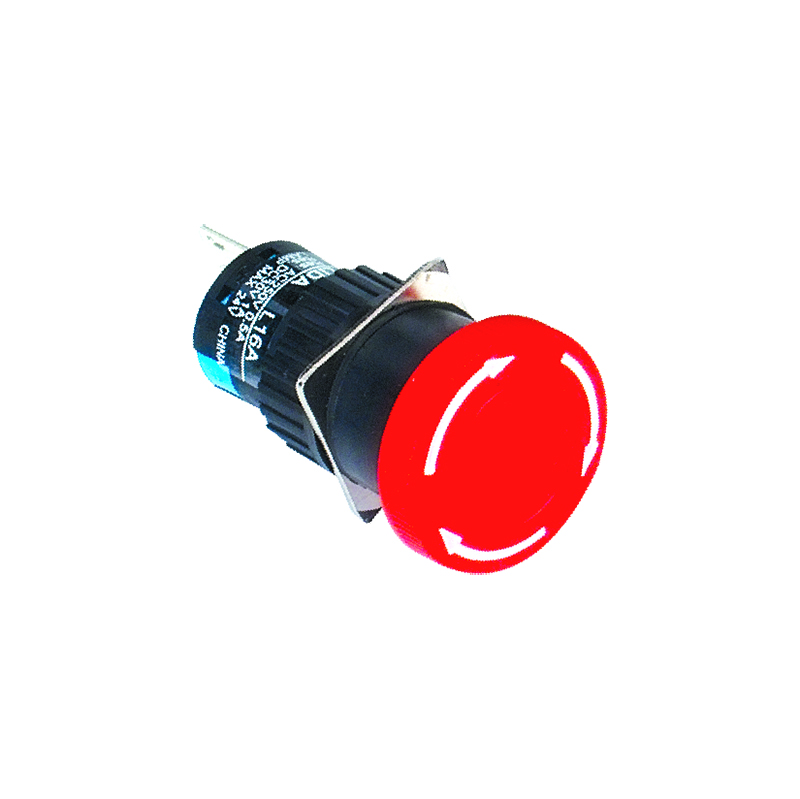

Plastic Emergency Stop Button L16A Series
-
L16A-CV
-
L16A-CV-29
-
L16A-CV-26
Description
The plastic emergency stop button L16A series is designed to provide a reliable and efficient solution for emergency situations, ensuring a quick and safe stop of operations. Made from high-quality plastic, this emergency stop button is both durable and lightweight, making it ideal for a variety of applications.
Parameters
|
Switch rating |
Current: 2A,Voltage: 250V |
Mechanical life |
More than 100,000 times |
|
Electrical life |
More than 50,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
2000VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP40 /IP65 |
Terminal type |
Wiring pins (2.8X9mm) |
|
Material |
Button: PC |
||
|
Body:PC |
|||
|
Base: PBT |
|||
|
Contact: Silver alloy |
|||
Note:
Press the emergency stop button: Press the button to start self-locking and stop running
Rotating pop-up: Rotate the button head clockwise, the button pops up and runs normally

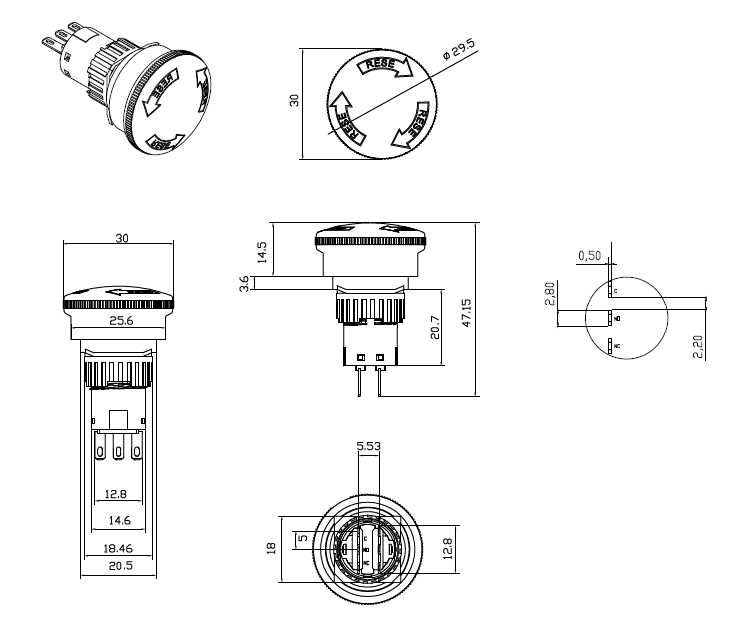

Plastic Emergency Stop Button Drawing
Features
1.L16A series has a mounting hole size of 16 mm, making it easy to install in a variety of machinery and equipment. Its compact design ensures it blends seamlessly into your existing setup without taking up unnecessary space.
2.The button’s mushroom-shaped shape is designed for quick and easy operation, allowing users to activate the emergency stop function with just one push. This intuitive design minimizes the risk of confusion during critical moments, ensuring security is always within reach.
3.The switches in the L16A series of plastic emergency stop buttons are rated at 2A and are capable of handling a wide range of electrical loads and are suitable for light and medium duty applications.
