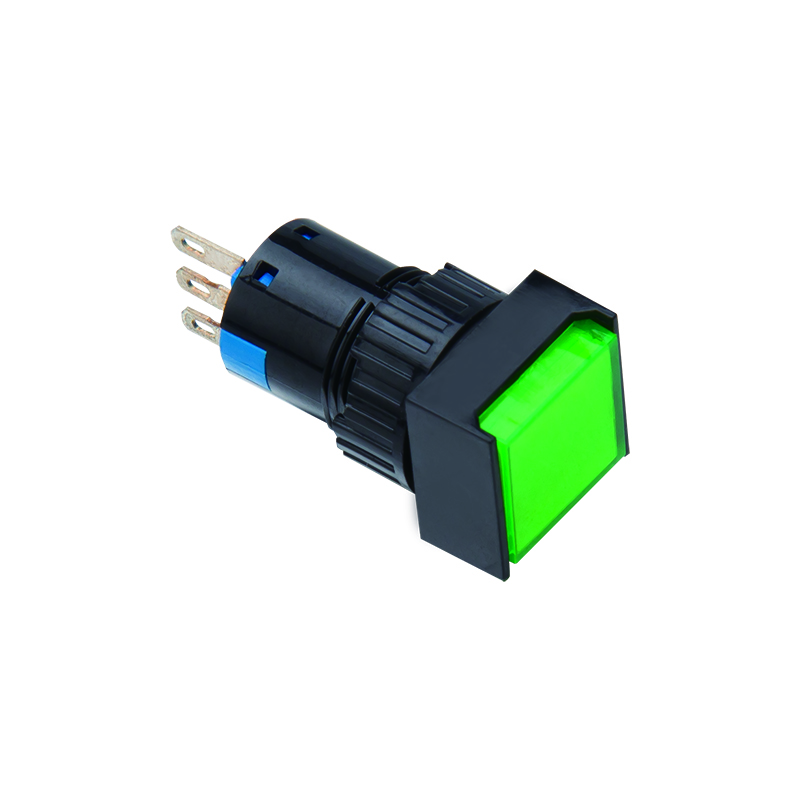

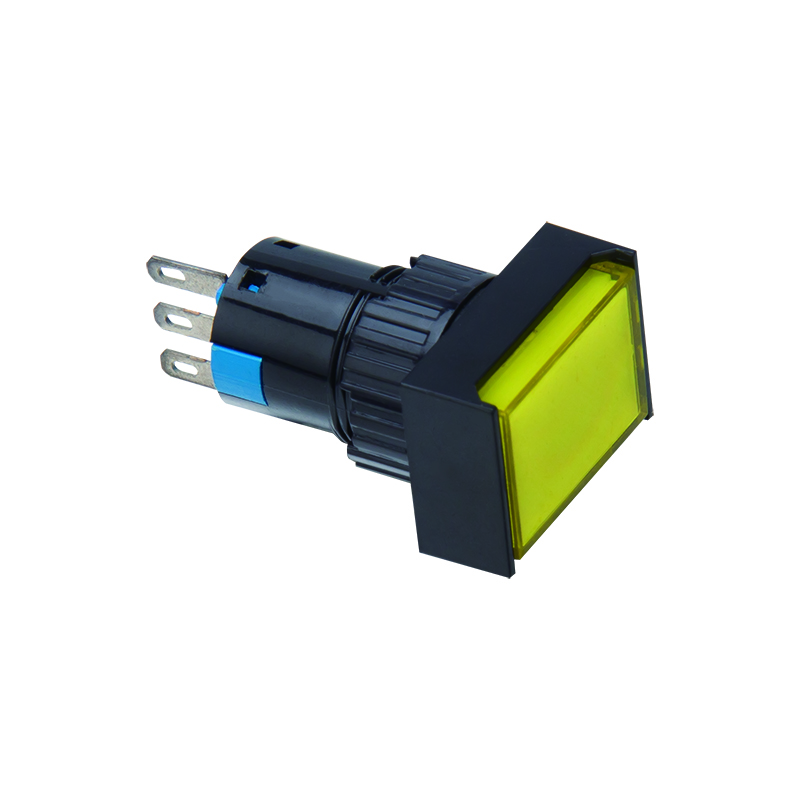

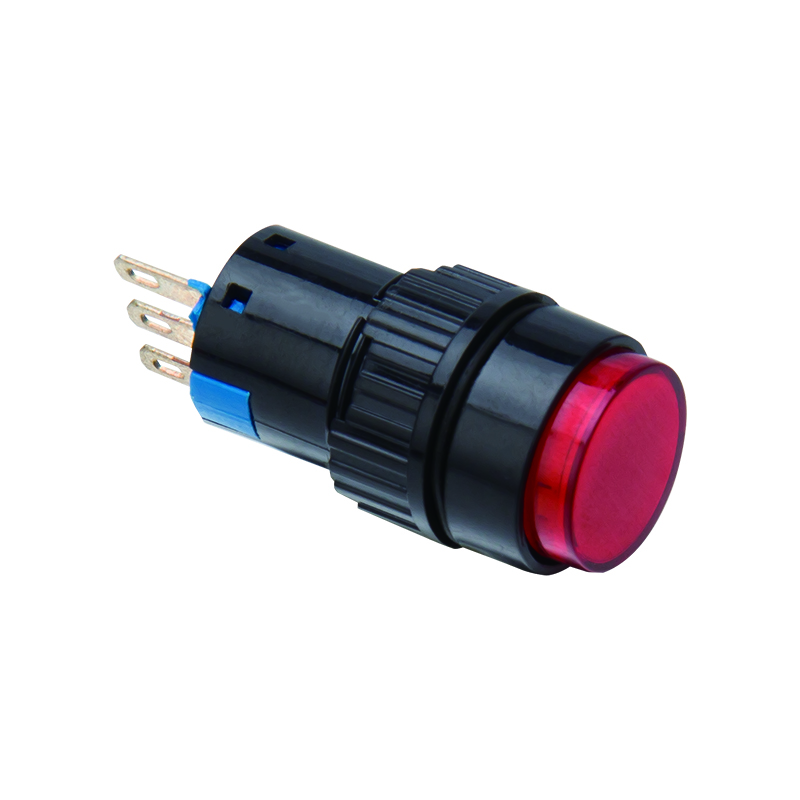

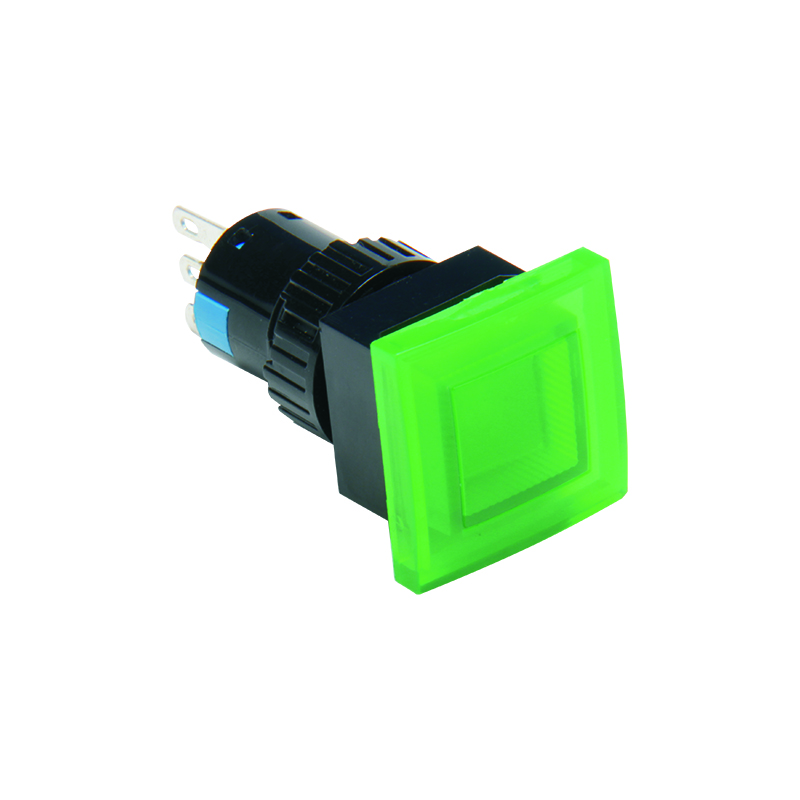

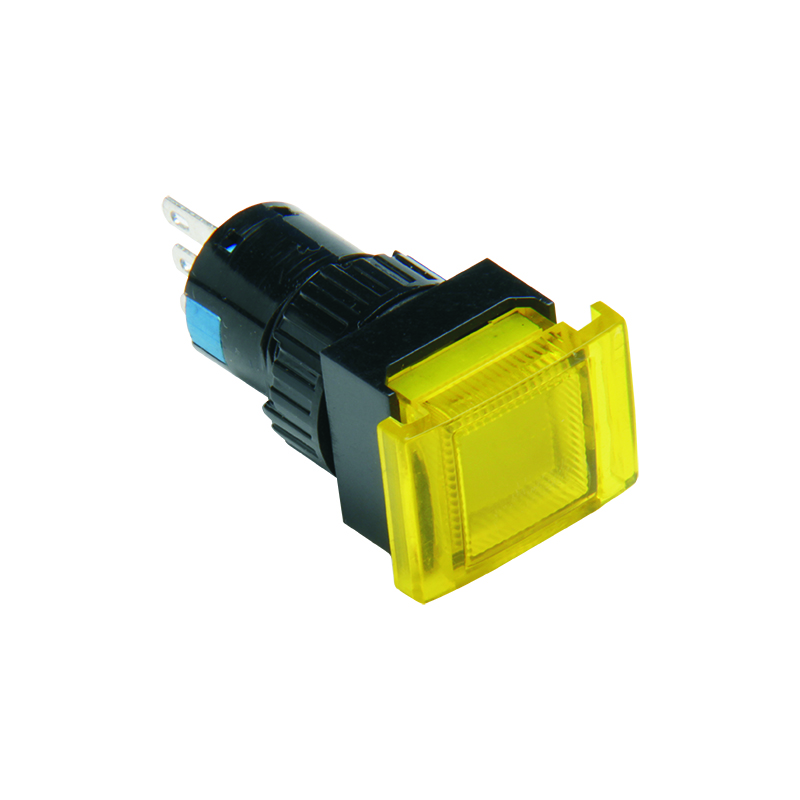

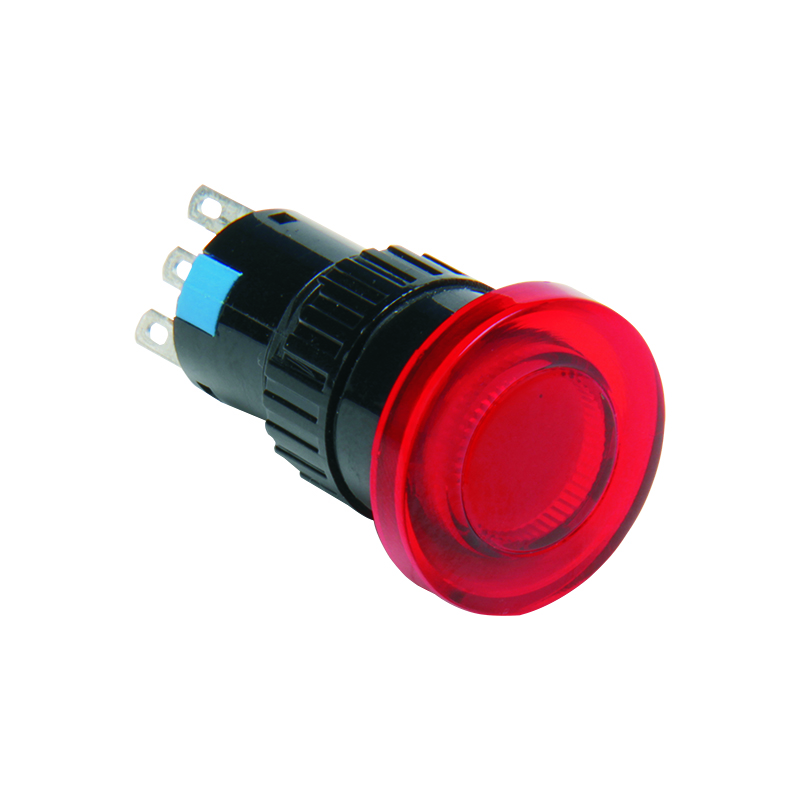

Plastic Button Switch HL16A Series
-
HL16A-CC
-
HL16A-SS
-
HL16A-SR
-
HL16A-S
-
HL16A-R
-
HL16A-C
Description
Plastic Button Switch L16A Series has different head shapes.The shape of the front frame of the product has three specifications: round (φ18mm), square (18x18mm), rectangular (18x24mm), including letter indicator, button, button with light, knob, key button emergency stop button, buzzer.
Parameters
|
Switch rating |
Current: 5A,Voltage: 250V |
Contact resistance |
≤ 50mΩ |
|
|
Insulation resistance |
≥ 1000MΩ |
Electrical life |
More than 50,000 times | |
|
Dielectric strength |
1500VAC |
Operation temperature |
-20℃ ~+55℃ | |
|
Operation travel |
About 3mm |
Vibration Resistance |
50Hz,amplitude about 1.2mm |
|
|
Impact resistance |
More than 10g |
Terminal type |
Wiring pins (2.8X0.5mm) |
|
|
Protection level |
IP40 |
Mechanical life |
Momentary: 200,000 times Latching: 200,000 times |
|
|
Maximum withstand voltage |
Between the contact and the lamp bead pin |
2000Volts,50Hz AC,1min |
||
|
Between the same extremes |
1000Volts,50Hz AC,1min |
|||
|
Between different electrode terminals |
2000Volts,50Hz AC,1min |
|||
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

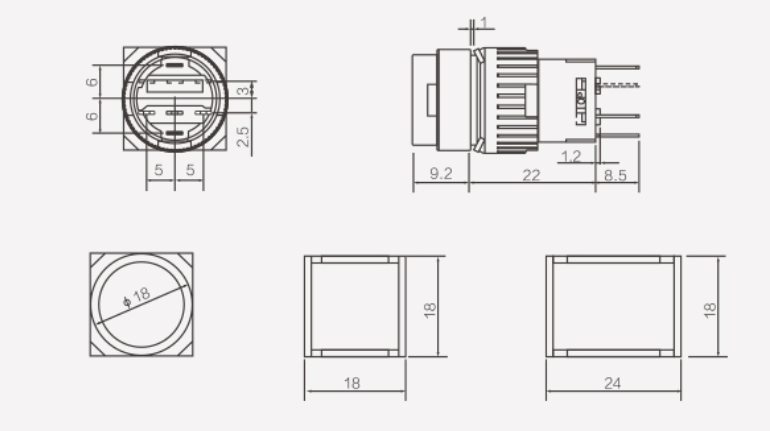

Plastic Button Switch Drawing
Features
1.Its conventional mounting hole diameter is Ф16mm, and some products can be equipped with reducer rings to install the product in the mounting hole of Φ22mm.
2.Performance: The product has the characteristics of stable performance, small contact resistance, strong insulation, vibration resistance and shock resistance; It meets the standards of IEC60947-5-1, GB14048.5 and so on.
3.Structure: The switching element adopts the "quick action" structure, each switching element contains one normally open and one normally closed, and each button can be configured with up to 2 switching elements.
4.Protection level: its own protection level is IP40, IP65, and some products can be equipped with sealing covers to achieve IP65/IP67.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
