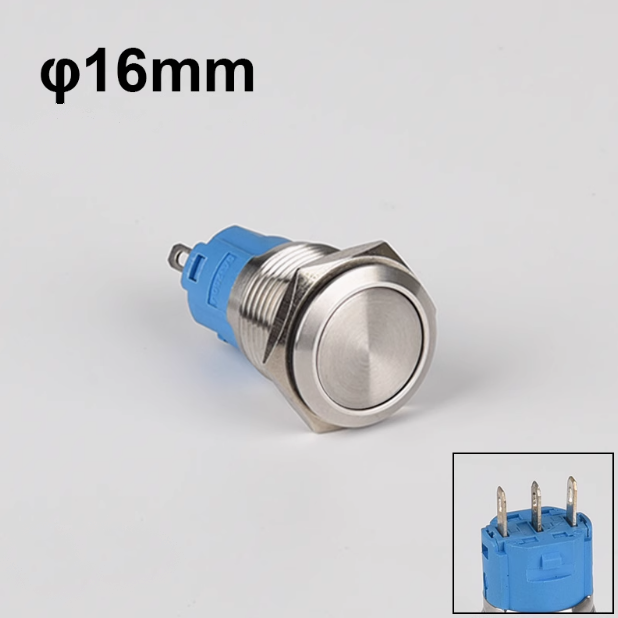

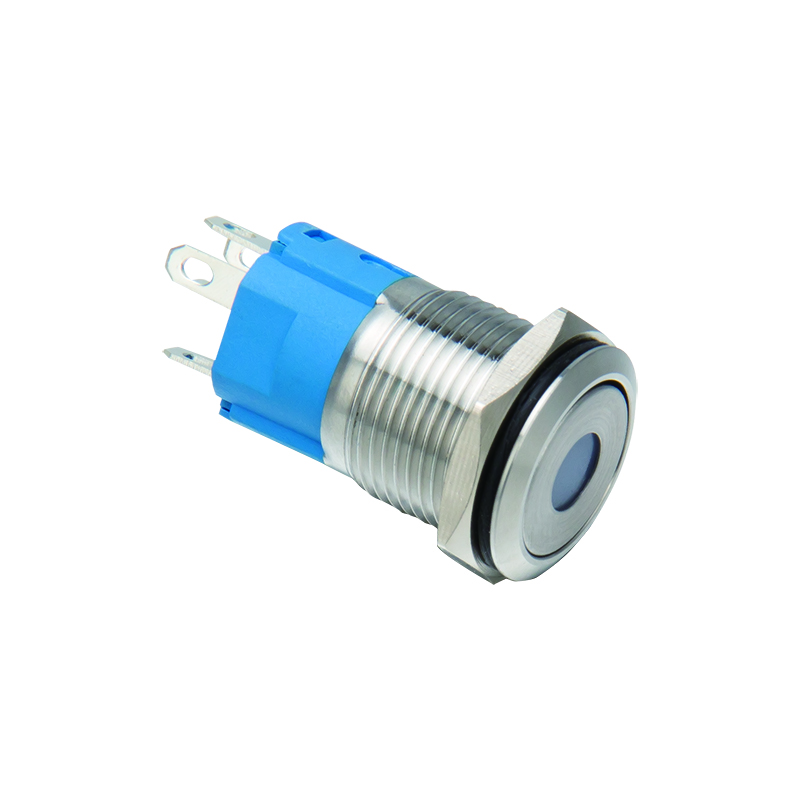

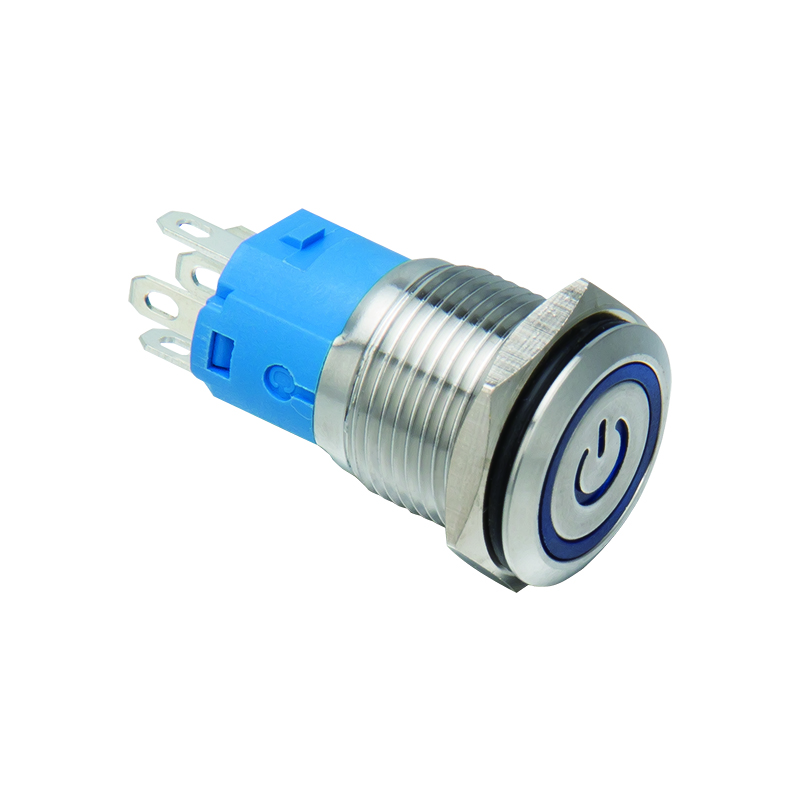

Panel Mount Push Button Switches 16A2 Series

Panel Mount Push Button Switches 16A2 series is suitable for installing various types of panels with mounting hole size 16mm.
● Mounting hole size: 16mm
● Switch current: 3A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized

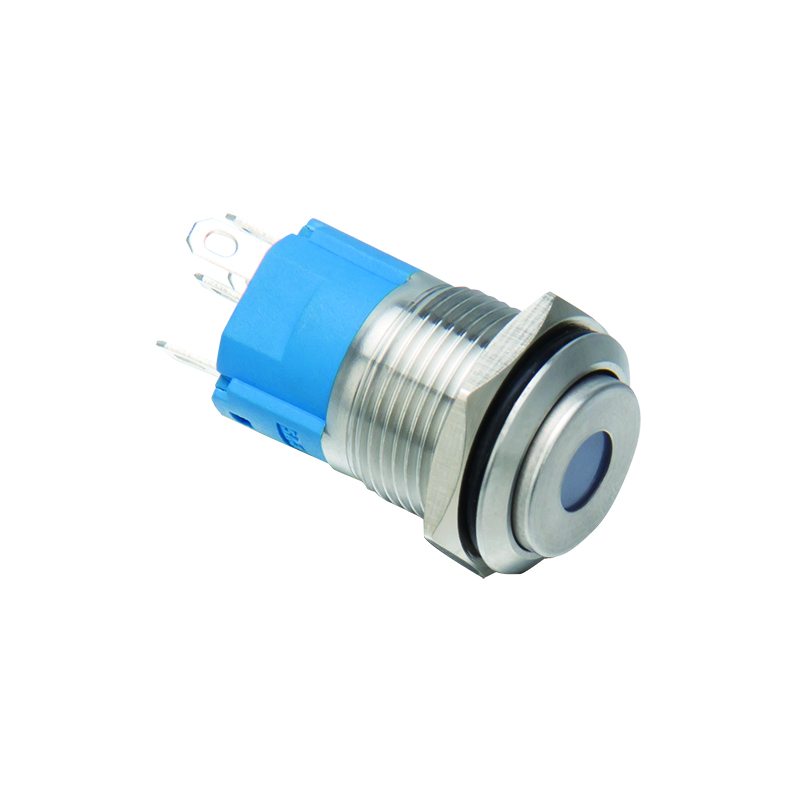

● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC

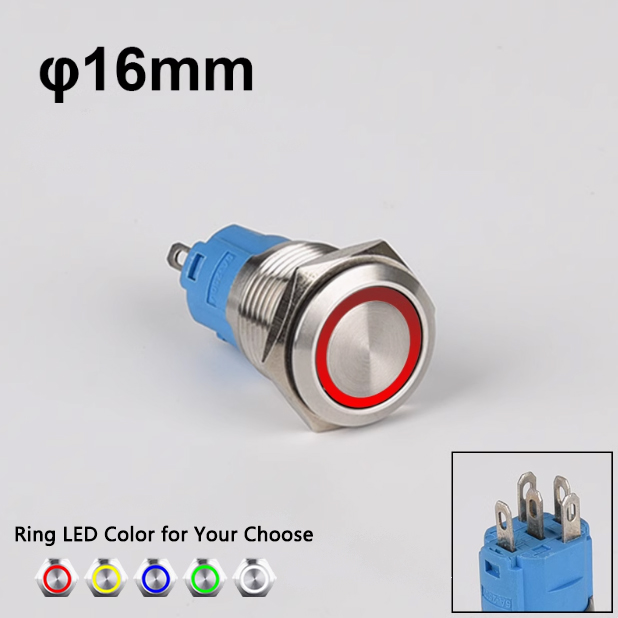

● LED Color: Red/Green/Yellow/Blue/White
● Protection level: IP65
If you need customized,please feel free contact HS!

HJ16A2/11/P/Q
HJ16A2/11/T/Q
HJ16A2/11/D1/P/Q
HJ16A2/11/D1/T/Q
HJ16A2/11/D2/P/Q
HJ16A2/11/D2/T/Q
HJ16A2/11/D3/P/Q
HJ16A2/11/D4/P/Q

Panel Mount Push Button Switches

Metal Push Button Selection Guide

Description

The Panel Mount Push Button Switches 16A2 Series is constructed from high-quality materials such as stainless steel, Nickel Plated Brass or Oxidized Aluminum, ensuring long life and resistance to wear and tear. This sturdy structure not only enhances the aesthetics of the panel, but also ensures reliable performance in harsh environments.

Parameters

Switch rating	Current: 3A,12mm is 2A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins (2.8X6.5mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

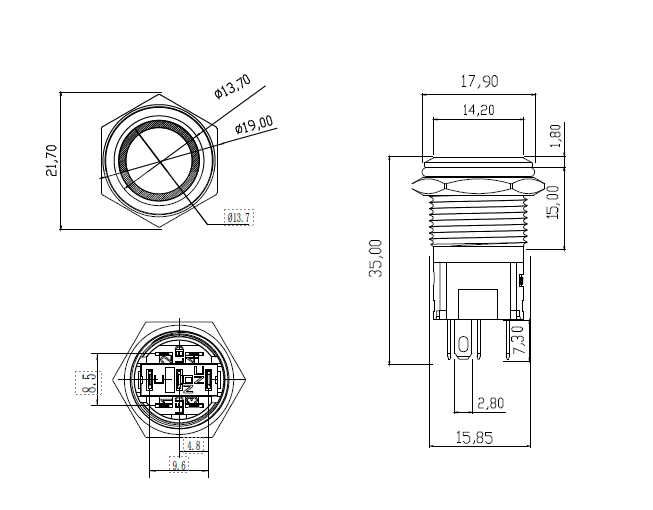

Panel Mount Push Button Switches Drawing

Features

1.IP65 waterproof

2.Max.Current: 3A, providing ample power handling capabilities for a variety of devices. Whether you integrate them into machinery, control panels, or electronic equipment, these pushbutton switches provide consistent and reliable operation.

3.Mounting hole size:16mm.These switches feature a precise mounting hole size of 16mm, making them ideal for installation in a variety of panel types, making them ideal for industrial and commercial environments.
