On Off Switch 19C Series

On Off Switch 19C Series is a led push button switch.The mounting hole diameter is 19mm.
●Mounting hole size: 19mm
●Switch current: 2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK10
If you need customized,please feel free contact HS!

Metal Signal Indicator Lamp with wire

Description

On Off Switch 19C Series designed to meet the diverse needs of modern industries. With a mounting hole diameter of 19mm, this switch is engineered to deliver seamless performance and exceptional durability in a wide range of applications.

Parameters

Mounting hole size	16mm,19mm,22mm	Operation Mode	Momentary,Latching
Switch rating	Current: 2A	Mechanical life	More than 200,000 times
Electrical life	More than 1000,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK10	Terminal type	Wiring pins (2X6mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Gold plated contact		LED life: 40,000 hours

Note

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

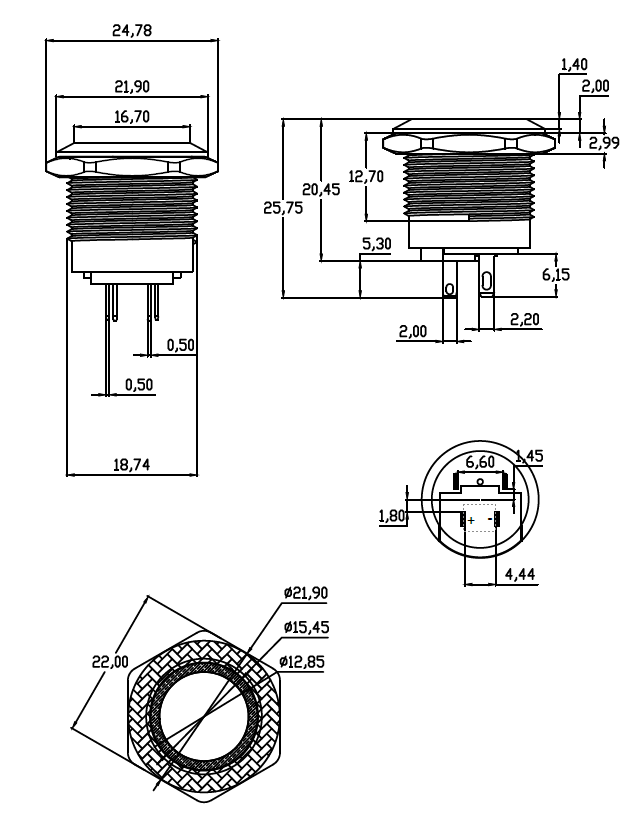

On Off Switch 19C Series Drawing

Features

1.Crafted from high-quality materials such as stainless steel, nickel-plated brass, and aluminum oxidized, the On Off Switch 19C Series is built to withstand the rigors of industrial environments. Whether it's heavy-duty machinery or precision instruments, this switch is designed to excel in demanding conditions, ensuring reliable operation and longevity.

2.One of the key highlights of the On Off Switch 19C Series is its contact structure, featuring 1NO configuration. This ensures efficient and consistent electrical connectivity, making it an ideal choice for critical control and power distribution applications. With a switch current of 2A, this series delivers the performance needed to support various electrical loads, contributing to seamless operation and enhanced safety.
