How to connect the push button switch to the device

Push button switch is a common low-voltage electrical component commonly used to connect and disconnect control circuits. How can I connect the button switch to the device? There are usually two methods, method one: it can be connected to the device through a socket with wires. Method 2: It can be connected to the equipment by soldering wires and terminals. This article will focus on introducing these two methods of connecting button switches to devices, as well as their advantages and disadvantages.

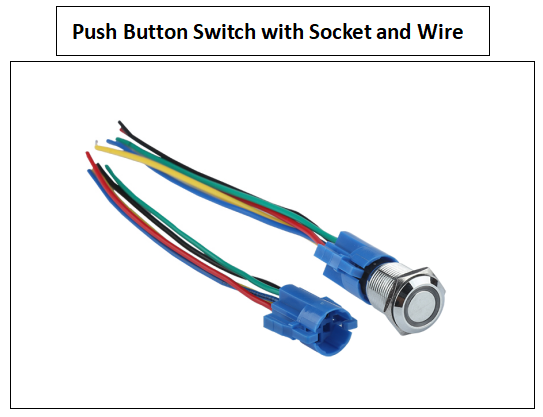

Firstly, let's take a look at how to connect the button switch to the device through a socket with wires. We need to prepare a suitable socket with wires to ensure that it matches the specifications of the button switch. Generally, manufacturers who purchase button switches will have matching sockets with wires. So the button switch and socket must be purchased in the same place, otherwise there may be a mismatch between the switch and socket. Then insert the button switch into the socket with wires, ensuring a secure connection. Finally, according to the circuit diagram, solder the end of the wire on the socket to the device. Finally, conduct circuit testing to ensure that the button switch can control the device's switch normally. The advantages of this method are no need for tool installation, convenience, time-saving, safer wiring, and easy replacement. Disadvantages: The socket is made of plastic, which is prone to aging over time and has a shorter service life than directly welding wires.

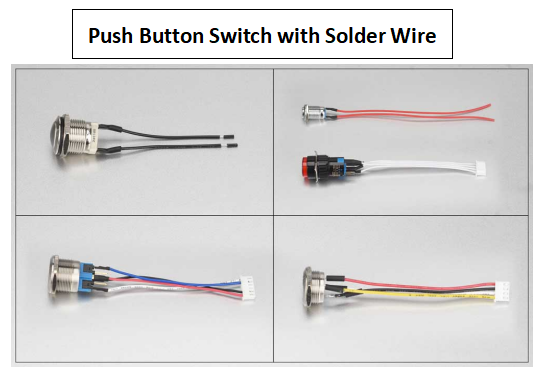

In addition to being connected through a socket with wires, button switches can also be connected to devices through soldered wires and terminals. Welding is a common metal connection technique that permanently connects two metal components together by heating the metal and applying pressure. Generally, manufacturers of button switches provide welding services. As long as you send the circuit diagram to the manufacturer, they will weld the wires, button switches, and terminals according to your circuit diagram. Once you receive the entire product, you can directly plug the terminals into the device you want to connect. The advantage of this method is that the wiring is more reliable and the circuit is safer. Disadvantage: High replacement cost. If the product is damaged, switches, wires, and terminals need to be replaced again.

In summary, the most common ways to connect devices with button switches are the two methods mentioned above. The specific choice of connection method depends on the specific requirements and usage environment of the device. Regardless of the method used, it is necessary to ensure a secure and reliable connection to ensure the normal operation and safe use of the equipment.
