Mushroom Push Button 16BC Series

Mushroom Push Button 16BC Series is a momentary metal push button switch with screw terminal.

Mounting hole size:16mm
Switch current:2A
Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
Head shape:Mushroom head
Operation mode: Momentary
Contact structure:1NO
Wiring type: Screw
Protection level: IP65

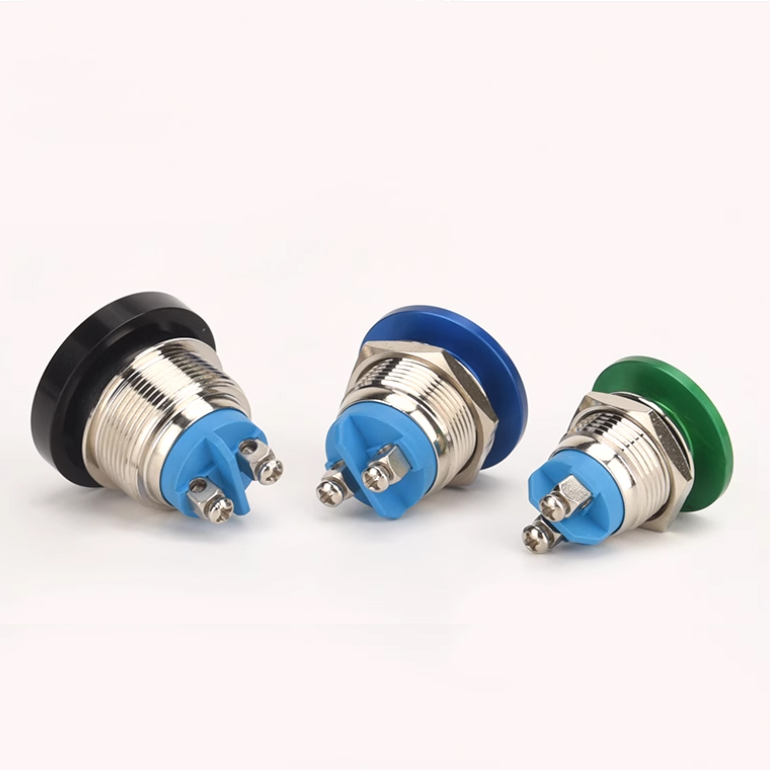

Mushroom head color: Red/Black/Blue/Green,other color can be customized

If you need customized,please feel free contact HS!

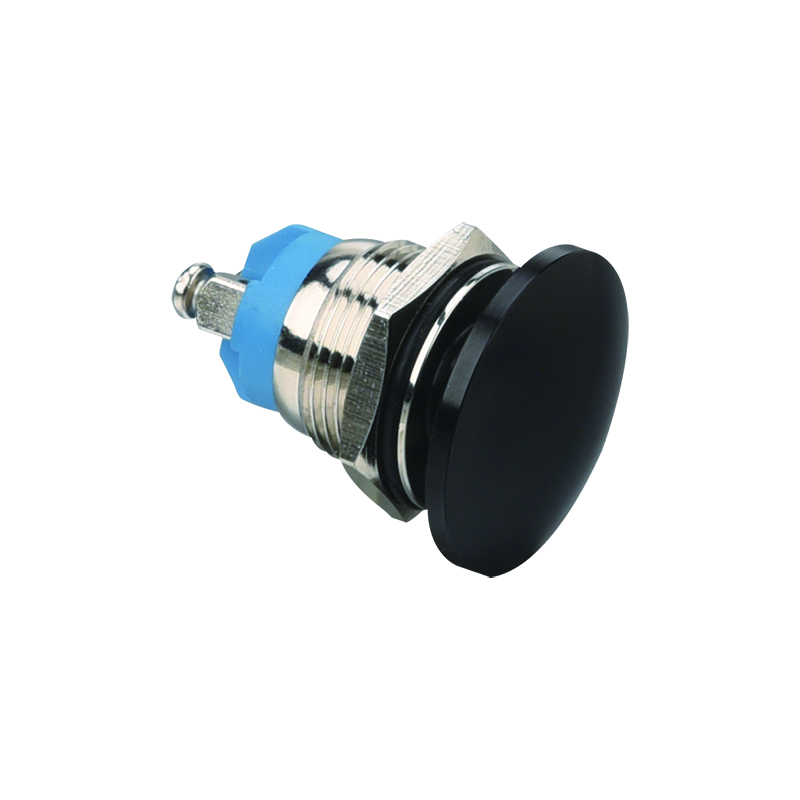

HJ16B-CC-M-BK

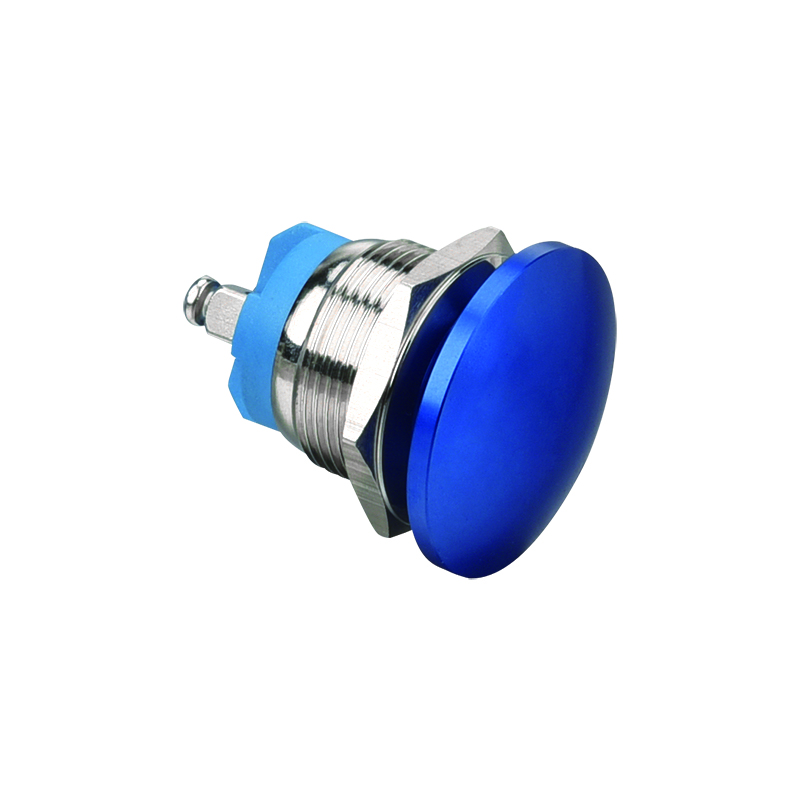

HJ16B-CC-M-B

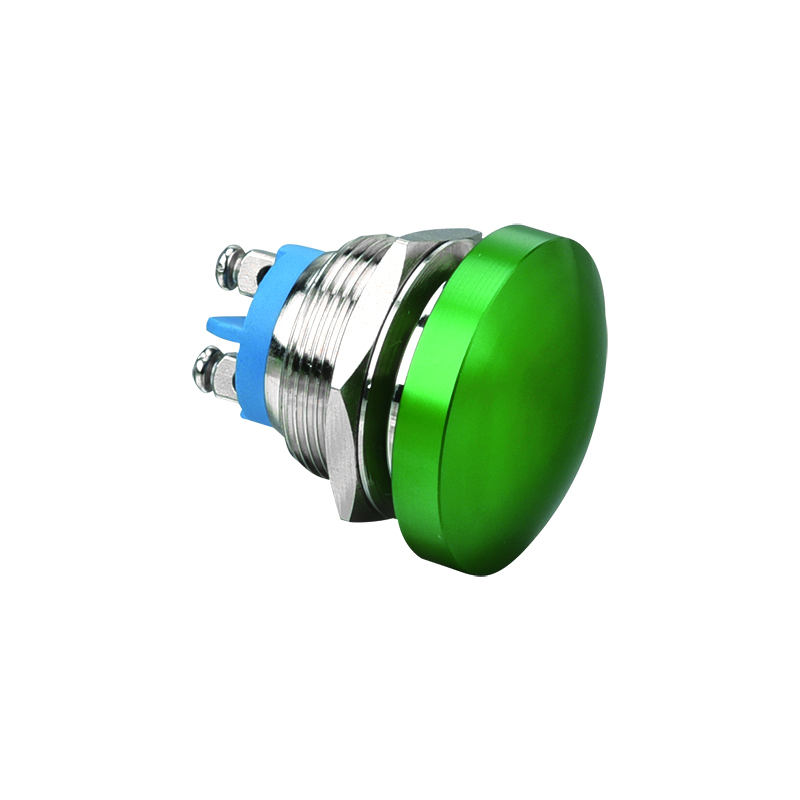

HJ16B-CC-M-G

Push Buttons Plastic

Metal Push Button Selection Guide

Description

Mushroom Push button 16BC Series are made of stainless steel, nickel-plated brass and anodized aluminum. The mushroom head shape not only enhances its aesthetics, but also ensures ease of operation, allowing for quick and efficient activation. The momentary mode of operation ensures that the switch returns to its original position after release, making it ideal for applications that require temporary activation.

Parameters

Mounting hole size	16mm,19mm,22mm	Mushroom head color
Switch rating	Current: 2A	Mechanical life	More than10,00,000 times
Electrical life	More than 200,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Screw
Material	Button: Oxidized Aluminum
	Body:Stainless steel/Nickel Plated Brass/Oxidized Aluminum
	Base: PBT
	Contact: Silver alloy

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

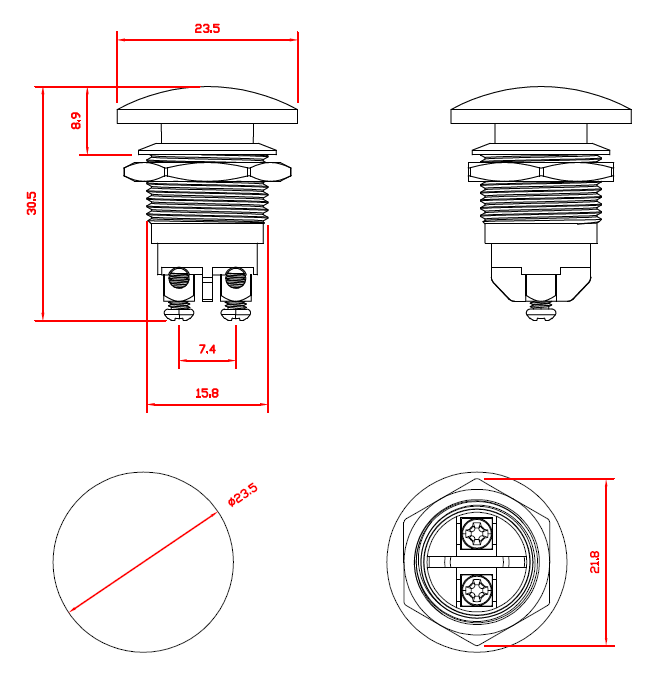

Mushroom Push Button Drawing

Features

1.Rated at 2A, this pushbutton switch is capable of handling a wide range of electrical loads and is suitable for industrial and commercial environments. The contact construction uses a single normally open (1NO) configuration, ensuring reliable performance with minimal maintenance requirements.

2.The wiring type is screw, providing a safe and stable connection, easy to install and maintain. This feature is especially useful for users who need a reliable switch that can be easily integrated into an existing system.
