Momentary Push Button Switches 16QC Series
-

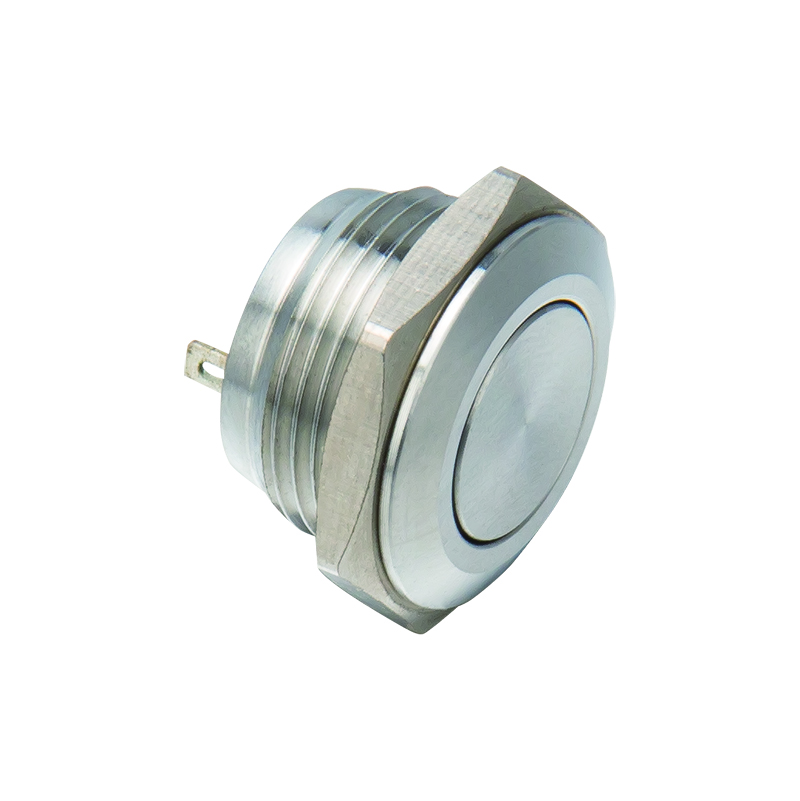

HJ16QC-P-S
-
HJ16QC-D2-P-S
Description
Momentary Push Button Switches 16QC Series is designed for a multitude of applications, these switches are engineered to meet the highest standards of performance and durability, making them an essential component for any electronic device.
Parameters
|
Switch rating |
Current: 0.1A |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 50,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 500MΩ |
Dielectric strength |
1000VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 150-300G |
|
Operation travel |
About 1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK10 |
Terminal type |
Wiring pins (2X0.5mm) |
|
Material |
Button: Stainless steel/Oxidized Aluminum |
LED Light |
LED color:  Three or two colors can be customized |
| Body:Stainless steel/Oxidized Aluminum |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
LED Type: Two way LED beads(AC and DC universal) |
||
| Contact: - |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

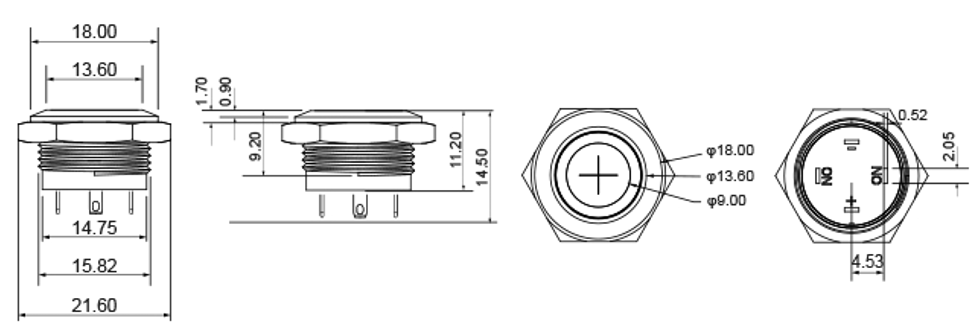

Momentary Push Button Switches Drawing
Features
1.Mounting hole size of 16mm, ensuring a seamless fit in various setups.
2.With a switch current rating of 0.1A, these switches are capable of handling low-power applications with ease, providing a dependable solution for your operational needs.
3.Crafted from premium materials, including stainless steel, nickel-plated brass, and oxidized aluminum, these switches are built to withstand the rigors of daily use while maintaining their aesthetic appeal.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
