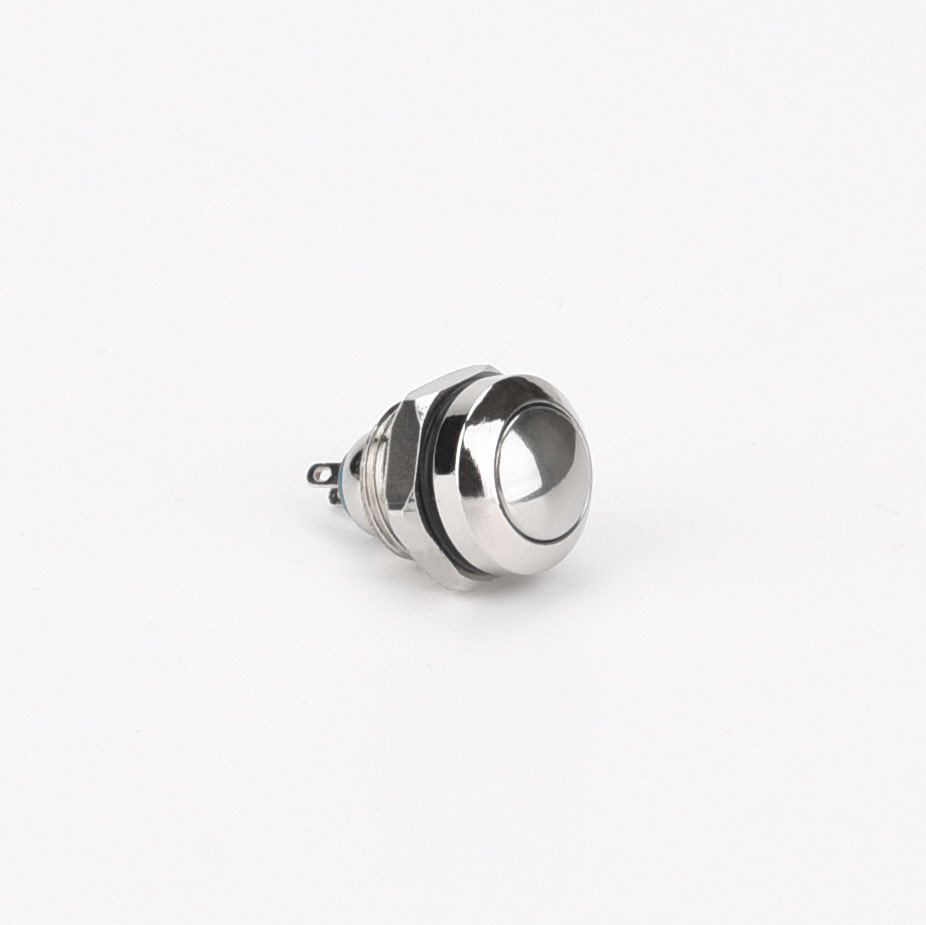

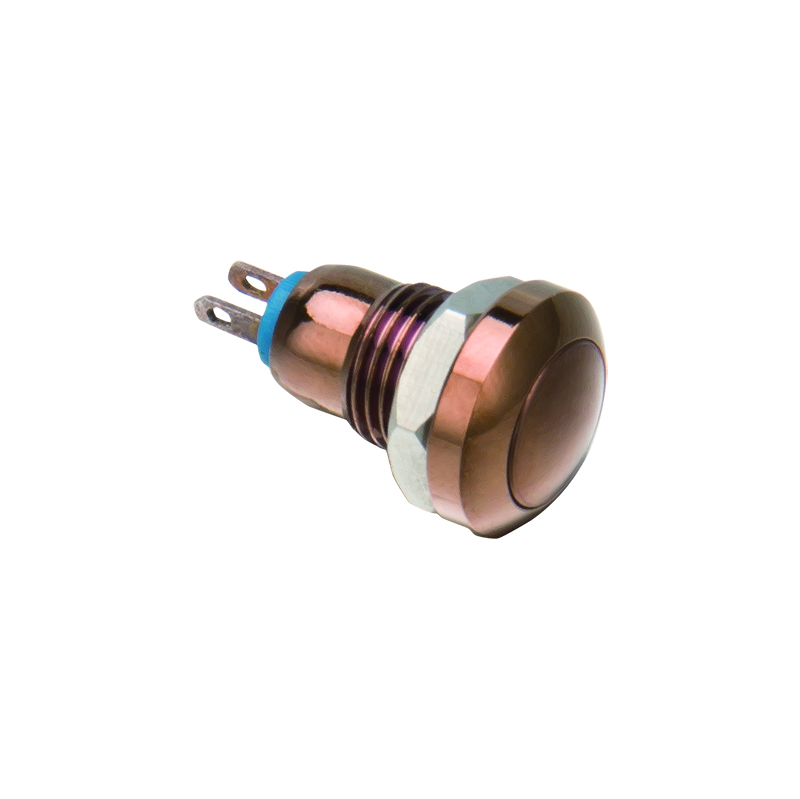

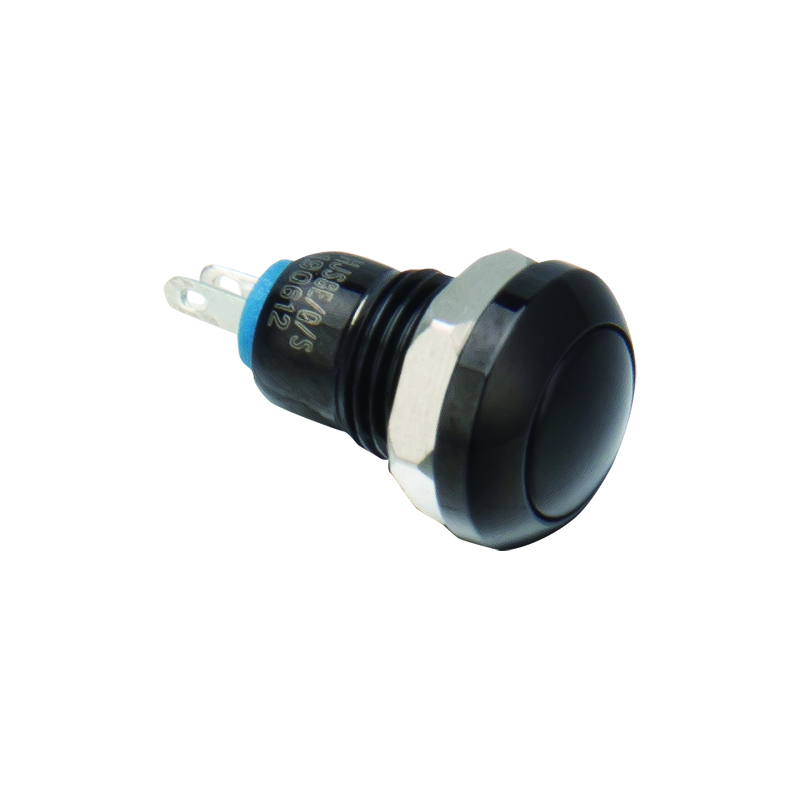

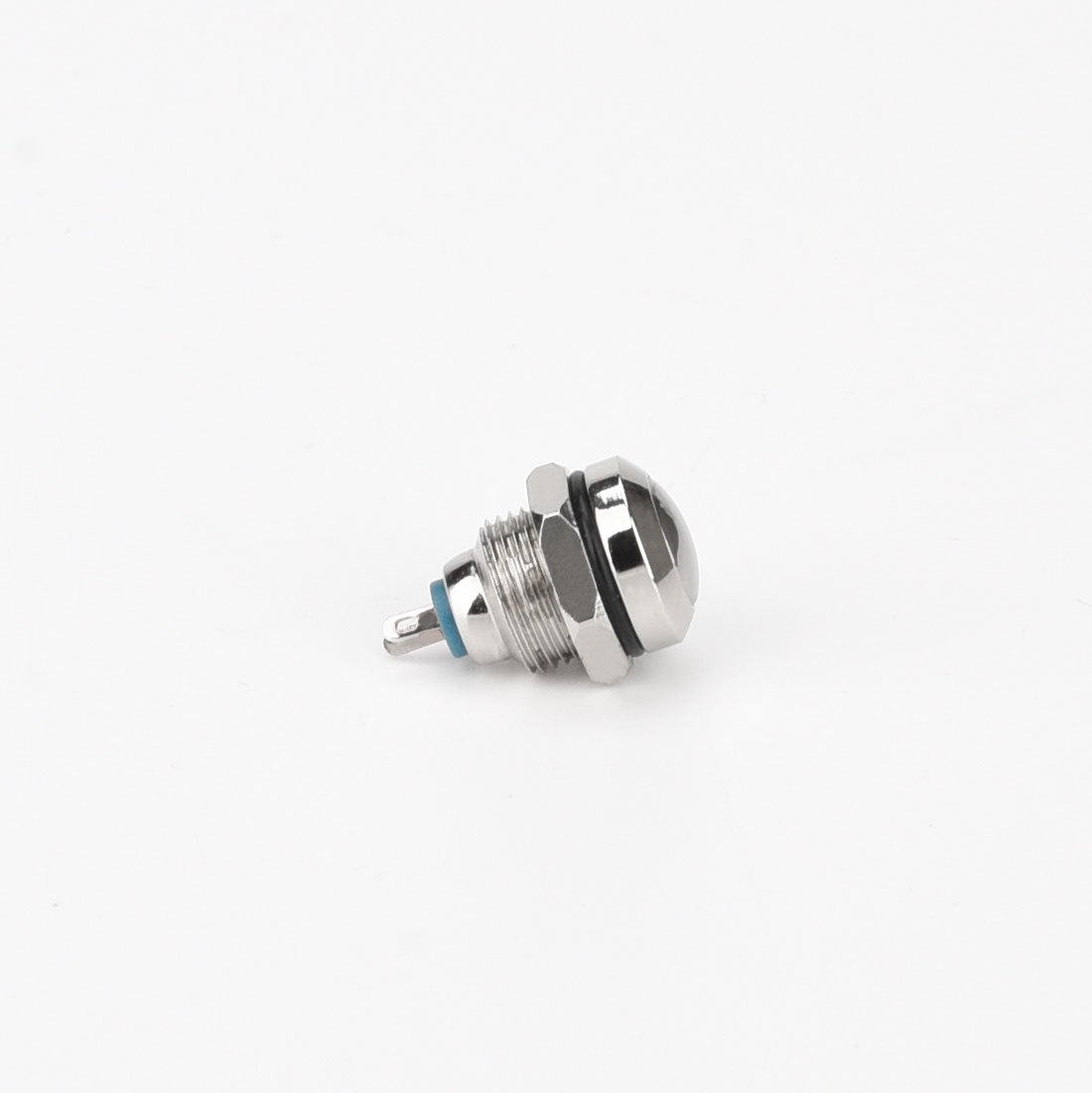

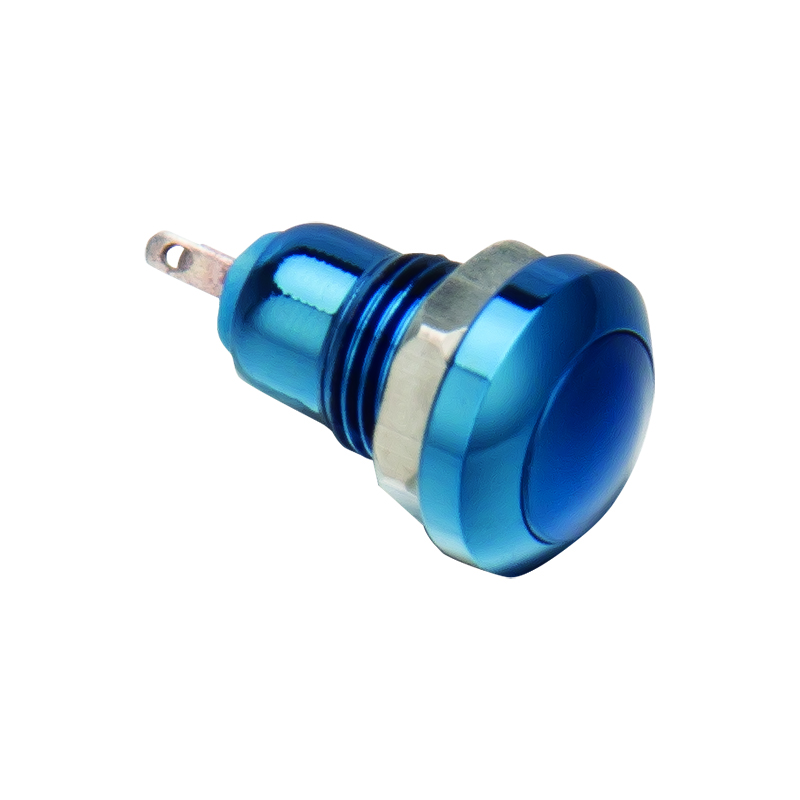

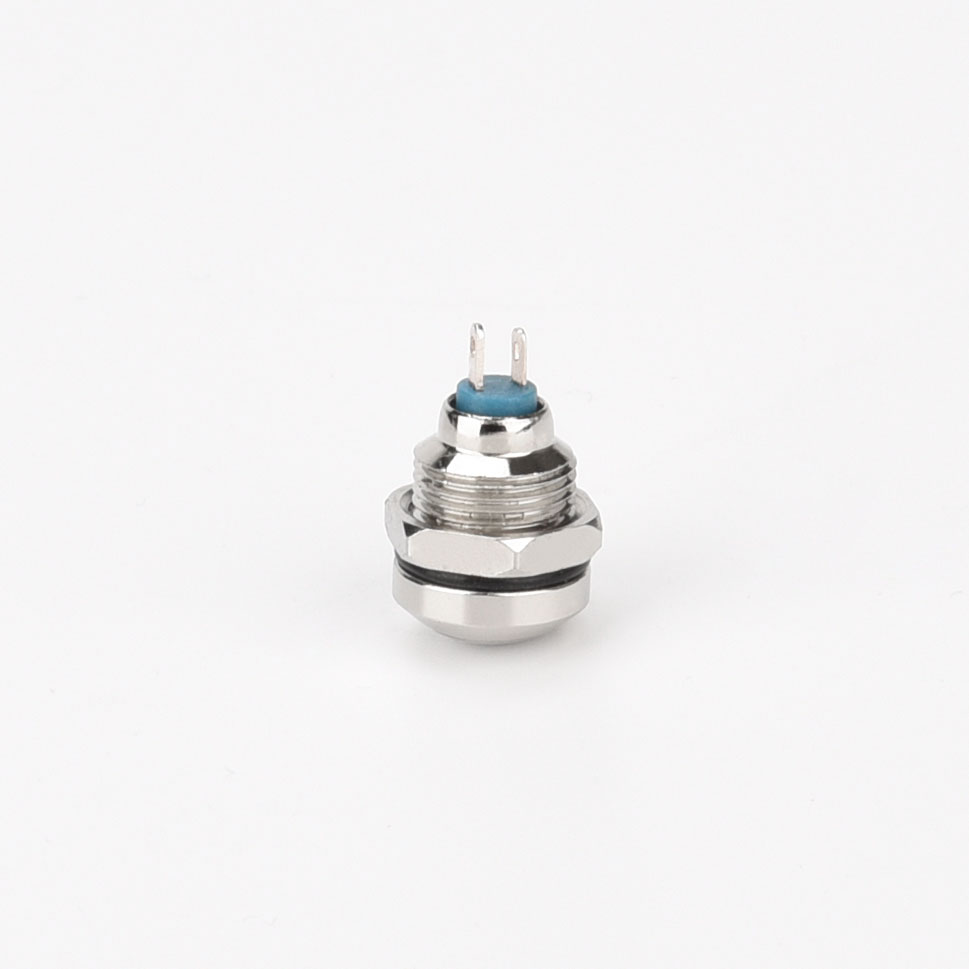

Mini Push Button 10E Series
-
HJ10E
-
HJ10E
-
HJ10E
-
HJ10E
Description
Mini Push Button Series 10E stands out as an essential component for a variety of applications. Designed with precision and efficiency in mind, this momentary push button switch is ideal for those looking for a compact solution without compromising performance.
Parameters
|
Switch rating |
Current: 2A,Voltage: 36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK08 |
Terminal type |
Wiring pins (1.5X5mm) |
|
Material |
Button: Stainless steel/Nickel Plated Brass |
||
|
Body:Stainless steel/Nickel Plated Brass |
|||
|
Base: PA |
|||
|
Contact: Silver alloy |
|||

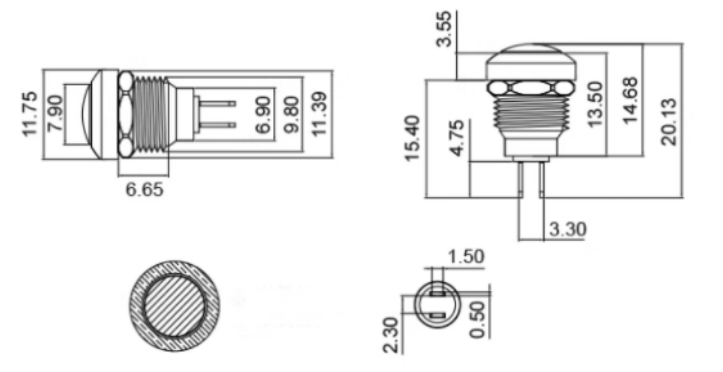

Mini Push Button Drawing
Features
1.The ultra-small size.
The mini push button switch 10E series has an ultra-small size and is ideal for installation in small spaces. Mounting hole dimensions are only 10 mm, allowing seamless integration into a variety of devices from consumer electronics to industrial machinery. Whether you’re designing a new product or upgrading an existing one, this switch provides the versatility you need.
2.The current can be reach to 2A.
The Mini Push Button Switch is its impressive 2A switch current rating. This enables it to handle a wide range of electrical loads, ensuring reliable operation in demanding environments.
3.It is designed to withstand frequent use.
The Mini Push Button is designed to withstand frequent use, providing long life and reliability, reducing the need for replacement and maintenance.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
