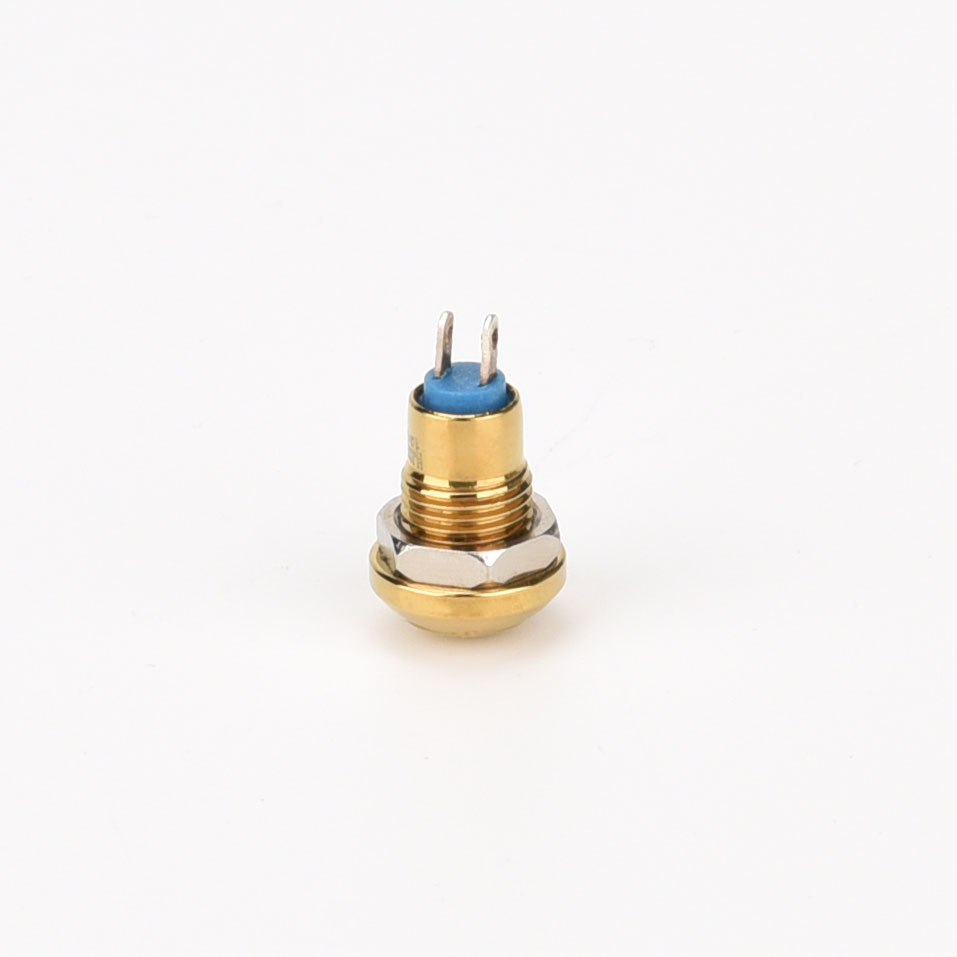

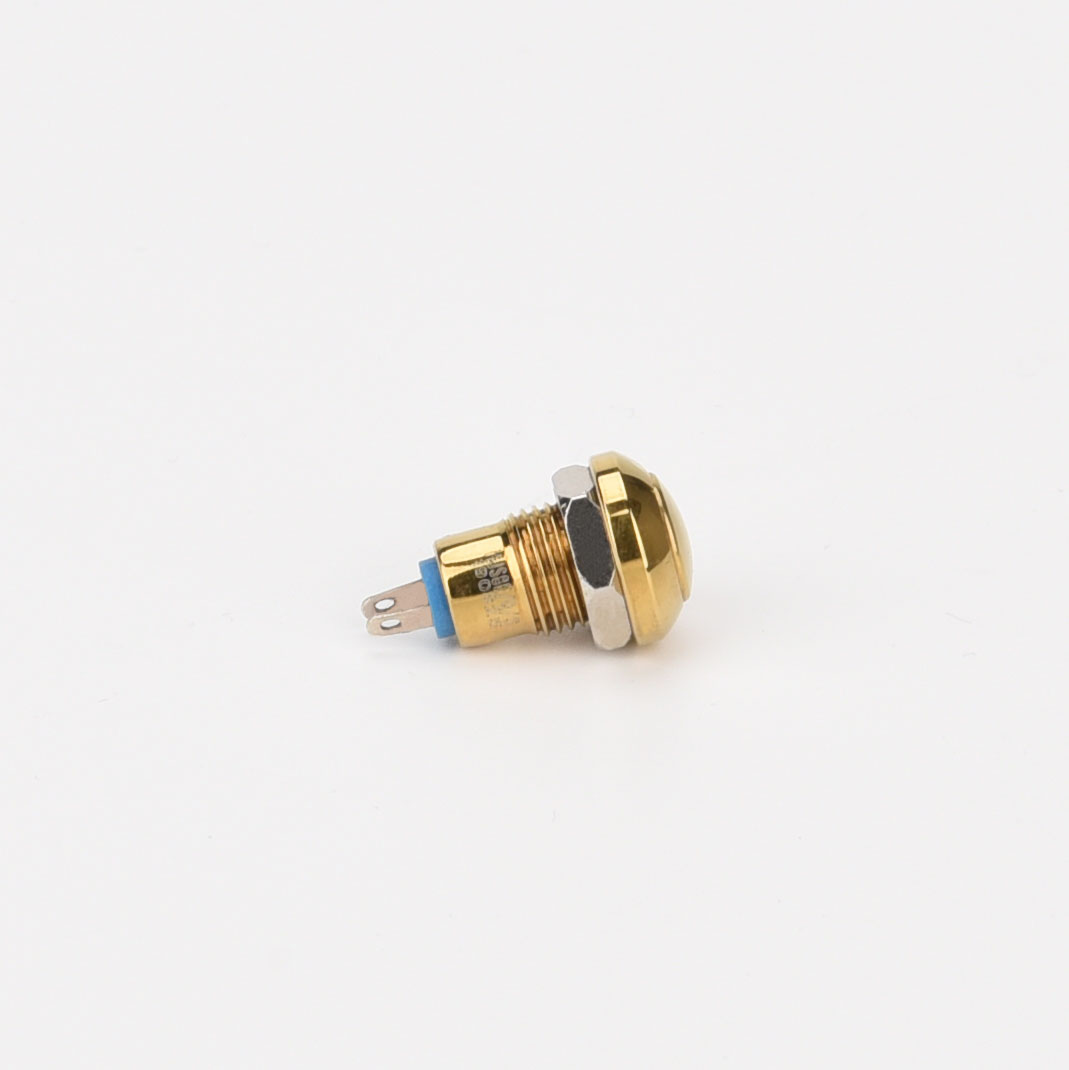

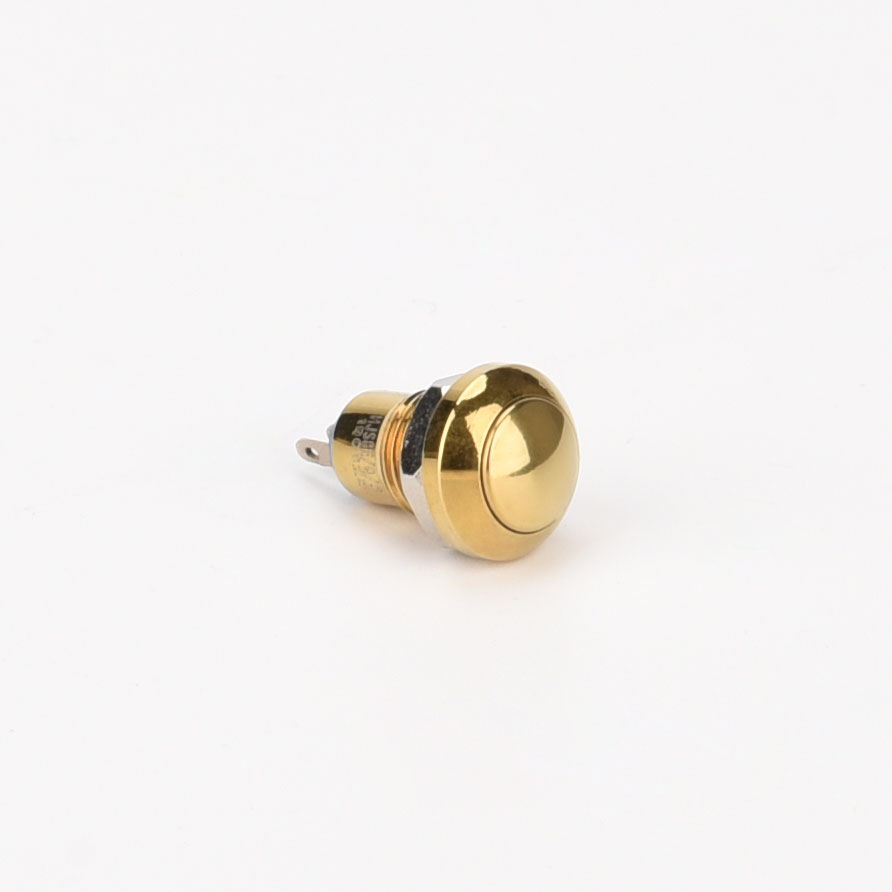

Mini Metal Push Button Switch 8E Series
-
HJ8E
-
HJ8E
-
HJ8E
-
HJ8E
Description
Mini Metal Push Button Switch is perfect for powering up computers, initiating startup sequences, or controlling various electronic devices. With a mounting hole size of just 8mm, it is designed to fit snugly into tight spaces without compromising functionality. Its sleek metal finish not only adds a touch of sophistication but also ensures durability, making it suitable for both indoor and outdoor use.
Parameters
|
Switch rating |
Current: 2A,Voltage: 36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK08 |
Terminal type |
Wiring pins (1.5X5mm) |
|
Material |
Button: Stainless steel |
||
|
Body:Stainless steel/Nickel Plated Brass |
|||
|
Base: PA |
|||
|
Contact: Silver alloy |
|||
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

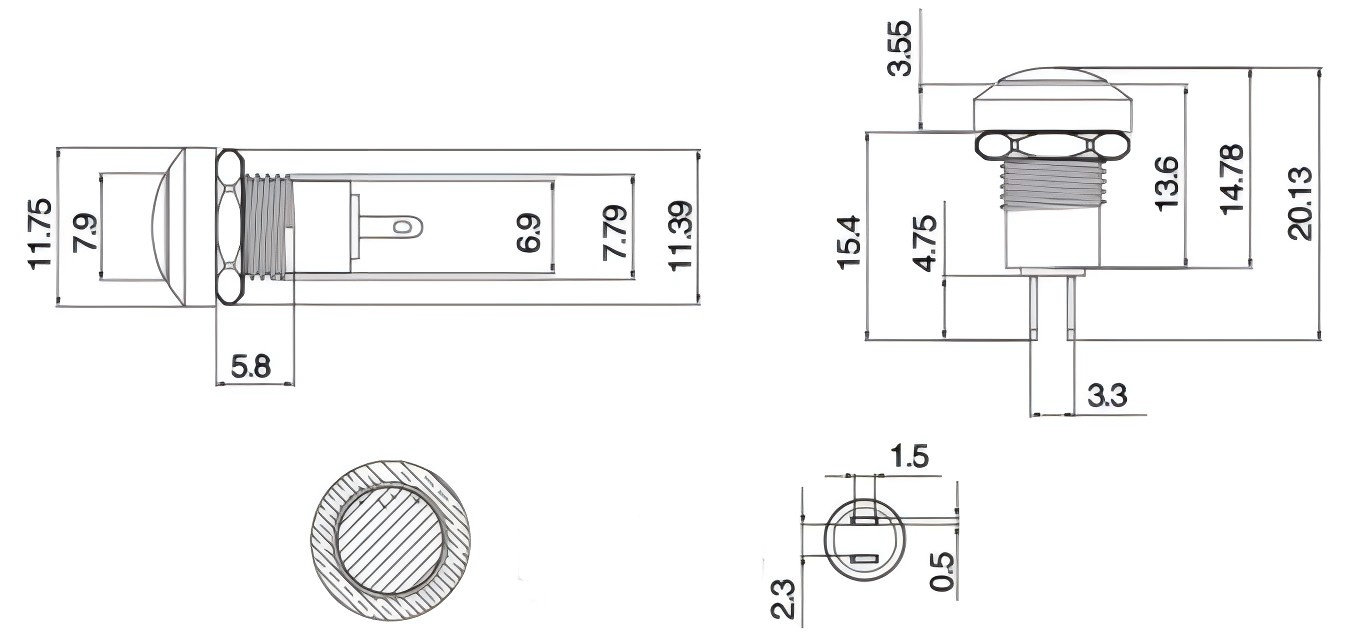

Mini Metal Push Button Switch Drawing
Features
Spherical metal button
IP65 sealed
Max.Current: 2A
Silver alloy contact,it has good conductivity, thermal conductivity, and soldering properties
Vacuum plating,it can vacuum plating 5 colors,such as blue,gold,black,coffee
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
Applications
Mini metal push button switches are versatile and suitable for a variety of applications. Use it to turn on your computer, activate your device, or serve as a reliable switch for a variety of electronic projects. Its compact size easily integrates into small spaces, ensuring you can maintain a clean and organized workspace without sacrificing functionality.
