Micro Switch Push Button 19QC Series

Micro Switch Push Button 19QC Series is a ultra thin switch,the length is just 15.7mm.
●Mounting hole size: 19mm
●Switch current: 0.1A
●Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
●Head shape: Flat head/High flat head
●Operation mode: Momentary
●Contact structure: 1NO

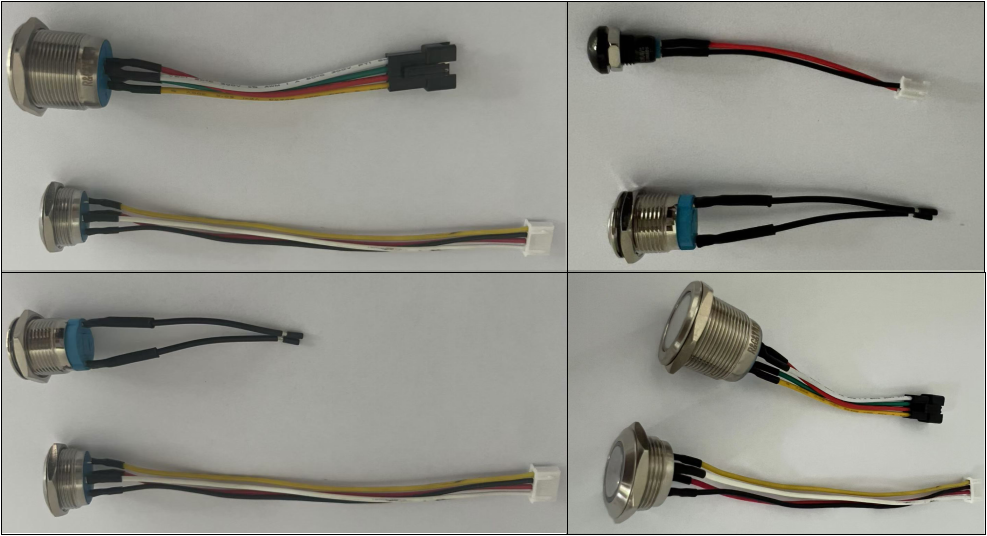

●Wiring type: Welding pins
●Protection level: IP65/IP67
If you need customized,please feel free contact HS!

Metal Signal Indicator Lamp with wire

Description

The Micro Switch Push Button 19QC Series is designed to offer maximum functionality in minimal space, hence ultra-slim sleekness measuring only 15.7mm - The switch where it is to be used in applications that call for such savings without any sacrifices.

Parameters

Switch rating	Current: 0.1A	Mechanical life	More than 200,000 times
Electrical life	More than 50,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 500MΩ	Dielectric strength	1000VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 150-300G
Operation travel	About 1mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK10	Terminal type	Wiring pins (2X0.5mm)
Material	Button: Stainless steel/Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: -		LED life: 40,000 hours

Note

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

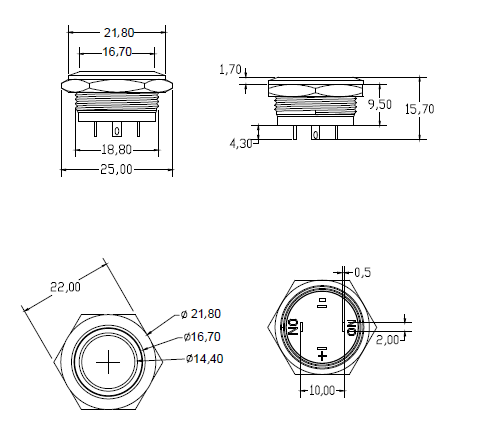

Micro Switch Push Button Drawing

Features

1.The 19QC Series comes with a mounting hole size of 19mm, a standard measure that makes integration with different panels and devices simple.

2. Three strong materials have been provided to choose from in terms of the switch: Stainless Steel, Nickel Plated Brass, or Oxidized Aluminum. Each having its advantages such as high corrosion resistance and increased strength, so the switch can be used in very different environments.

3.The mode of operating the 19QC Series is momentary, that is to say, it only remains in its active state while being pressed. This is especially useful when the activation of a switch is to be a short-duration action, for example resetting devices, triggering alarms, or enabling temporary functions.
