Metal Signal Indicator Light with Wire 10XB Series
Description
Metal Signal Indicator Light with Wire is a versatile and essential illuminating device designed to enhance the functionality and safety of your equipment. Whether you need to indicate that your machinery is powered on or to signal a malfunction, this indicator light is the perfect solution.
Parameters
|
Mounting hole size |
6/8/10/12mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm)) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

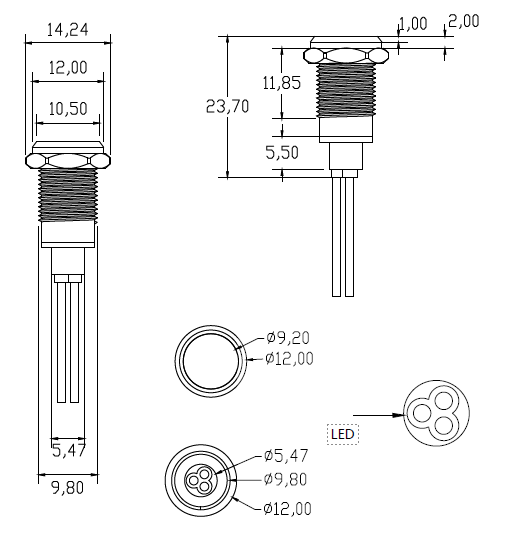

Metal Signal Indicator Light with wire Drawing
Features
1.It is made of stainless steel, nickel-plated brass, and aluminum oxidized finishes, our Metal Signal Indicator Light is built to withstand the rigors of various environments. Its durable construction ensures longevity and reliability, making it an ideal choice for industrial applications, automotive use, or any setting where clear visual signals are crucial.
2.The Hemi-Spherical head shape of the indicator light not only provides a sleek and modern aesthetic but also maximizes visibility from multiple angles. With a mounting hole size of 10mm, installation is straightforward and hassle-free, allowing you to integrate this indicator light seamlessly into your existing systems.
3.Equipped with a wiring harness, our Metal Signal Indicator Light simplifies the connection process, ensuring that you can quickly set it up and get it running.
4.Available in a variety of vibrant LED colors—red, green, yellow, blue, and white—this indicator light allows you to customize your signaling system to meet your specific needs. Each color serves a distinct purpose, whether it’s to indicate power status, alert to a malfunction, or provide general notifications.
