Metal Signal Indicator Lamp with Wire 6XB Series

Mounting hole size: 6mm
● Material:
Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head Shape:
Hemi-Spherical
● Wiring Type:
Equipped with wiring harness
● LED Color:
Red/Green/Yellow/Blue/White

● Wire Length:150mm,other length can be customized
If you need customized,please feel free contact HS!

    Description

    Metal Signal Indicator Lamp 6XB Series with wire utilizes a sophisticated circuit to power a high-quality light source, such as an LED, effectively turning the light on and off to indicate the status of your circuit or device. Whether you’re working on industrial machinery, automotive applications, or DIY electronics, this indicator lamp is an essential component for clear and reliable status signaling.

    Parameters

    Mounting hole size

    6/8/10/12mm

    Switch rating

    3~48V about 15mA 110~220V about 2mA

    Dielectric strength

    1100VAC

    Operation temperature

    -20℃ ~+55℃

    Panel thickness

    1~8mm

    Nut torque

    5~14Nm

    Protection level

    P65/IP67  IK10

    Terminal type

    Wiring pins (2.8x0.5mm))

    Material

    LED shade: Polycarbonate

    Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized

    Base: PBT

    LED type

    Two way LED beads (AC and DC universal)

    Rated voltage Ue

    3V/6V/12V/24V/36V/48V/110V/220V

    LED color

    LED color:
    • R
    • Y
    • G
    • B
    • W

    Three or two colors can be customized

    LED life

    40,000 hours

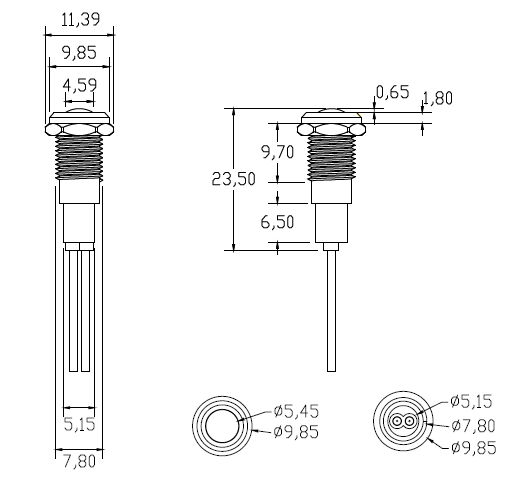

    Metal Signal Indicator Lamp with wire Drawing

    Metal Signal Indicator Lamp with wire Drawing

    Features

    1.Metal Signal Indicator Lamp features a robust construction that ensures longevity and resilience. The lamp is available in three material options: stainless steel, nickel-plated brass, and aluminum oxidized, allowing you to choose the perfect finish that suits your project’s aesthetic and environmental requirements. Each material is designed to withstand various conditions, making this lamp ideal for both indoor and outdoor applications.
    2.The head shape of the Metal Signal Indicator Lamp is hemi-spherical, providing a sleek and modern look while maximizing light dispersion.
    3.With a mounting hole size of 6mm, installation is straightforward and hassle-free, making it easy to integrate into your existing setups. The compact design ensures that it can fit into tight spaces without compromising on visibility or performance.
    4.Metal Signal Indicator Lamp with 2pcs of 150mm wire,More convenient to install on devices.
