Metal Signal Indicator 8XA Series
-
HJ8XAP/S
-
HJ8XA/S
Description
Metal Signal Indicator designed with precision and functionality in mind, these indicators are essential for anyone looking to monitor their equipment effectively. Whether your device is in the on ,off or fault state, the Metal Signal Indicator provides a clear visual cue through a vibrant LED light, ensuring you are always informed of its operational status.
Parameters
|
Mounting hole size |
6/8/10/12/16/19/22mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

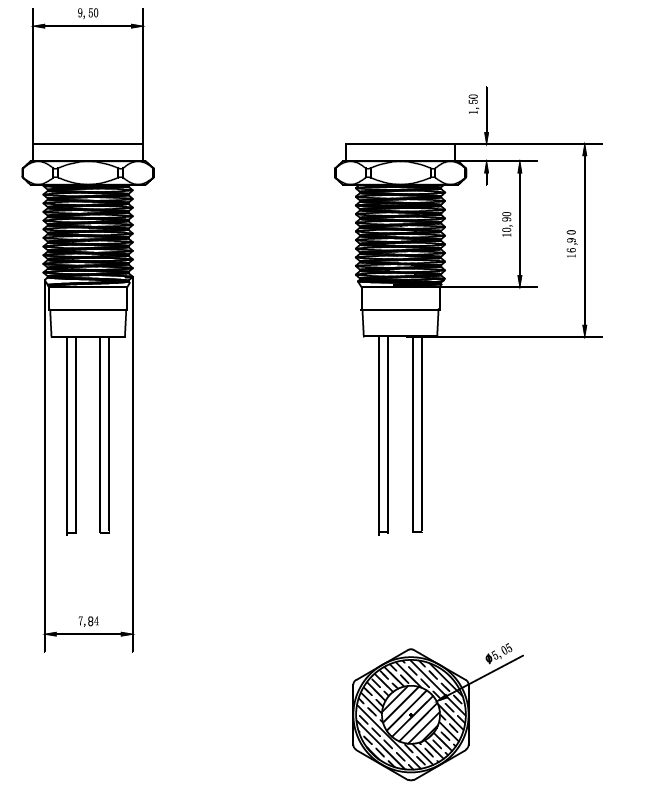

Metal Signal Indicator 8XA Series Drawing
Features
1.Made of high quality materials, including stainless steel, nickel-plated brass, and aluminum oxidized finishes, the Metal Signal Indicator is built to withstand the rigors of various environments. Its durable construction not only enhances longevity but also adds a touch of sophistication to your devices.

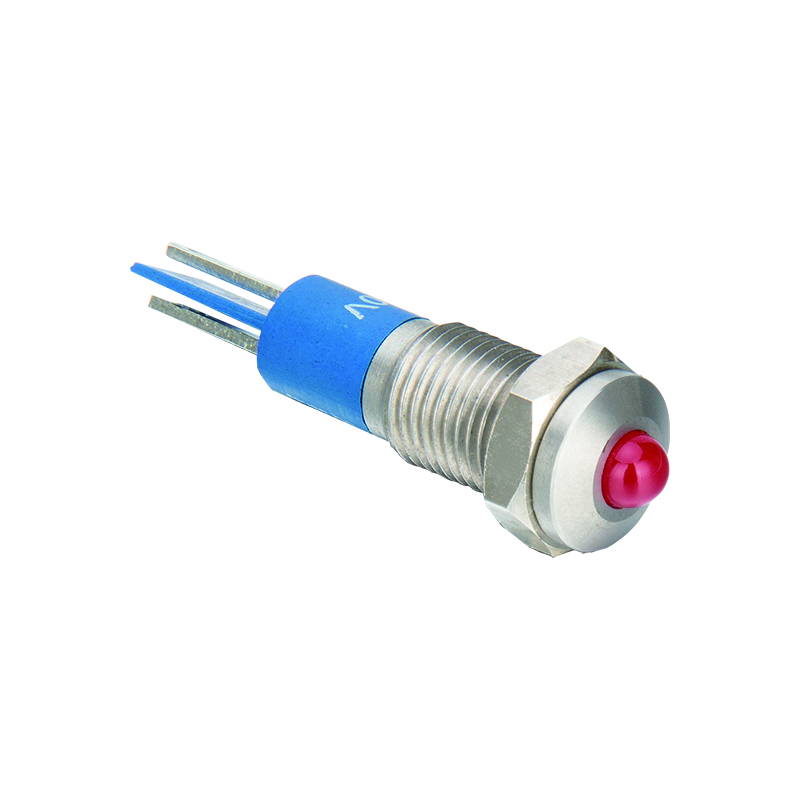

2.The spherical head shape offers a modern aesthetic while ensuring optimal light diffusion for maximum visibility.
3.With a convenient mounting hole size of 8mm, installation is a breeze, and you can choose between welding pins or screw terminal types for added flexibility. This versatility makes the Metal Signal Indicator an ideal choice for a wide array of devices, from industrial machinery to consumer electronics.
4.Available in a range of LED colors: red, green, yellow, blue, and white.The Metal Signal Indicator allows for customizable signaling that can be tailored to your specific needs.
