Metal Selector Switch 19A-CY Series
-

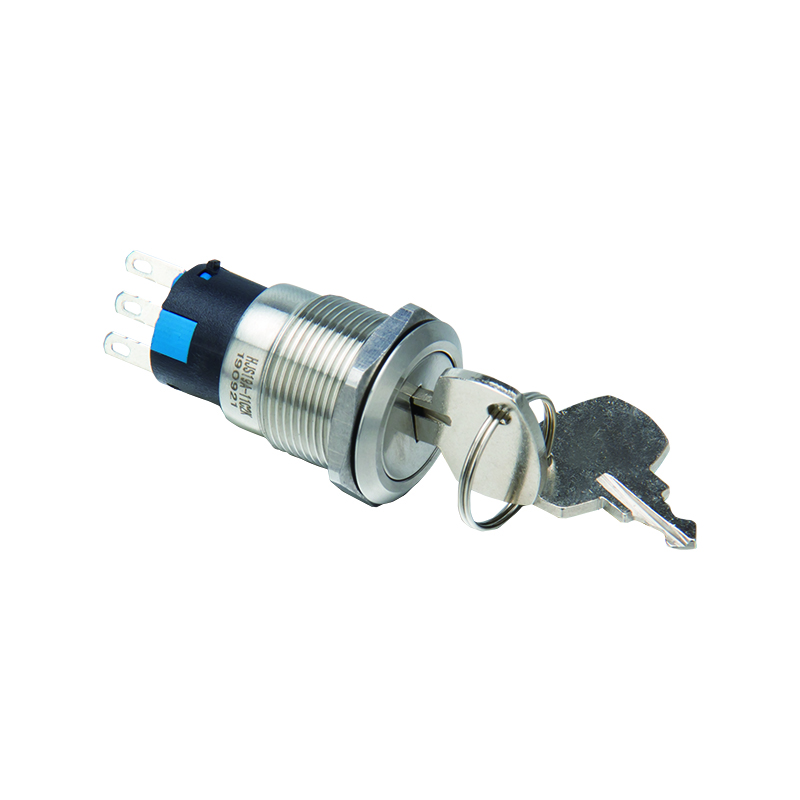

HJ19A-C/K/Q
-

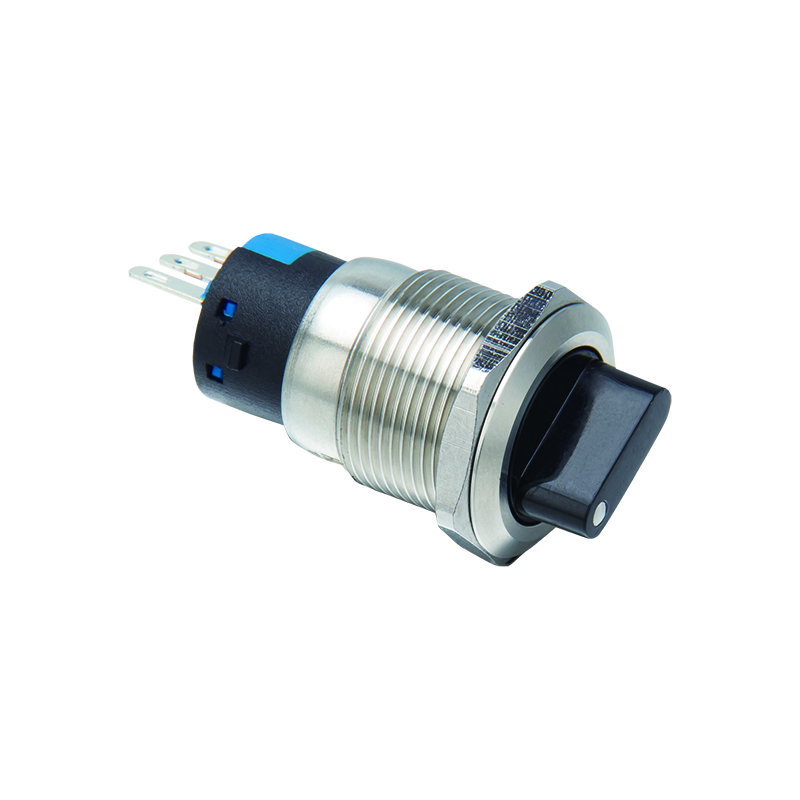

HJ19A-C/Y/Q
-

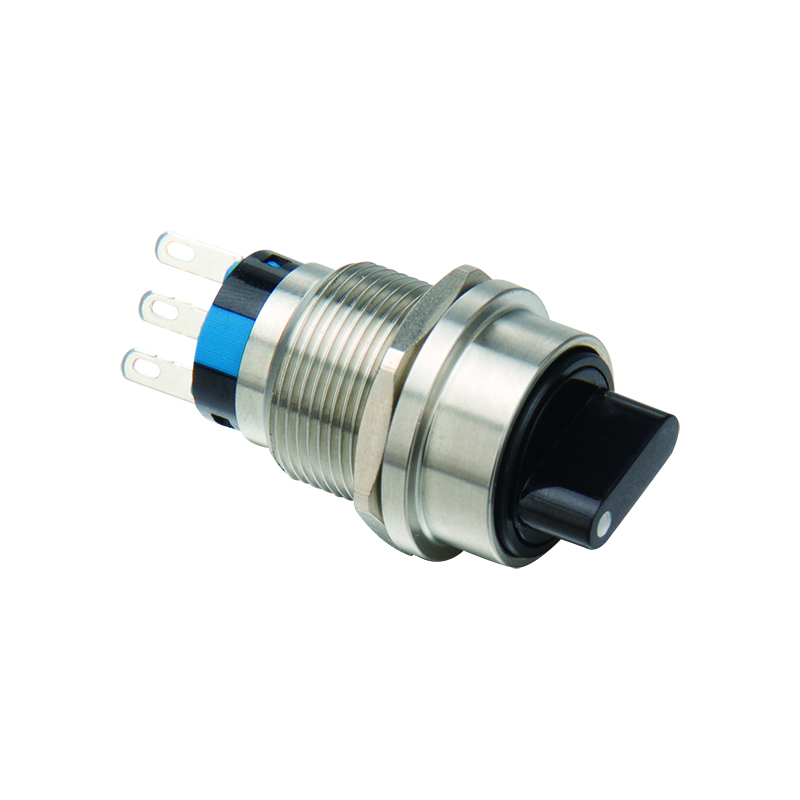

HJ19A-CT/Y/Q
Description
Metal selector switches 19A-CY Series, a rugged and reliable solution designed to enhance your control of your circuits. This high-quality device is designed to start or stop the flow of electricity in one or more circuits, making it an important component in a variety of applications in industrial and commercial environments.
Parameters
|
Switch rating |
Current: 3A |
Mechanical life |
More than 100,000 times |
|
Electrical life |
More than 50,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3N-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP40 |
Terminal type |
Wiring pins (2.8X9mm) |
|
Material |
Button: Stainless steel |
||
|
Body:Stainless steel |
|||
|
Base: PA |
|||
|
Contact: Silver alloy |
|||
Note:
*Two position self-locking, lock by rotating to the right, reset by rotation

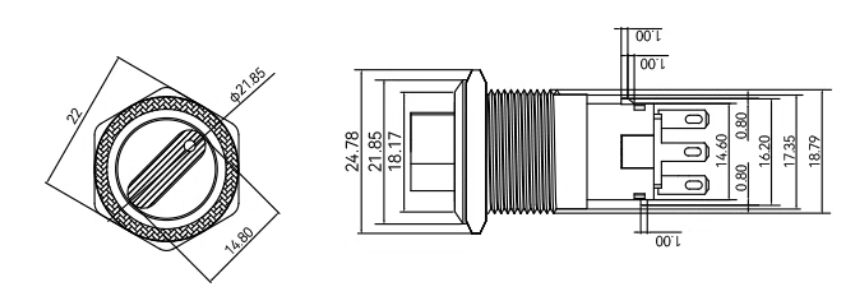

Metal Selector Switch Drawing
Features
1.The metal selector switch is constructed from durable stainless steel, which not only provides superior strength and longevity, but also provides a stylish and professional look. Its corrosion-resistant properties ensure it can withstand harsh environments, making it ideal for use in demanding conditions. The switch’s mounting hole size is 19mm, making it easy to install in a variety of panels and enclosures.
2.The metal selector switch 19A-CY series has two operating modes: two-position and three-position. This versatility allows users to choose the configuration that best suits their specific needs, whether it is simple on/off control or more complex multi-circuit operation.
3. With a switch current rating of 3A, the device is capable of handling a wide range of electrical loads, ensuring reliable performance in any application.
