Metal Push Button Switch

Mini metal push button switch also named Miniature push button.It is used for Computer or power startup.
 ● Mounting hole size: 8mm
 ● Switch current: 2A
 ● Material: Stainless steel/Nickel plated Brass
 ● Head shape: Spherical
 ● Operation mode: Momentary
 ● Contact structure: 1NO
 ● Color: Sliver/Blue/Black/Golden/Coffee
If you need customized,please feel free contact HS!

Mini push button 10E series is a momentary push button switch,the ultra small volume can meet the smaller installation space.
● Mounting hole size: 10mm
● Switch current: 2A
● Material: Stainless steel/Nickel plated Brass
● Head shape: Spherical
● Operation mode: Momentary
● Contact structure: 1NO
● Protection level: IP65
● Color: Sliver/Blue/Black/Golden/Coffee
If you need customized,please feel free contact HS!

Anti-Vandal Pushbutton Switches also named vandal resistant push button switches.The max current can be reach to 3A.
● Mounting hole size: 12mm
● Switch current: 2A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO
● LED Color: Red/Green/Yellow/Blue/White
● Protection level: IP65
If you need customized,please feel free contact HS!

Round Metal Push Button Switch 12C(PBS-33B) series is a mini push button switch.
● Mounting hole size: 12mm
● Switch current: 2A
● Material: Stainless steel/Nickel Plated Brass
● Head shape: Spherical/High head
● Operation mode: Latching/Momentary
● Contact structure: 1NO
● Protection level: IP65/IP67
● Button Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Stainless Steel Push Button also named Illumination Push Button Switch.The max current can be reach to 2A.
 ● Mounting hole size: 12mm
 ● Switch current: 2A
 ● Material: Stainless steel/Chrome plated Brass/Aluminum Oxidized
 ● Head shape: Flat Head/High Flat Head
 ● Operation mode: Momentary/Latching
 ● Contact structure: 1NO
 ● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Illuminated Push button Switches also named push button light switch.The max current can be reach to 0.1A.
● Mounting hole size: 12mm
● Switch current: 0.1A
● Material: Stainless steel/Chrome plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary
● Contact structure: 1NO
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

● Mounting hole size: 16mm
●Switch current: 2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK10
If you need customized,please feel free contact HS!

● Mounting hole size:16mm
●Switch current:3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape:Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure:1NO 1NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65
If you need customized,please feel free contact HS!

Momentary Push Button Switches 16QC Series is a micro switch push button.

• Mounting hole size:16mm
• Switch current:1A
• Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
• Head shape:Flat head/High flat head
• Operation mode: Momentary
• Contact structure:1NO
• Wiring type: Welding pins
• Protection level: IP65/IP67

If you need customized,please feel free contact HS!

Mushroom Push Button 16BC Series is a momentary metal push button switch with screw terminal.

• Mounting hole size:16mm
• Switch current:2A
• Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
• Head shape:Mushroom head
• Operation mode: Momentary
• Contact structure:1NO
• Wiring type: Screw
• Protection level: IP65
• Mushroom head color: Red/Black/Blue/Green,other color can be customized

If you need customized,please feel free contact HS!

Push Button On Off Switch 16B Series is a momentary metal push button switch with welding pins or screw wiring type.

• Mounting hole size:16mm
• Switch current:2A
• Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
• Head shape:Spherical/Flat Head/High Flat Head
• Operation mode: Momentary
• Contact structure:1NO
• Wiring type: Welding pins/Screw
• Protection level: IP65

If you need customized,please feel free contact HS!

Metal push button switch also named metal push button,it is used for control panels,industrial instruments.The current can be reach to 20A.
● Mounting hole size: 16mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
● LED voltage: AC/DC 3V/6V/12V/24V/36V/48V/110V/220V
If you need customized,please feel free contact HS!

16mm Momentary Push Button Switch also named self-reset Push Button Switch.The max current can be reach to 2A.
● Mounting hole size: 16mm
● Switch current: 2A
● Material: Stainless steel/Chrome plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary
● Contact structure: 1NO
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Push button light switch 16A7 Series also named illuminated push button switches.The current can be reach to 3A.
● Mounting hole size: 16mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● Protection level: IP67
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Push Button Switch DPDT 16A6 Series has two normally open foot and two normally closed foot, it can switch two different circuit paths simultaneously.
● Mounting hole size: 16mm
● Switch current: 3A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 2NO 2NC
● LED Color: Red/Green/Yellow/Blue/White
● Protection level: IP65
If you need customized,please feel free contact HS!

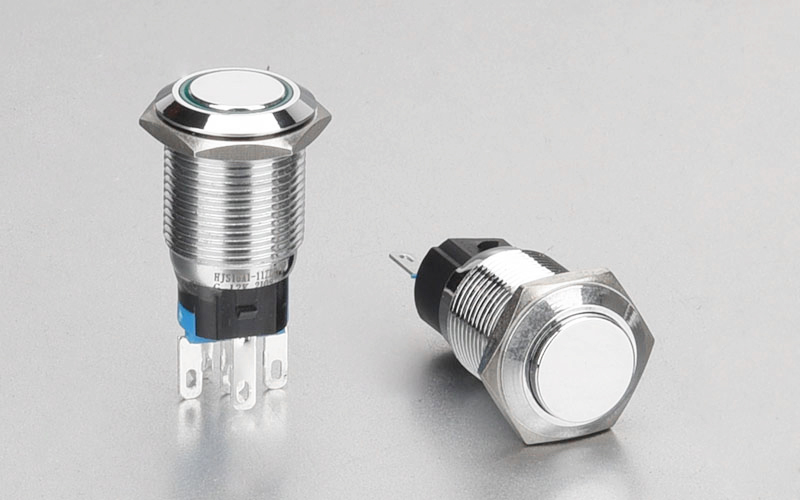

Panel Mount Push Button Switches 16A2 series is suitable for installing various types of panels with mounting hole size 16mm.
● Mounting hole size: 16mm
● Switch current: 3A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● LED Color: Red/Green/Yellow/Blue/White
● Protection level: IP65
If you need customized,please feel free contact HS!

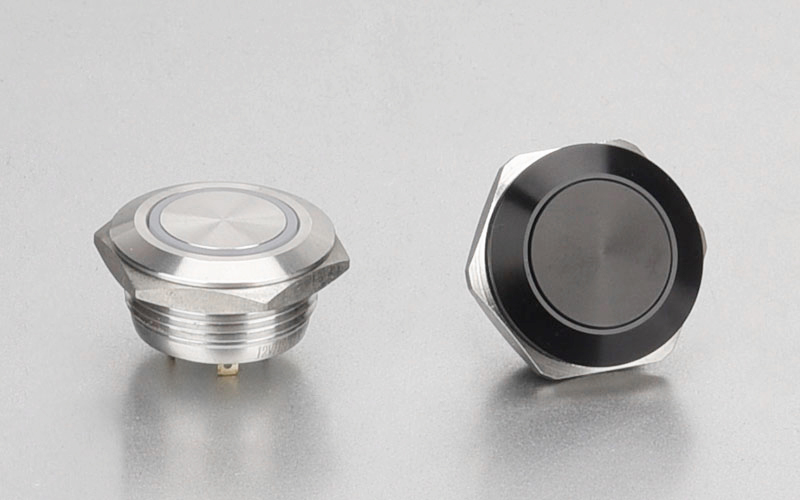

Micro Switch Push Button 19QC Series is a ultra thin switch,the length is just 15.7mm.
●Mounting hole size: 19mm
●Switch current: 0.1A
●Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
●Head shape: Flat head/High flat head
●Operation mode: Momentary
●Contact structure: 1NO
●Wiring type: Welding pins
●Protection level: IP65/IP67
If you need customized,please feel free contact HS!

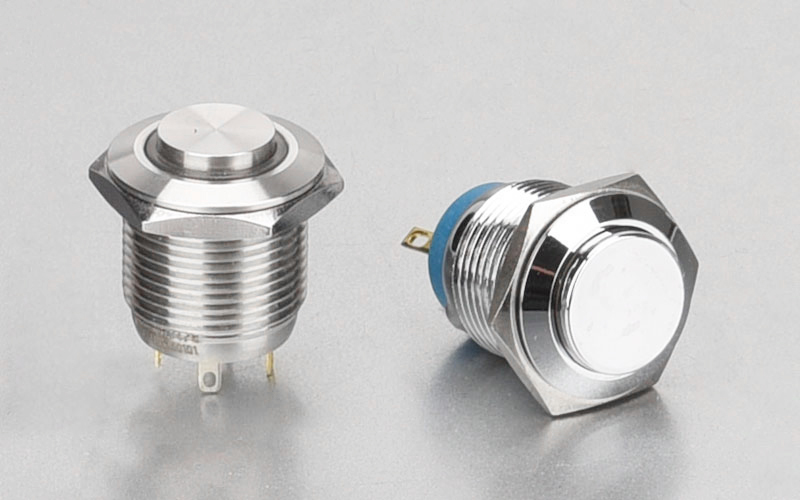

On Off Switch 19C Series is a led push button switch.The mounting hole diameter is 19mm.
●Mounting hole size: 19mm
●Switch current: 2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK10
If you need customized,please feel free contact HS!

Illuminated Push button Switches 19B Series is a momentary push button switch.The wiring type is screw or welding pins.
●Mounting hole size: 19mm
●Switch current: 2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Spherical/Flat Head/High Flat Head
●Operation mode: Momentary
●Contact structure: 1NO
●Wiring type: Welding pins or screw
●Protection level: IP65/IP67 IK09
If you need customized,please feel free contact HS!

●Mounting hole size: 19mm
●Switch current: 3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO 1NC/2NO 2NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65
If you need customized,please feel free contact HS!

20A Push Button Switch 19M Series is a high current push button,it can meet more load requirements.The button surface can be customized with various patterns to distinguish the switch function.
● Mounting hole size: 19mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
If you need customized,please feel free contact HS!

Push Button Momentary Switch 19A7 Series also named Self-Reset Push Button Switch.The protection level is IP67.
● Mounting hole size: 19mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

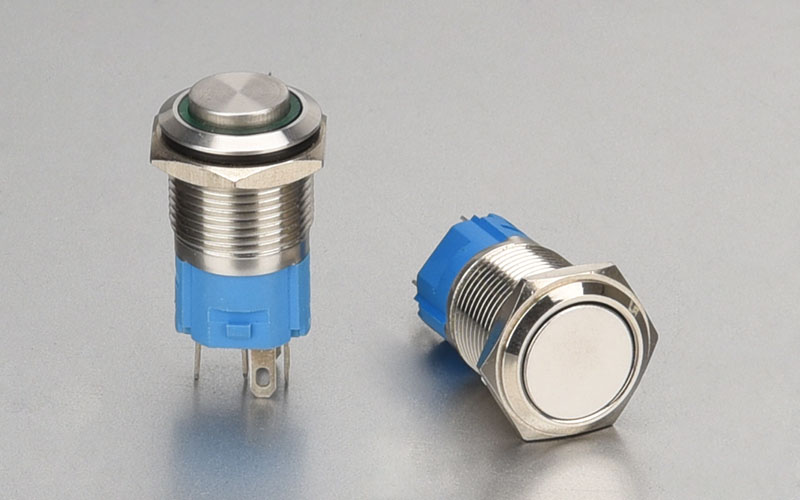

LED Illuminated Push Button Switch 19A2 series also named Push Button Light Switch.It is made of Stainless steel,Nickel plated Bras or Aluminum Oxidized.
● Mounting hole size: 19mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● Protection level: IP65
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

Black Push Button Switch 22M Series is made of aluminum oxidized,the switch current can be reach to 20A.

● Mounting hole size: 22mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO 1NC/2NO/2NC
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
● LED voltage: AC/DC 3V/6V/12V/24V/36V/48V/110V/220V
If you need customized,please feel free contact HS!
