22mm
Ultra thin metal push button switch 22QC Series
Ultra thin metal push button switch are commonly used in consumer electronics, automotive controls, medical devices, and industrial panels where a sleek, modern design is required.
●Mounting hole size:22mm
●Switch current:1A
●Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
●Head shape:Flat head/High flat head
●Operation mode: Momentary
●Contact structure:1NO
●Wiring type: Welding pins
●Protection level: IP65/IP67
If you need customized,please feel free contact HS!
22QC Series
● Mounting hole size: 22mm
● Switch current: 1A
● Head shape: Flat head/High flat head
Push button metal 22F Series
Push button metal 22F is made of Stainless steel,nickel plated brass or aluminum oxidized.And the mounting hole size is 22mm,25mm and 30mm.It is used as a practical circuit control tool, metal button switches have diverse operation modes and flexible on/off control, making circuit modification both aesthetically pleasing and efficient. In addition, the diversity of its size allows us to select the most suitable switch according to different scenarios, thereby simplifying the process of circuit modification.
●Switch current:5A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape:Flat Head/High Flat Head
●Operation mode: Momentary/Latching
●Contact structure:1NO 1NC/2NO 2NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65 IK10
If you need customized,please feel free contact HS!
22F Series
● Mounting hole size: 22mm
● Switch current: 5A
● Head shape: Flat Head/High Flat Head
Push Switch 22C Series
Push Switch 22C Series is a small push button used for panel mounting.The mounting hole size is 22mm and the current can be reach to 2A.
●Switch current:2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape:Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure:1NO
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK10
If you need customized,please feel free contact HS!
22C Series
● Mounting hole size: 22mm
● Switch current: 2A
● Head shape: Flat Head/High Flat Head/Spherical
22BC Series Mushroom Push Button Switch
The 22BC Series Mushroom Push Button Switch is an industrial-grade emergency stop (E-stop) or control switch with a larger actuator head for enhanced visibility and quick operation.
●Mounting hole size:22mm
●Switch current:2A
●Material: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
●Head shape:Mushroom head
●Operation mode: Momentary
●Contact structure:1NO
●Wiring type: Screw
●Protection level: IP65
●Mushroom head color: Red/Black/Blue/Green,other color can be customized
22BC Series
● Mounting hole size: 22mm
● Switch current: 2A
● Head shape: Mushroom head

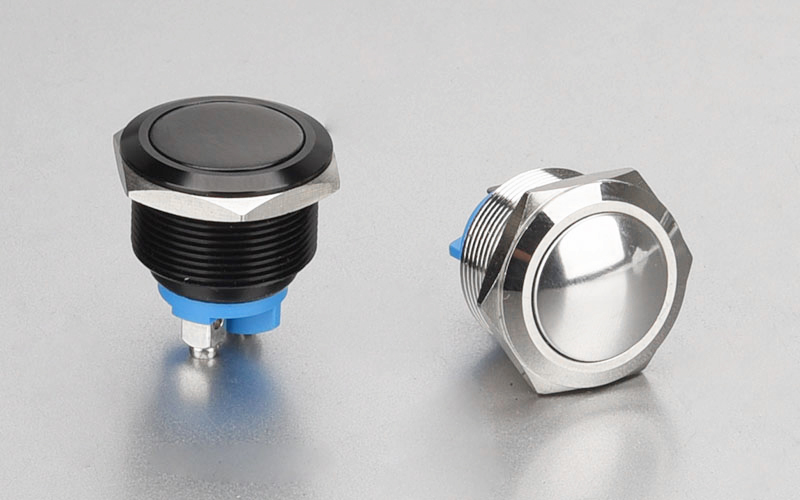

Push Button Switch 22mm 22B Series
Push Button Switch 22mm 22B Series is a metal push button switch which current can be reach to 2A.The operation mode is momentary.
●Mounting hole size:22mm
●Switch current:2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape:Spherical/Flat Head/High Flat Head
●Operation mode: Momentary
●Contact structure:1NO
●Wiring type: Welding pins or screw
●Protection level: IP65/IP67 IK09
If you need customized,please feel free contact HS!
22B Series
● Mounting hole size: 22mm
● Switch current: 3A
● Head shape: Flat Head/High Flat Head/Spherica

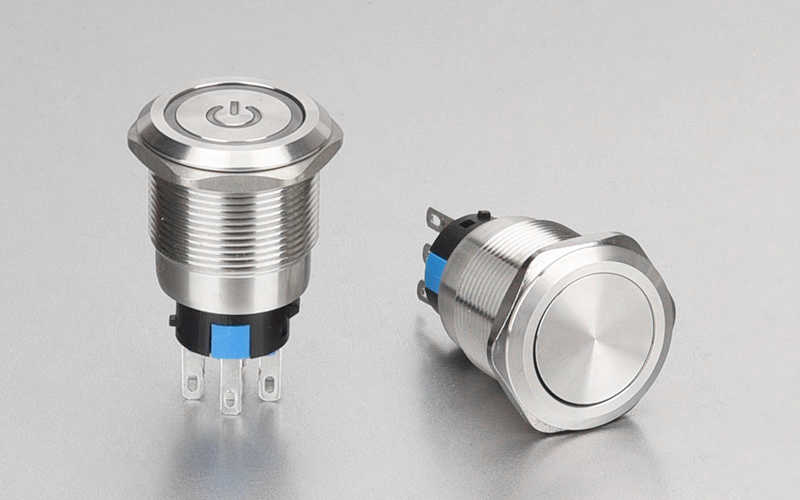

Stainless Steel Push Button 22A Series
The Stainless Steel Push Button 22A Series supports a 3A current rating , making it suitable for low to moderate power applications. The momentary or latching operation modes provide flexibility for various control needs, whether for start/stop functions or sustained activation.
●Mounting hole size: 22mm
●Switch current: 3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO 1NC/2NO 2NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65/IP67 IK09
If you need customized,please feel free contact HS!
22A Series
●Mounting hole size: 22mm
●Switch current: 3A
●Head shape: Flat Head/High Flat Head/Spherica
Black Push Button Switch 22M Series
Black Push Button Switch 22M Series is made of aluminum oxidized,the switch current can be reach to 20A.
● Mounting hole size: 22mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO 1NC/2NO/2NC
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
● LED voltage: AC/DC 3V/6V/12V/24V/36V/48V/110V/220V
If you need customized,please feel free contact HS!
22M Series
● Mounting hole size: 22mm
● Switch current: 20A
● Head shape: Flat round/High flat round/Spherical
Push Button Starter Switch 22A7 Series
● Mounting hole size: 22mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC/2NO 2NC
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!
22A7 Series
● Mounting hole size: 22mm
● Switch current: 3A
● Head shape: Flat Head/High Flat Head

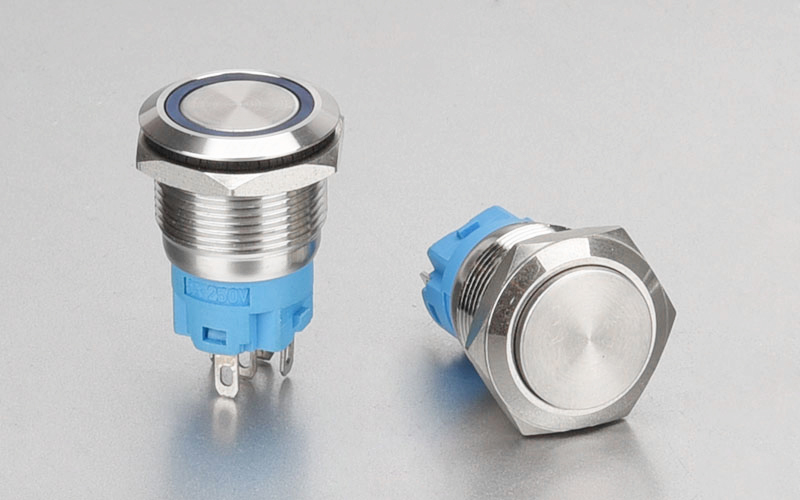

Push Button On Off Switch 22A2 Series
● Mounting hole size: 22mm
● Switch current: 3A
● Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC/2NO 2NC
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!
22A2 Seriess
● Mounting hole size: 22mm
● Switch current: 3A
● Head shape: Flat Head/High Flat Head
