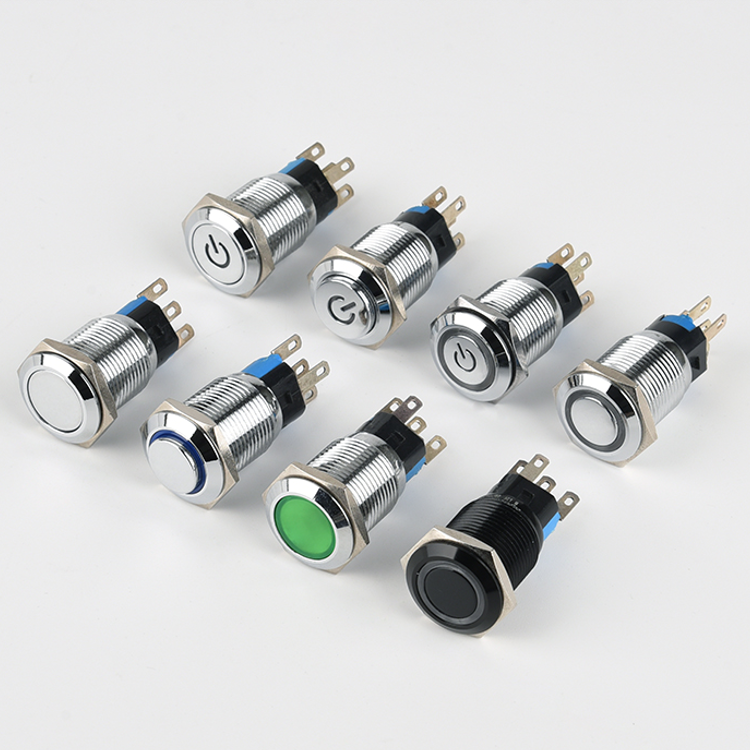

Led Push Button 16A Series

● Mounting hole size:16mm
●Switch current:3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape:Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure:1NO 1NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65
If you need customized,please feel free contact HS!

Metal Signal Indicator Lamp with wire

Description

Led Push Button 16A Series is designed with versatility and durability in mind, this push button switch features a 16mm mounting hole size for easy integration into a variety of devices and panels.

Parameters

Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins (2.8X9mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V /48V/110V/220V
	Base: PBT		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40,000 hours

Note

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

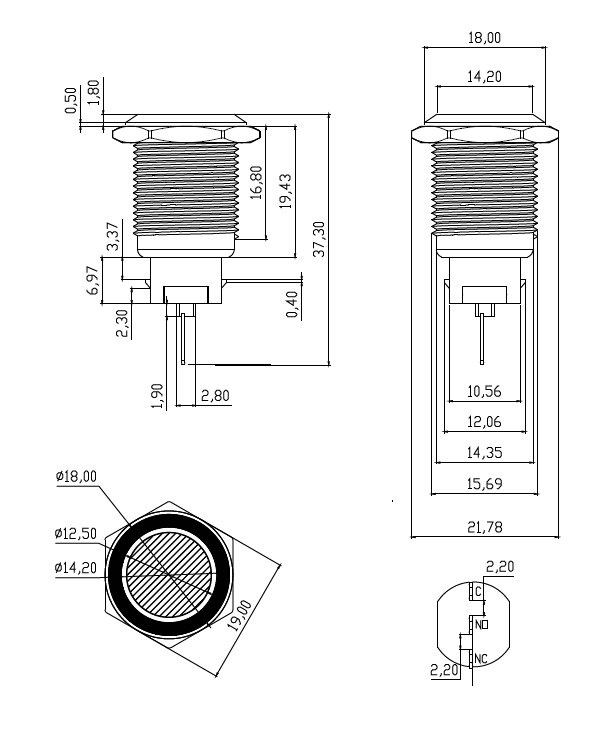

Led Push Button Drawing

Features

1.Made from premium materials including stainless steel, nickel-plated brass, and anodized aluminum finishes, our LED pushbutton switches withstand the rigors of everyday use while maintaining a sleek, modern look.

2.With a switching current of 3A, this pushbutton switch is able to handle a wide range of electrical loads, making it suitable for both industrial and consumer applications. You can choose between momentary and latching operating modes to meet your specific needs, whether you require temporary activation or a continuous connection.

3.1NO (Normally Open) and 1NC (Normally Closed) contact structures ensure you have the flexibility to configure the circuit as needed. In addition, red, green, yellow, blue and white LED options allow for easy visual indication, enhancing user experience and functionality.

4.Our LED pushbutton switches are IP65 rated for protection against dust and water, ensuring reliable operation in harsh environments. Whether you are designing a control panel, a DIY project, or an industrial machine, this pushbutton switch is ideal for creating a rugged and attractive interface.
