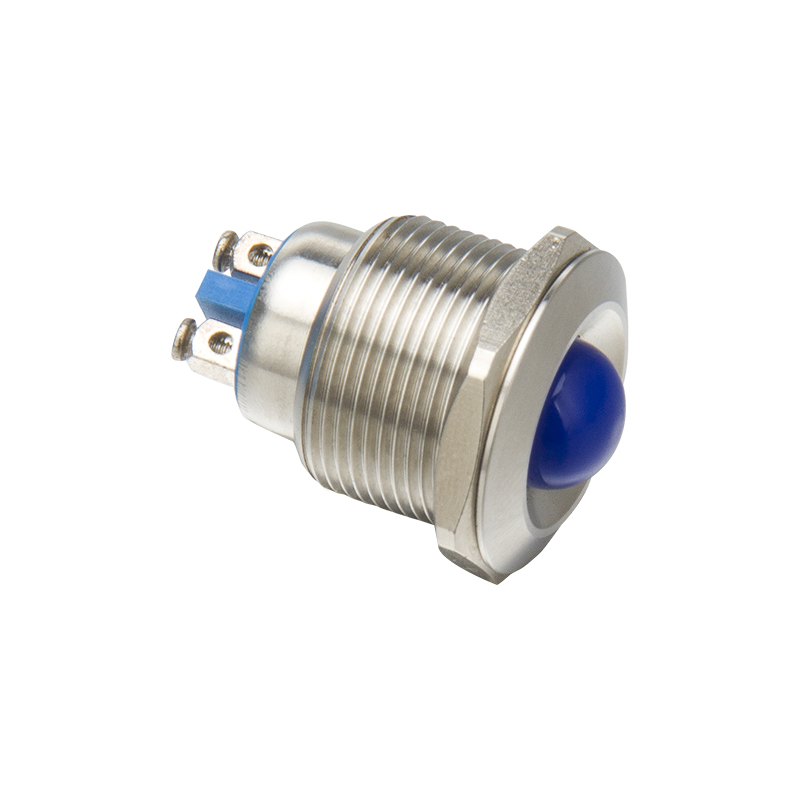

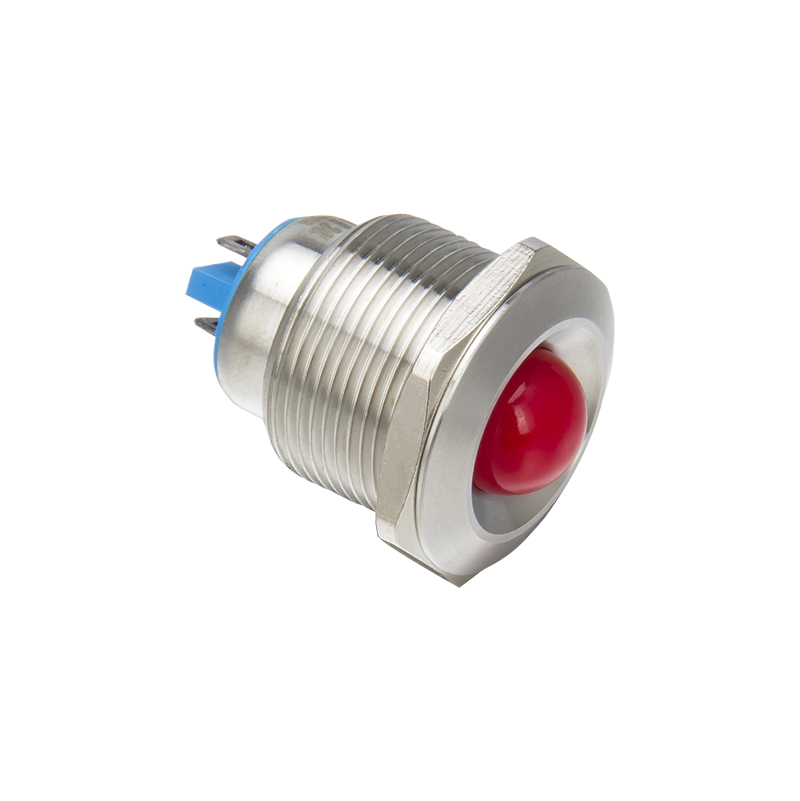

Led Metal Indicator Light 19XA Series
-
HJ19XA/S
-
HJ19XA/M
Description
Led Metal Indicator Light is a perfect blend of durability and functionality, designed to enhance your projects with vivid lighting. Well crafted and with a 19mm mounting hole size, this indicator is perfect for a variety of applications from automotive dashboards to industrial control panels.
Parameters
|
Mounting hole size |
6/8/10/12/16/19/22mm |
Switch rating |
3~48V about 15mA 110~220V about 2mA |
|
Dielectric strength |
1100VAC |
Operation temperature |
-20℃ ~+55℃ |
|
Panel thickness |
1~8mm |
Nut torque |
5~14Nm |
|
Protection level |
P65/IP67 IK10 |
Terminal type |
Wiring pins (2.8x0.5mm) |
|
Material |
LED shade: Polycarbonate |
||
|
Body: Stainless steel/Nickel plated Brass/Aluminum Oxidized |
|||
|
Base: PBT |
|||
|
LED type |
Two way LED beads (AC and DC universal) |
||
|
Rated voltage Ue |
3V/6V/12V/24V/36V/48V/110V/220V |
||
|
LED color |
LED color:
Three or two colors can be customized |
||
|
LED life |
40,000 hours |
||

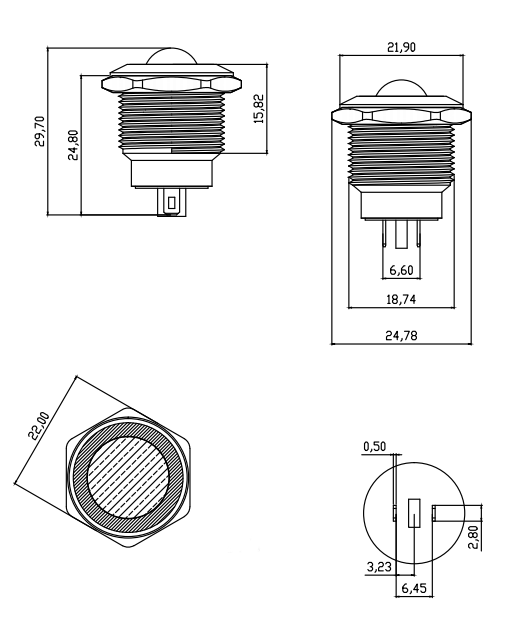

Led Metal Indicator Light Drawing
Features
1.Made from premium materials including stainless steel, nickel-plated brass, and aluminum oxide, our LED metal indicator lights are built to withstand the rigors of everyday use while maintaining a sleek, professional look.
2.The spherical light head not only adds to the aesthetic appeal, but also ensures optimal light diffusion for clear visibility from all angles.
3.Available in a variety of colors: red, green, yellow, blue and white—you can tailor your signaling system to your specific needs. Whether you need warning signals, status indicators or decorative lighting, our LED metal indicator lights offer versatility and reliability.
4.Terminal type options include solder pins or screws, providing flexibility in installation, ensuring a secure and stable connection. This feature is particularly beneficial for those who prioritize ease of use and efficiency in their projects.
