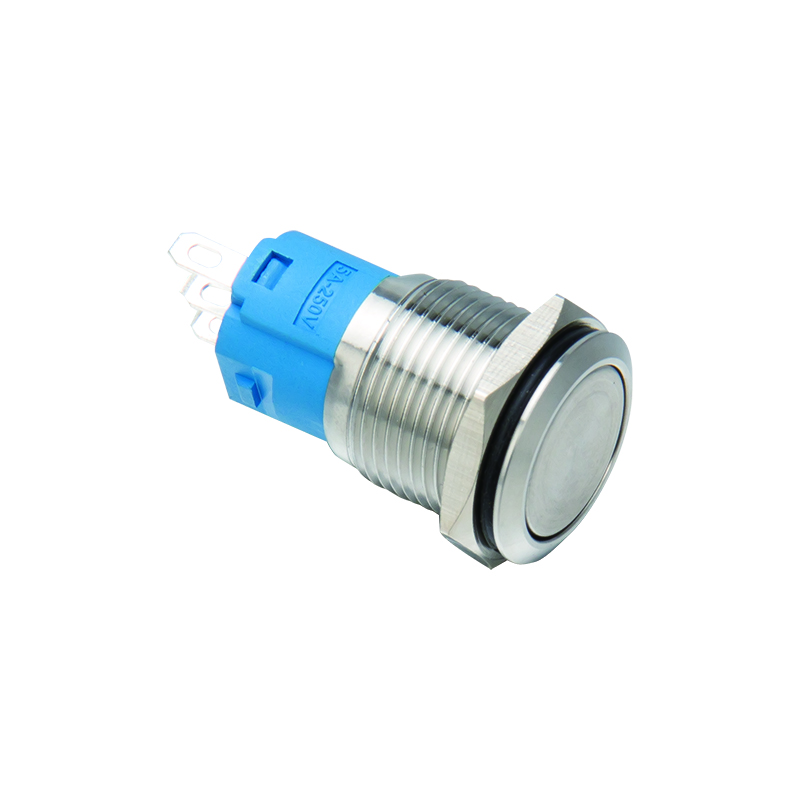

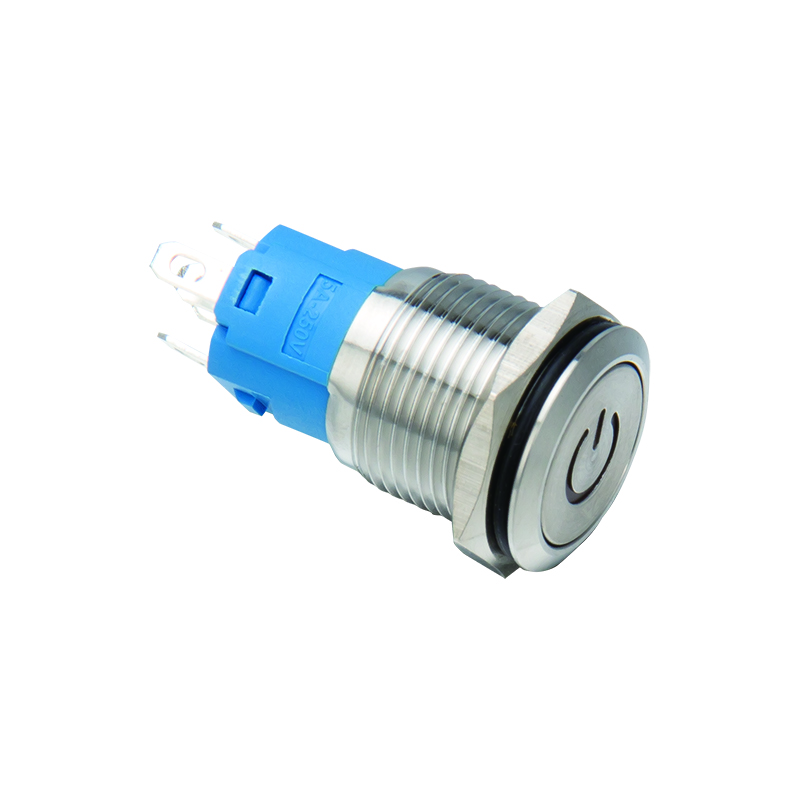

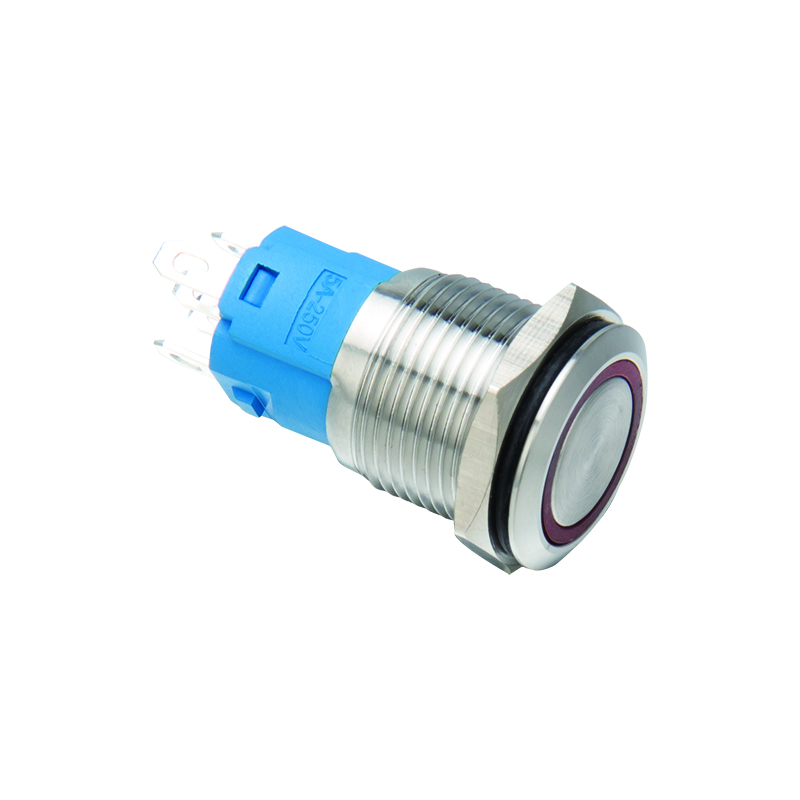

LED Illuminated Push Button Switch 19A2 Series

LED Illuminated Push Button Switch 19A2 series also named Push Button Light Switch.It is made of Stainless steel,Nickel plated Bras or Aluminum Oxidized.

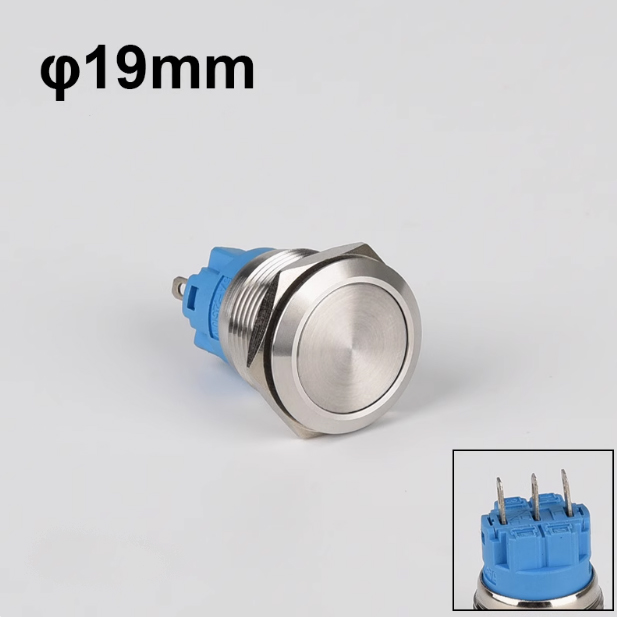

● Mounting hole size: 19mm
● Switch current: 3A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized

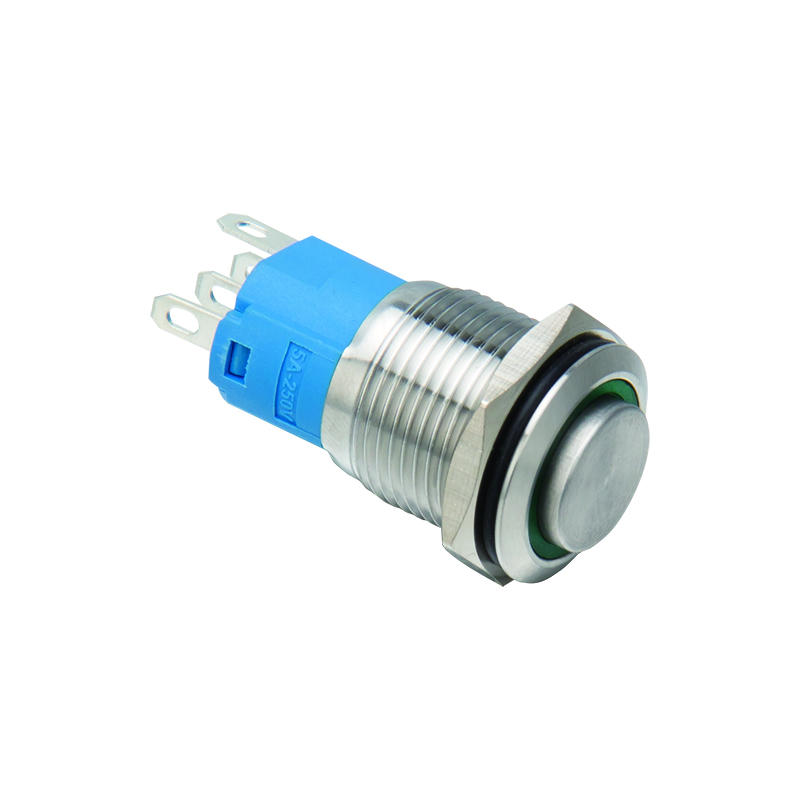

● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary/Latching
● Contact structure: 1NO 1NC
● Protection level: IP65

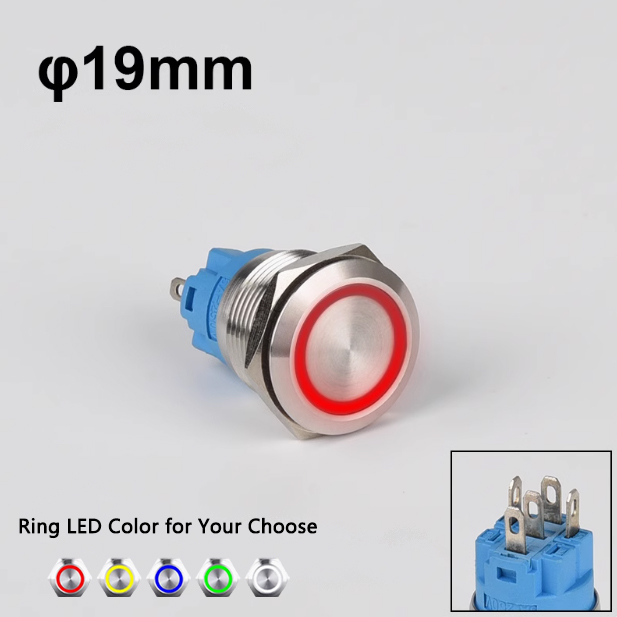

● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

HJ19A2-D3/P/Q
HJ19A2-D2/P/Q
HJ19A2-D2/T/Q
HJ19A2-P/Q
HJ19A2-T/Q

LED Illuminated Push Button Switch

Metal Push Button Selection Guide

Description

LED illuminated push button switch 19A2 Series. Designed for functionality and aesthetics, this push-button light switch is the perfect solution for a variety of applications, from industrial machinery to home automation.

Parameters

Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins (2.8X6.5mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40000 hours

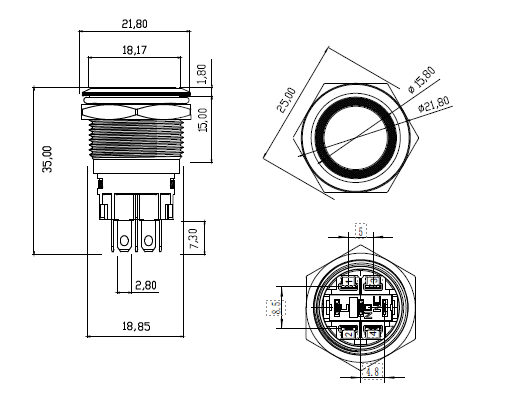

LED Illuminated Push Button Switch Drawing

Features

1.Made of high-quality materials, with stainless steel, nickel-plated brass or aluminum oxide. This ensures not only durability but also a sleek, modern look that blends seamlessly into any environment.

2.Mounting hole size is 19mm, making installation simple and worry-free.

3. The current can be reach to 3A. This enables reliable performance in controlling a variety of electrical equipment, ensuring your system runs smoothly and efficiently. LED lighting provides clear visibility, making it easy to find the switch even in low-light conditions. Whether you’re in a workshop, control room, or just enhancing your home lighting, this switch has what you need.
