Ip65 Push Button Switch 56A Series
-

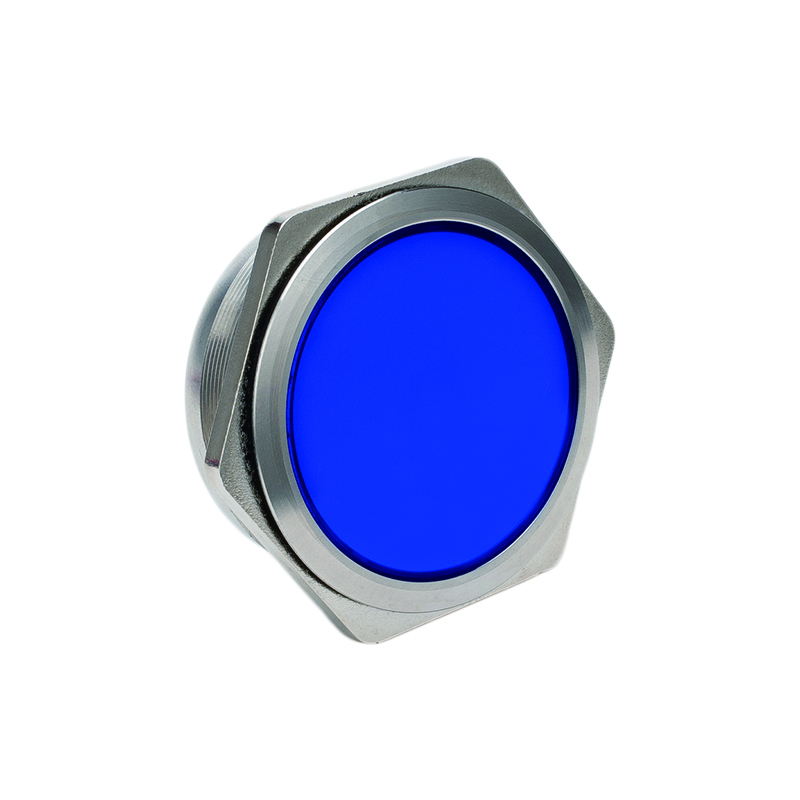

HJ56A-B/P/Q
-

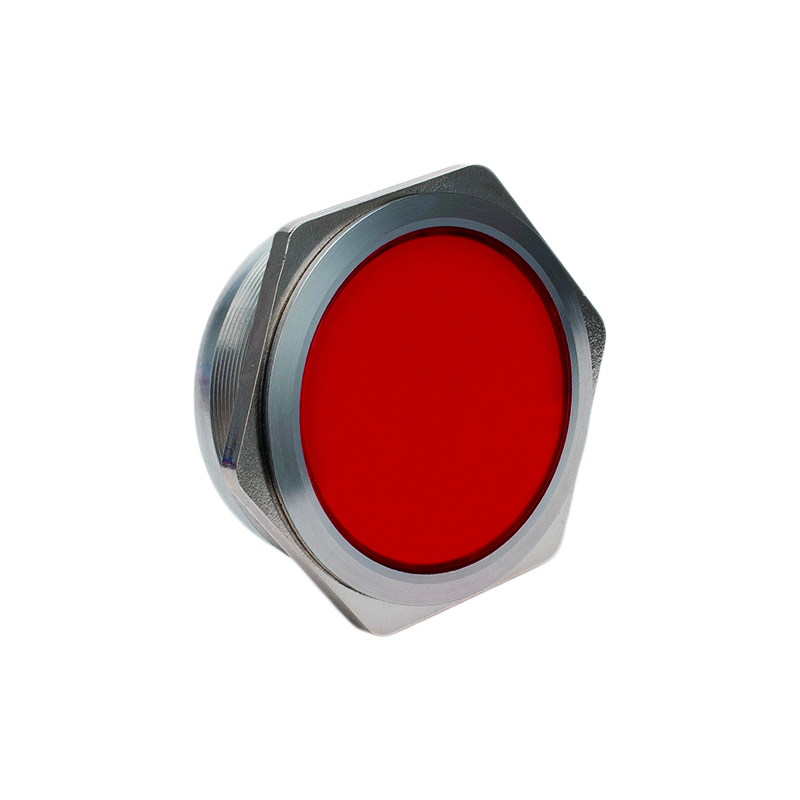

HJ56A-R/P/Q
-

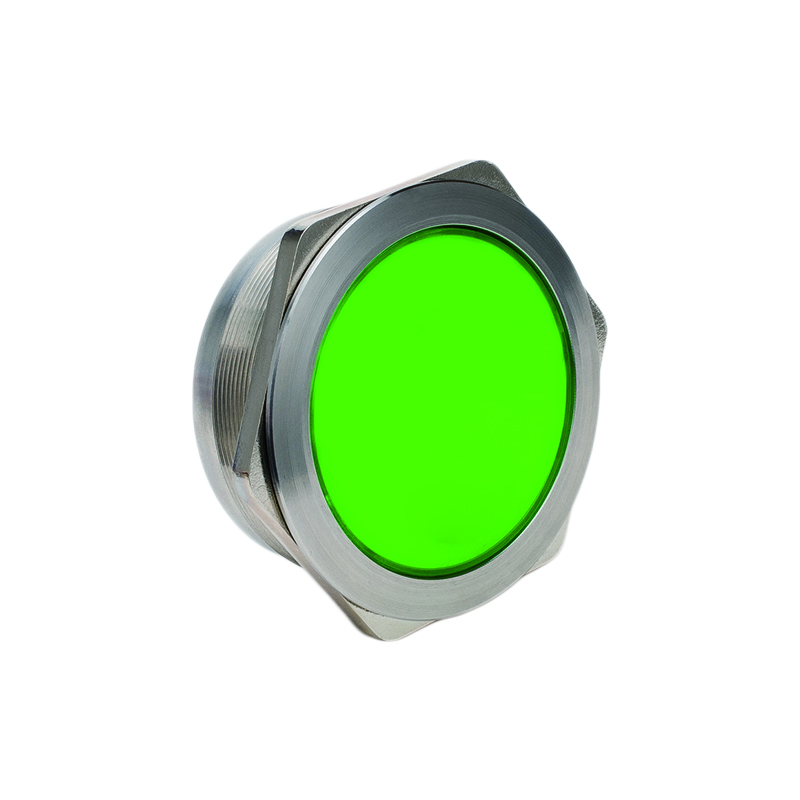

HJ56A-G/P/Q
-

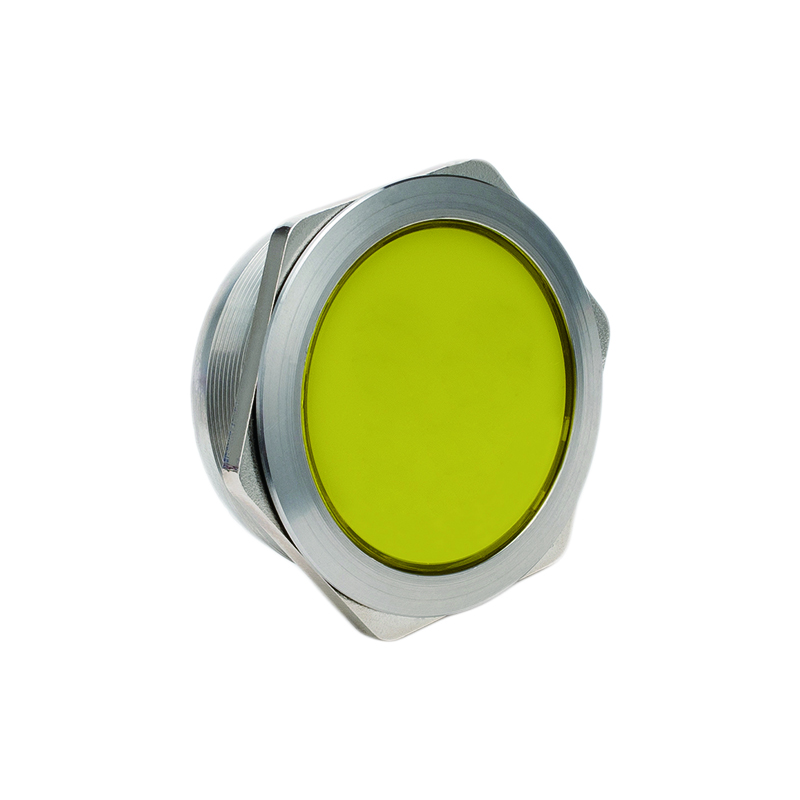

HJ56A-Y/P/Q
Description
Ip65 Push Button Switch 56A series is designed for functionality and durability, this large diameter metal push button switch is constructed from high-quality stainless steel, ensuring it can withstand the rigors of daily use while maintaining a sleek, professional appearance.
Parameters
|
Switch rating |
Current: 3A,Voltage:250V |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 100,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK09 |
Terminal type |
Wiring pins (2.8X9mm) |
|
Material |
Button: Stainless steel/Chrome plated Brass/Aluminum Oxidized |
LED Light |
LED color:
|
| Body: Stainless steel/Chrome plated Brass/Aluminum Oxidized |
LED Type: Two way LED beads(AC and DC universal) |
||
| Base: PBT |
Rated Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Contact: Gold plated contact |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

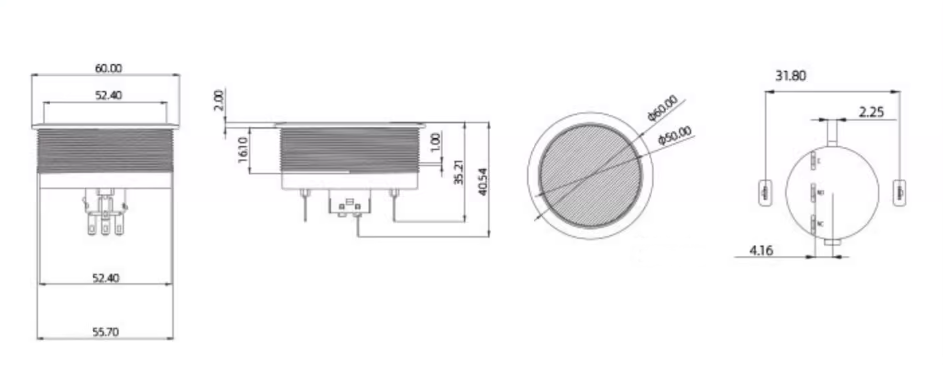

Ip65 Push Button Switch Drawing
Features
1. IP65 waterproof
2. mounting hole size of 56mm. making it ideal for a variety of applications ranging from industrial machinery to consumer electronics. Its generous size not only enhances visibility but is also easy to use, allowing for quick and efficient operation in any environment.
3. Stainless steel material. stainless steel construction not only adds to the aesthetics but also ensures resistance to corrosion and wear, making it suitable for both indoor and outdoor use. Its rugged design means it can withstand harsh conditions, making it ideal for industrial environments where durability is critical.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
