Illuminated Push button Switches 19B Series

Illuminated Push button Switches 19B Series is a momentary push button switch.The wiring type is screw or welding pins.
●Mounting hole size: 19mm
●Switch current: 2A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Spherical/Flat Head/High Flat Head
●Operation mode: Momentary
●Contact structure: 1NO
●Wiring type: Welding pins or screw
●Protection level: IP65/IP67 IK09
If you need customized,please feel free contact HS!

Metal Signal Indicator Lamp with wire

Description

lluminated Push button Switches 19B Series is a momentary pushbutton switch.It is designed to provide reliable, efficient operation in a variety of applications. With a 19mm mounting hole size, this switch fits into a variety of panel and equipment designs, making it a versatile choice for your project..

Parameters

Mounting hole size	16mm,19mm,22mm	Body color	R Y G B W BL
Switch rating	Current: 2A	Mechanical life	More than10,00,000 times
Electrical life	More than 200,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins/Screw
Material	Button: Stainless steel/Nickel Plated Brass/Oxidized Aluminum
	Body:Stainless steel/Nickel Plated Brass/Oxidized Aluminum
	Base: PBT
	Contact: Silver alloy

Note

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

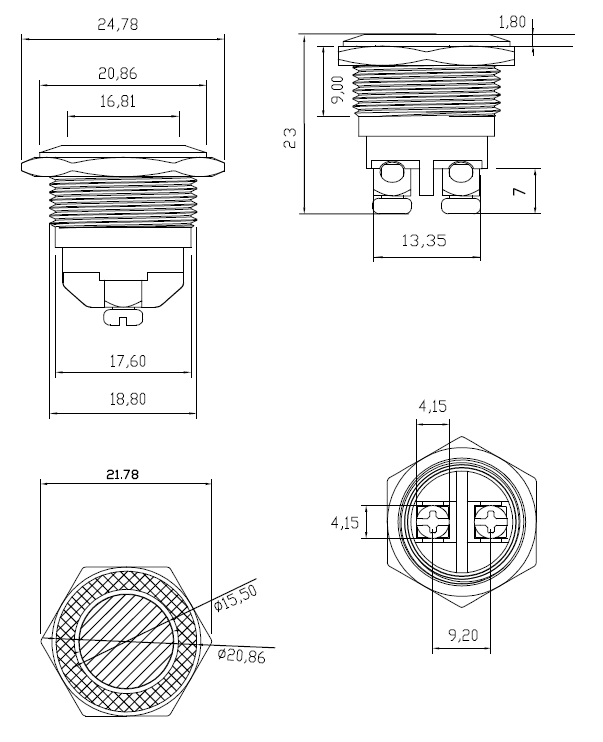

Illuminated Push button Switches Drawing

Features

1.Crafted with precision and durability in mind, the 19B Series illuminated pushbutton switches are constructed from a variety of premium materials, including stainless steel, nickel-plated brass, and anodized aluminum. This ensures the switches can withstand the rigors of daily use while maintaining their performance and appearance over time.

2.The 19B Series illuminated pushbutton switch features a 1NO contact structure, reliable and stable performance, giving you peace of mind in your electrical control system. The 2A switching current further enhances its suitability for a variety of low-power applications, making it a versatile choice for your project.
