Harsh Environment Switch Single Output With glue filling&wires M-PL Series
Description

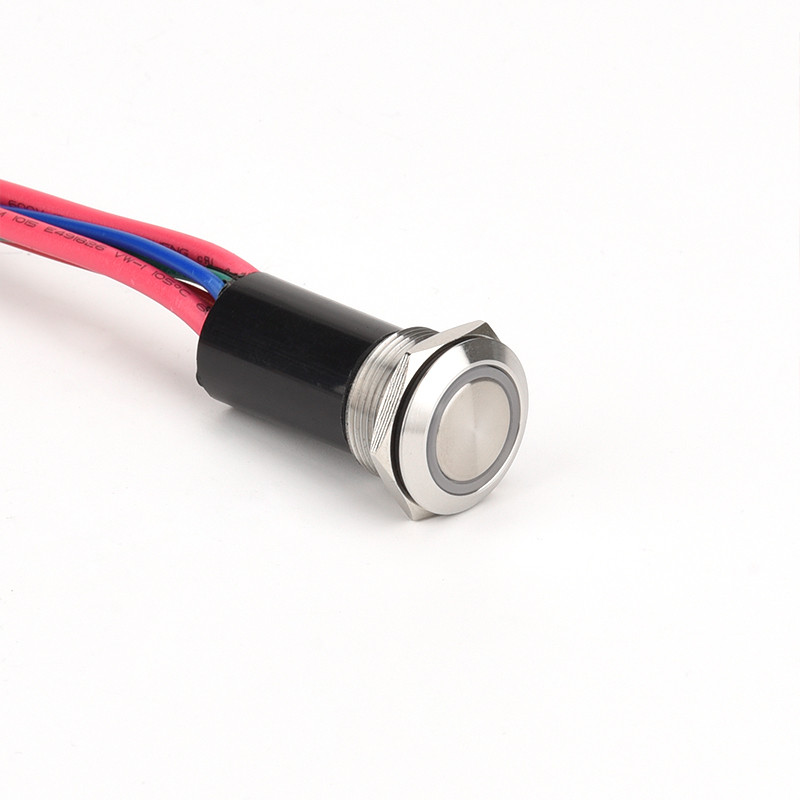

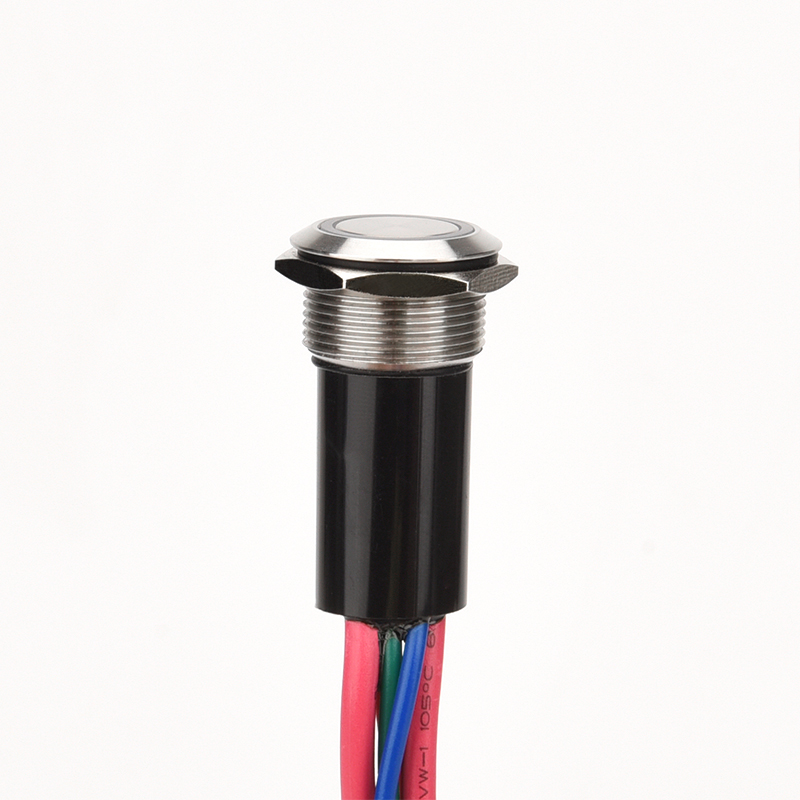

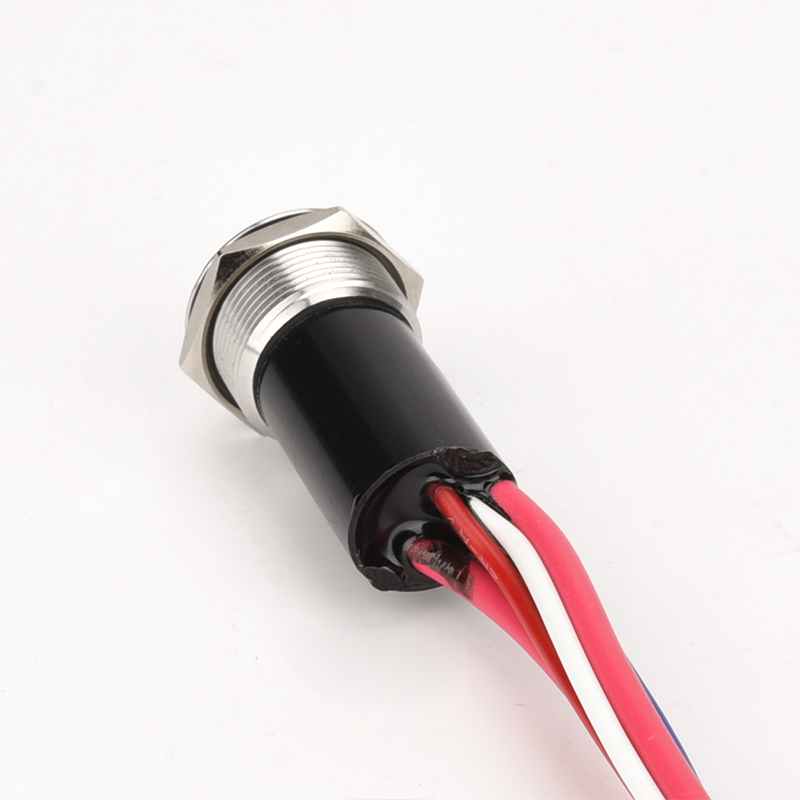

Harsh Environment Switch Single Output With glue filling&wires M-PL Series is an anti-vandal sealed push button switch with glue filling &wires that offers the industry standard ring illuminated version in 16mm,19mm,22mm diameter. The max current can be reach to 20A.The push button switches use a scratch resistant actuator and housings are made of robust stainless steel particularly suitable for use in equipment subjected to harsh conditions or applications that require protection from vandalism.Entire assembly component is waterproof.
Parameters
|
Switch rating |
Current: 20A,Voltage: 220V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Head shape |
Flat head |
Bottom con iguration |
14AWG harness, standard length 100CM,other length can be customized |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
2000VAC |
|
Operation temperature |
-20℃ ~+80℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Panel thickness |
1~5mm |
|
Material |
Button: Stainless steel |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel |
Voltage:3V/6V/12V/24V/36V/48V |
||
| Base: PA |
Rated current: 3 to 48V About 15mA |
||
| Contact: Silver alloy |
LED life: 4000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

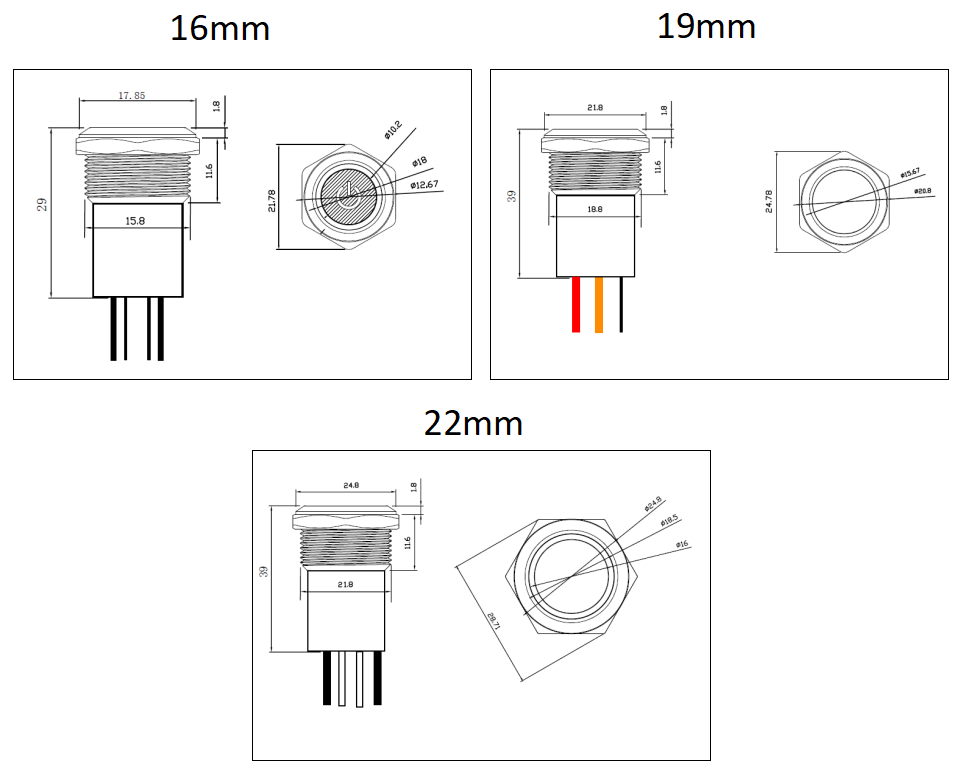

Harsh Environment Switch Single Output With glue filling&wires Drawing
Features
Momentary or Latching version
IP67 sealed,Entire assembly component is waterproof
Max.Current: 20A
Mounting hole size: 16mm,19mm,22mm
Various colors of LED illuminate indicator
Choices of push button with symbol on spot, ring or power logo
