Harsh Environment Switch Dual Output With glue filling&wires M-PL FZ Series
Description
Harsh Environment Switch Dual Output With glue filling&wires M-PL FZ Series meet the seal protection and impact resistance ratings of IP67 hat design to withstand the possible extreme outdoor environmental and may subject to abuse.
Also,the M3 FZ series comes with a variety of LED colors as illuminated push buttons and various of indicators on the actuator that meet your application needs.
Parameters
|
Switch rating |
Current: 10A |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Head shape |
Flat head |
Bottom con iguration |
Red, orange, black harness, standard 15cm,other length can be customized |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
2000VAC |
|
Operation temperature |
-20℃ ~+80℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (4.8X4.8X0.8mm) |
|
Material |
Button: Stainless steel |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel |
Voltage:3V/6V/12V/24V/36V/48V |
||
| Base: PA |
Rated current: 3 to 48V About 15mA |
||
| Contact: Silver alloy |
LED life: 4000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

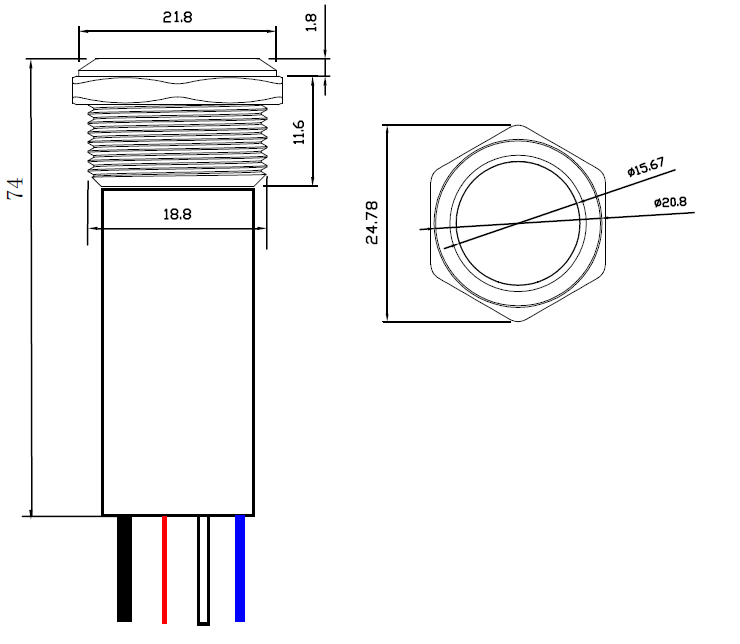

Harsh Environment Switch Dual Output With glue filling&wires Drawing
Features
Many types of load control output.
IP67 sealed,Entire assembly component is waterproof
Max.Current: 10A
Mounting hole size: 19mm,22mm
