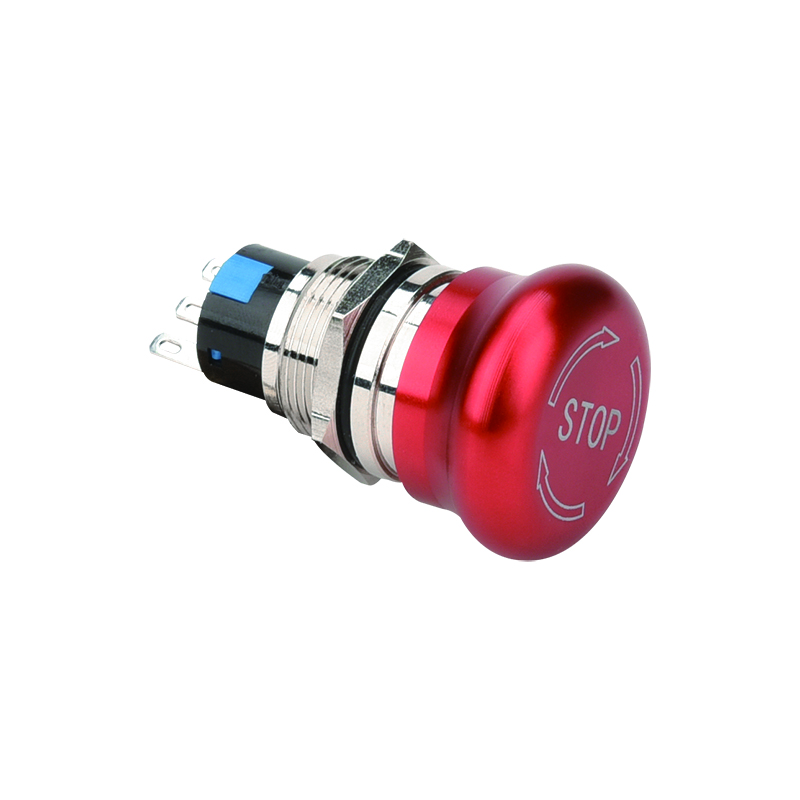

Emergency Stop Push Button 22A-CVN Series
-
HJ22A-11CV
-
HJ22A-11CVN
Description
The emergency stop push button 22A-CVN series is designed to provide a reliable and efficient solution for emergencies, ensuring that your operation can be stopped quickly and safely.
Parameters
|
Switch rating |
Current: 3A,Voltage: 250V |
Mechanical life |
More than 100,000 times |
|
Electrical life |
More than 50,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
2000VAC |
|
Operation temperature |
-30℃ ~+60℃ |
Operation pressure |
About 3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 |
Terminal type |
Wiring pins (2.8X9mm) |
|
Material |
Button: Aluminum |
||
|
Body:Stainless steel |
|||
|
Base: PA |
|||
|
Contact: Silver alloy |
|||
Note:
Press the emergency stop button: Press the button to start self-locking and stop running
Rotating pop-up: Rotate the button head clockwise, the button pops up and runs normally
Emergency Stop Push Button Drawing
Features
1.This emergency stop push button has a unique mushroom head shape that is not only easy to identify but also allows for quick activation in critical moments. Ergonomic design ensures operators can easily find and press buttons even in high-pressure situations.
2.With a mounting hole size of 22 mm, the emergency stop button is versatile and can be easily integrated into a variety of control panels and mechanisms. Its compact design does not compromise functionality, making it ideal for new installations and retrofits of existing systems.
3.Made from high-quality stainless steel, the button is built to withstand harsh industrial environments. This durable material ensures longevity and corrosion resistance, making it suitable for a variety of applications from manufacturing plants to construction sites.
4.The 3A switch current rating provides reliable performance, ensuring your emergency stop system operates effectively when needed. This feature is critical to maintaining safety standards and protecting personnel and equipment.
