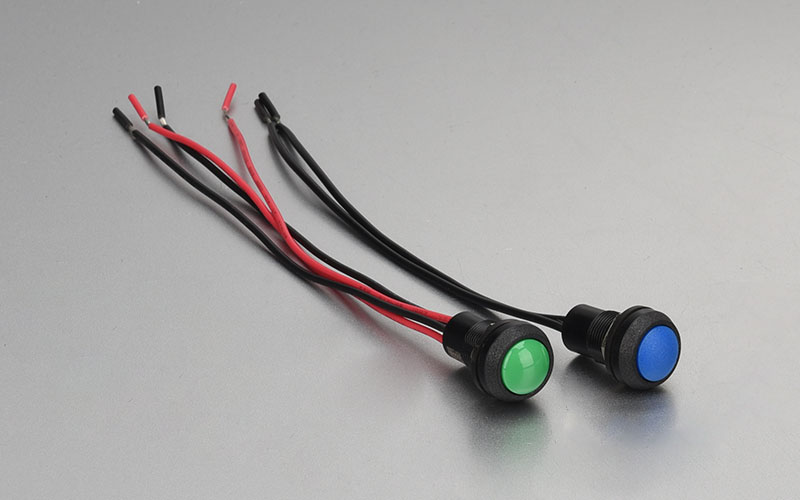

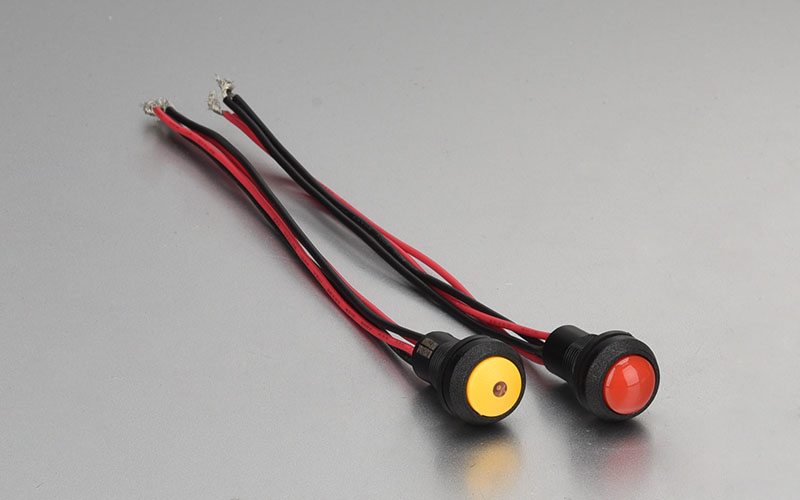

Customized Push Button Switch 12CL Series
-
HL12C/D1/S/L
-
HL12C/S/L
-
HL12C/T/S/L
Description
Customized Push Button Switch 12CL Series is made of plastic,and it is the perfect solution for your electronic projects and applications.
Parameters
|
Switch rating |
Current: 2A,Voltage:36V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 200,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 100MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Bottom con iguration |
Wiring pins (3.7X2.8mm) |
|
Material |
Button: Plastic |
LED Light |
LED color:
|
| Body: Plastic |
Rated current: 3 to 48V About 15mA 110 to 220V about 2mA |
||
| Base: PA |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Contact: Gold plated contact |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

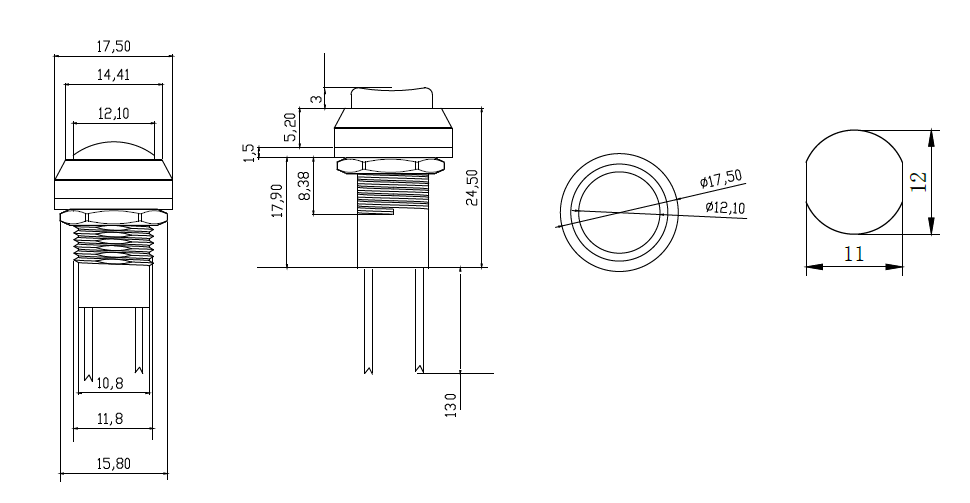

Customized Push Button Switch Drawing
Features
1.Customized push button switches feature a 12mm mounting hole size, making them easy to install on a variety of devices and panels.
2.Capable of handling currents up to 2A, the switch ensures reliable performance in a variety of electrical environments.
3.Made of high-quality plastic, the switch is both durable and lightweight, making it an ideal choice for both portable and fixed applications.
4.Whether you prefer a latching or momentary mode of operation, our custom push button switches can be tailored to your specific requirements, giving you the flexibility to choose the features that best suit your project.

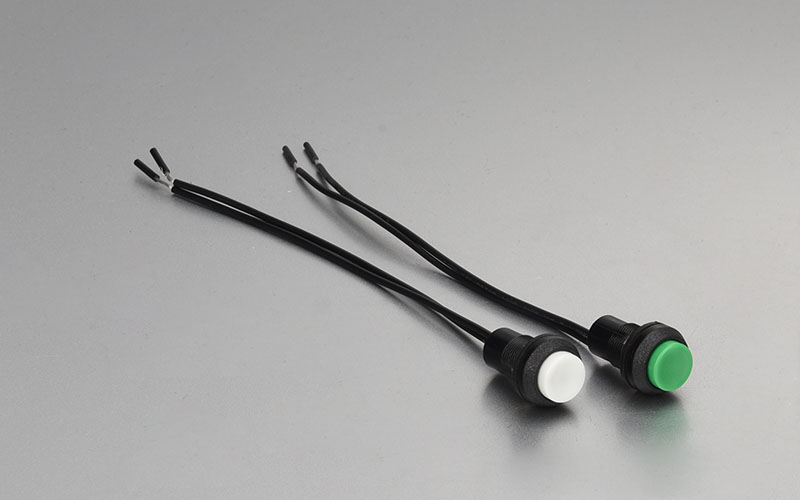

Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
