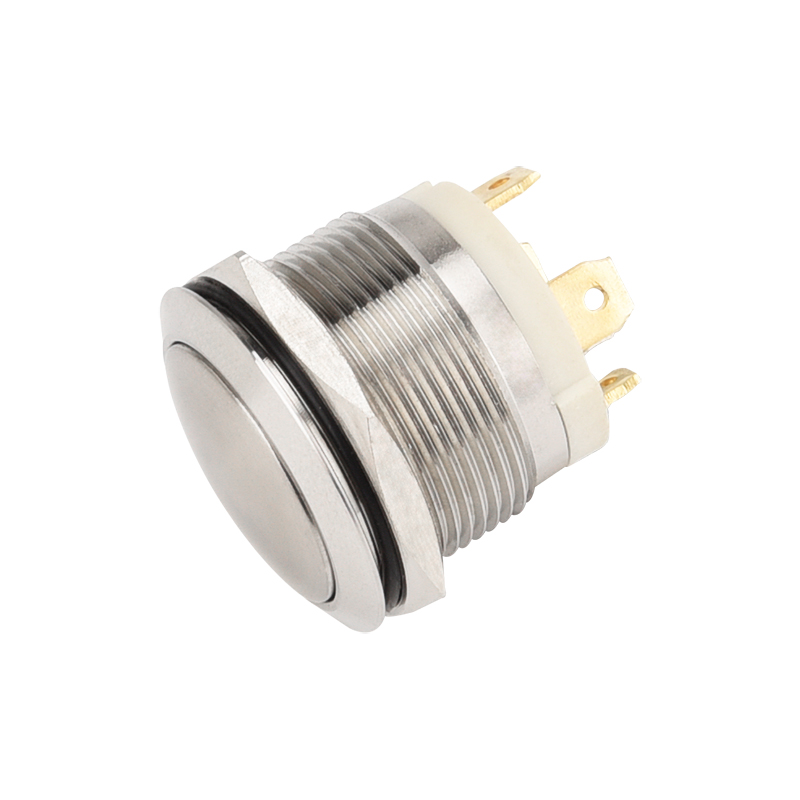

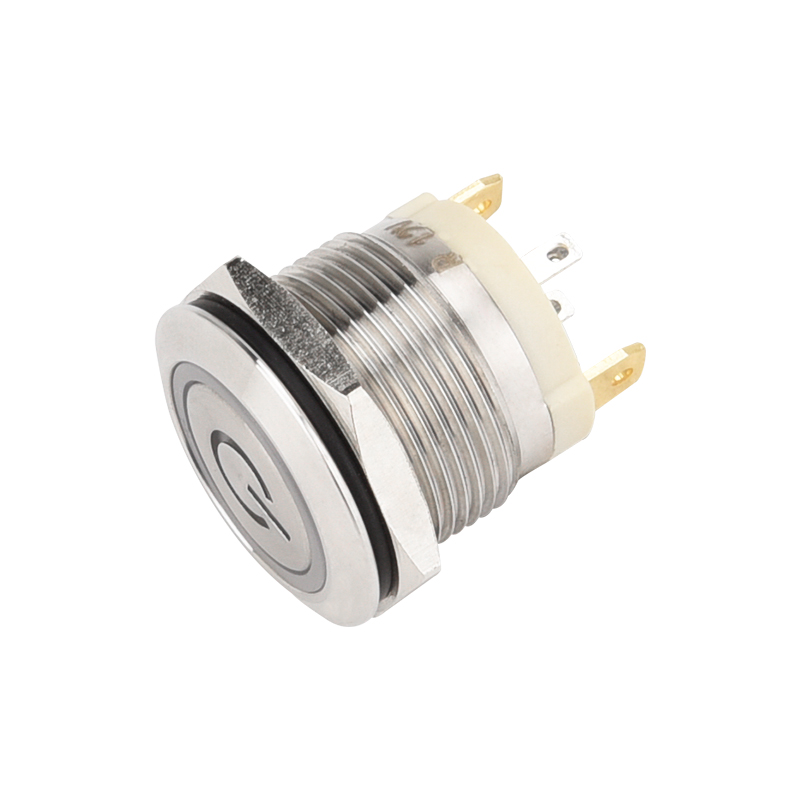

Black Push Button Switch 22M Series

Black Push Button Switch 22M Series is made of aluminum oxidized,the switch current can be reach to 20A.

● Mounting hole size: 22mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO 1NC/2NO/2NC
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
● LED voltage: AC/DC 3V/6V/12V/24V/36V/48V/110V/220V
If you need customized,please feel free contact HS!

HJ22M-D3/P/S
HJ22M-D2/P/S
HJ22M-D4/P/S
HJ22M-Q/S

Black Push Button Switch Drawing

Metal Push Button Selection Guide

Description

The black push button switch 22M Series is a rugged and reliable solution designed for functionality and aesthetics. Made from high-quality aluminum oxide material, the switch is not only durable but also has a sleek, modern look that blends seamlessly into any environment.

Parameters

Switch rating	Current: 20A,Voltage: 220V	Mechanical life	More than 1,000,000 times
Electrical life	More than 40,000 times (20A) More than 60,000 times (15A) More than 200,000 times (10A)	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	2500VAC
Operation temperature	-20℃ ~+80℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK08	Terminal type	Wiring pins (4.8X4.8X0.8mm)
Material	Button: Stainless steel	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		Rated current: 3 to 48V About 15mA 110 to 220V about 2mA
	Contact: Silver alloy		LED life: 4000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

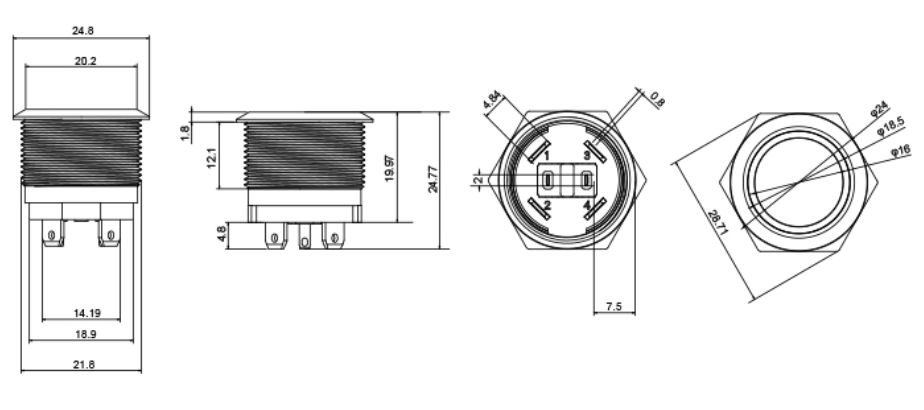

Black Push Button Switch Drawing

Features

1.The black push button switch is designed to handle switching currents up to 20A, making it ideal for a variety of applications from industrial machinery to home automation systems. Its impressive current capacity ensures it can manage heavy loads with ease, giving you peace of mind and stable performance.

2. The black push button switches of the 22M series are also aesthetically pleasing. The glossy black finish not only enhances its visual appeal but is also wear-resistant, ensuring it retains its original appearance over time. This makes it an excellent choice for both professional and personal projects.
