Anti-Vandal Pushbutton Switches 12A2 Series
-

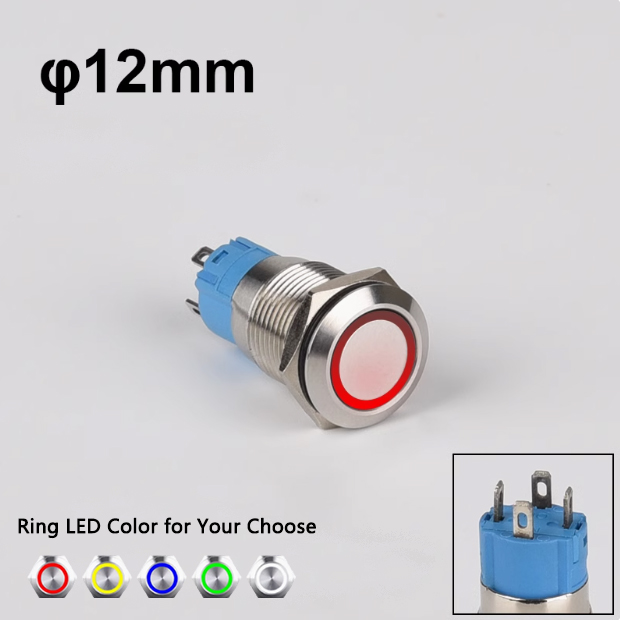

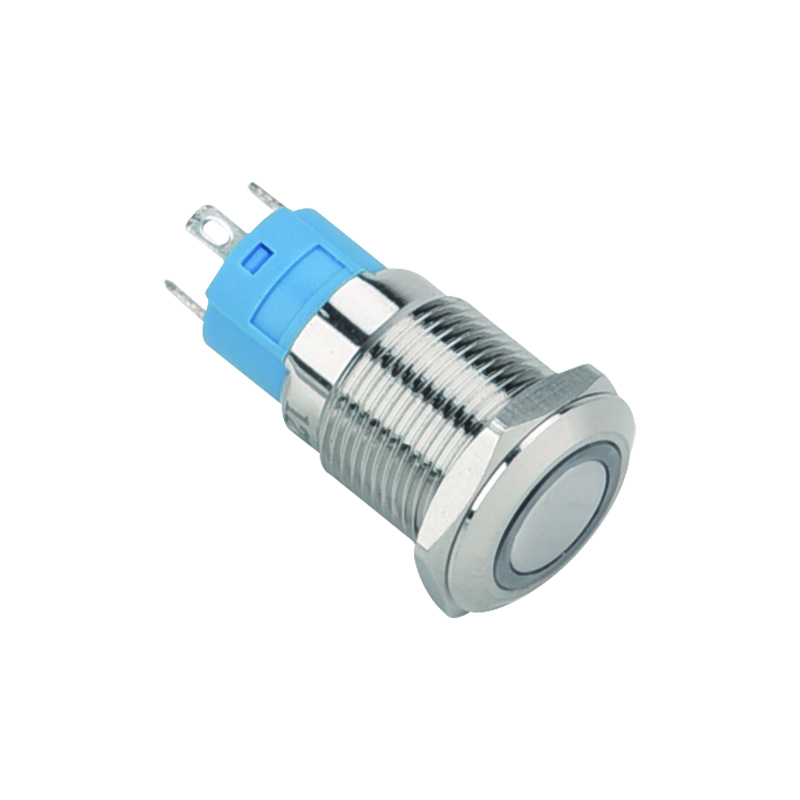

HJ12A2-10D2/P/Q
-

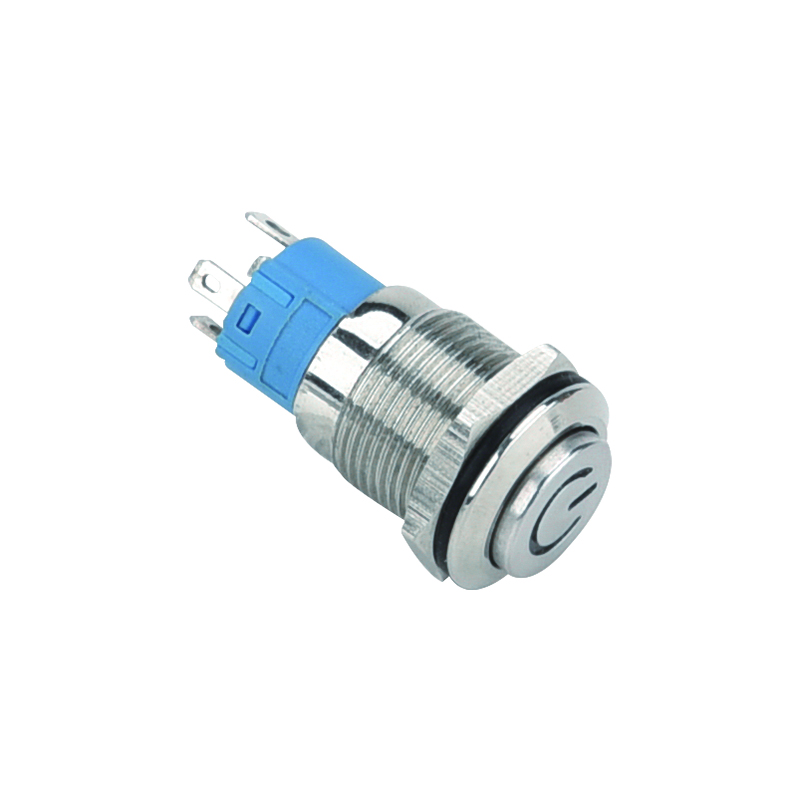

HJ12A2-10D3/T/Q
-

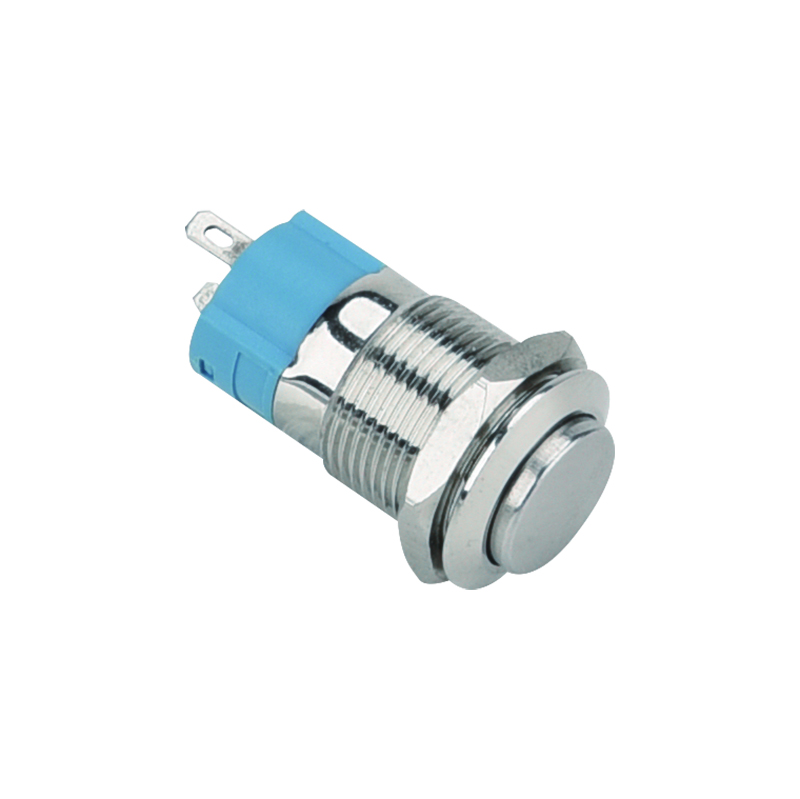

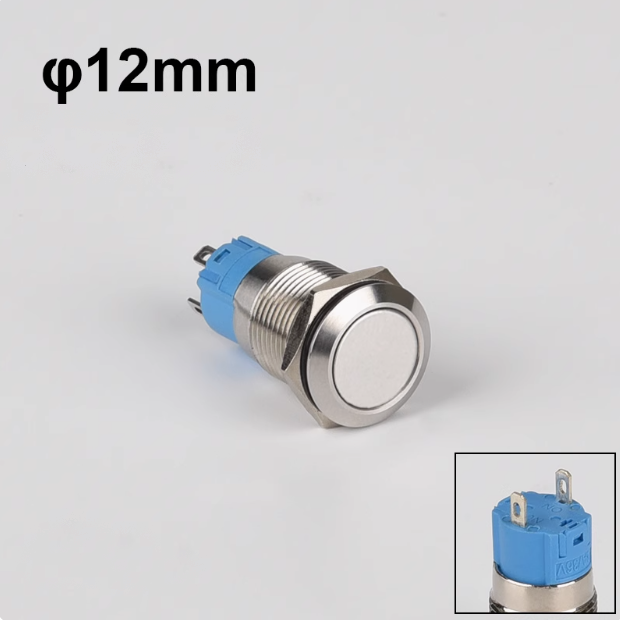

HJ12A2-10/T/Q
Description
Anti-Vandal Pushbutton Switches also named vandal resistant push button switches.The anti vandal pushbutton switches are ruggedly built to withstand extreme conditions, making them ideal for outdoor installations, public spaces and high-traffic areas. Whether you are looking to increase the security of your control panel or need a reliable switch for your machine, these switches have what you need.
Parameters
|
Switch rating |
Current: 2A |
Mechanical life |
More than 200,000 times |
|
Electrical life |
More than 100,000 times |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
1500VAC |
|
Operation temperature |
-20℃ ~+55℃ |
Operation pressure |
3-5N |
|
Operation travel |
About 3.1mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65 IK09 |
Terminal type |
Wiring pins (2.8X6.5mm) |
|
Material |
Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
LED Type: Two way LED beads(AC and DC universal) |
||
| Contact: Silver alloy |
LED life: 40,000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

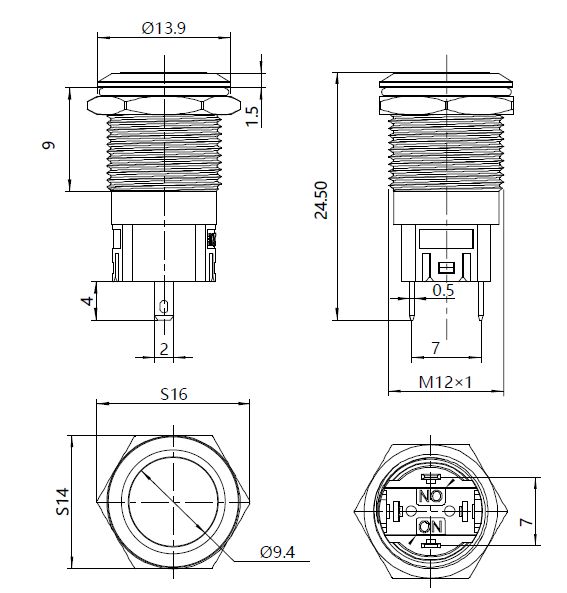

Anti-Vandal Pushbutton Switches Drawing
Features
1.IP65 waterproof
2.Max.Current: 5A,This allows for seamless operation in a variety of electrical applications, ensuring your equipment operates efficiently and reliably.
3.These Anti-Vandal Pushbutton Switches are available in a variety of mounting hole sizes: 12mm, 16mm, 19mm and 22mm, providing
4.versatility for different installation requirements.
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
