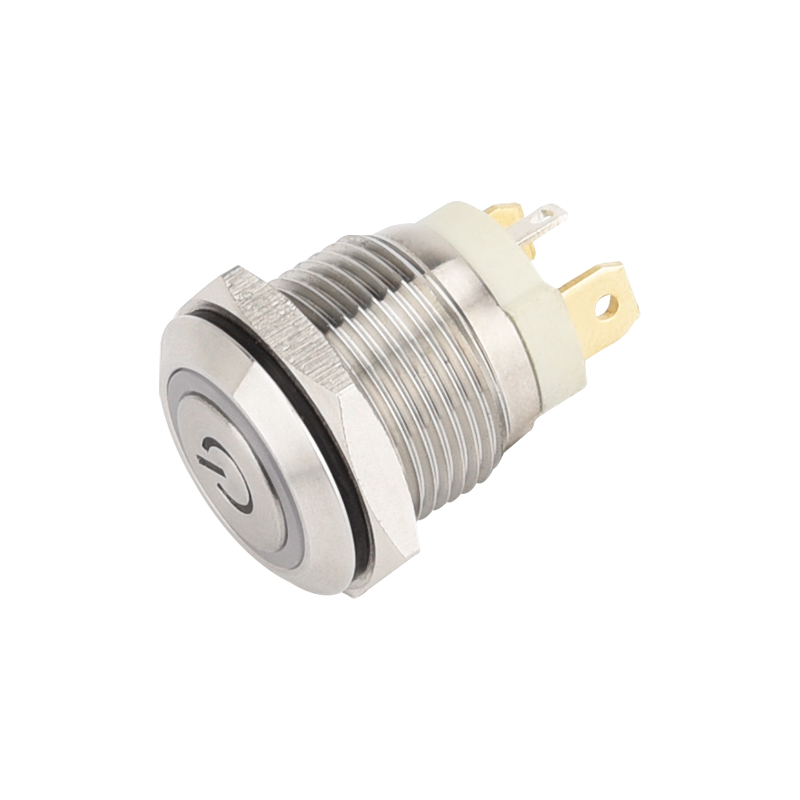

20A Push Button Switch 19M Series

20A Push Button Switch 19M Series is a high current push button,it can meet more load requirements.The button surface can be customized with various patterns to distinguish the switch function.
● Mounting hole size: 19mm
● Switch current: 20A
● Material: Stainless steel/Nickel plated Brass/Aluminum Oxidized
● Head shape: Flat round/High flat round/Spherical
● Operation mode: Latching/Momentary
● Contact structure: 1NO
● With or without illumination LED
● LED Type: Ring/symbol illuminated/Ring+symbol illuminated/Dot
● LED color: R/G/B/Y/W/RGB/RGY
If you need customized,please feel free contact HS!

HJ19M-10/T/S
HJ19M-10/Q/S
HJ19M-10D3/P/S
HJ19M-10D2/P/S
HJ19M-10D4/P/S

20A Push Button Switch

Metal Push Button Selection Guide

Description

20A push button switches 19M Series is designed for high performance applications, this rugged switch can handle high current loads, making it ideal for a variety of industrial and commercial uses. The maximum switching current is 20A, ensuring reliable operation even in harsh environments.

Parameters

Switch rating	Current: 20A,Voltage: 220V	Mechanical life	More than 1,000,000 times
Electrical life	More than 40,000 times (20A) More than 60,000 times (15A) More than 200,000 times (10A)	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	2500VAC
Operation temperature	-20℃ ~+80℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK08	Terminal type	Wiring pins (4.8X4.8X0.8mm)
Material	Button: Stainless steel	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Base: PA		Rated current: 3 to 48V About 15mA 110 to 220V about 2mA
	Contact: Silver alloy		LED life: 4000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

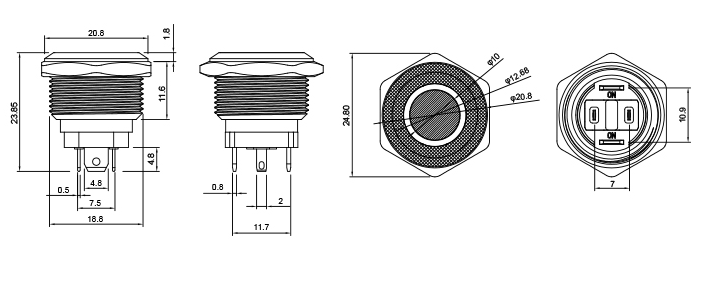

20A Push Button Switch Drawing

Features

1.Mounting hole size: 19mm, making it easy to install in a variety of panels and enclosures. Its compact design does not compromise functionality and integrates seamlessly into your existing systems. Whether you want to control machinery, lighting, or other electrical equipment, this switch has what you need.

2.Durability was a primary consideration in the design of the 19M Series. The materials used in the construction of the 20A push button switch have been carefully selected for their resilience, ensuring the switch can withstand the rigors of daily use.
