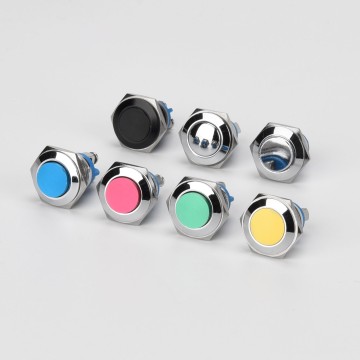

20A High Current Metal Push Button Switch M Series
Description
20A metal push button switch is used for high current application,such as marine,control panels,Industrial Instruments.It is an anti-vandal sealed push button switch.The mounting hole diameter is 16 mm.And the max current of push button can be reach to 20A.It is particularly suitable for use in equipment subjected to harsh conditions or applications that require protection from vandalism.
Parameters
|
Switch rating |
Current: 20A,Voltage: 220V |
Mechanical life |
More than 1,000,000 times |
|
Electrical life |
More than 40,000 times (20A) More than 60,000 times (15A) More than 200,000 times (10A) |
Contact resistance |
≤ 50mΩ |
|
Insulation resistance |
≥ 1000MΩ |
Dielectric strength |
2500VAC |
|
Operation temperature |
-20℃ ~+80℃ |
Operation pressure |
About 4N |
|
Operation travel |
About 1.5mm |
Nut torque |
5~14Nm |
|
Protection level |
IP65/IP67 IK08 |
Terminal type |
Wiring pins (4.8X4.8X0.8mm) |
|
Material |
Button: Stainless steel |
LED Light |
LED color:
Three or two colors can be customized |
| Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum |
Voltage:3V/6V/12V/24V/36V/48V/110V/220V |
||
| Base: PA |
Rated current: 3 to 48V About 15mA 110 to 220V about 2mA |
||
| Contact: Silver alloy |
LED life: 4000 hours |
Note:
*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.
*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

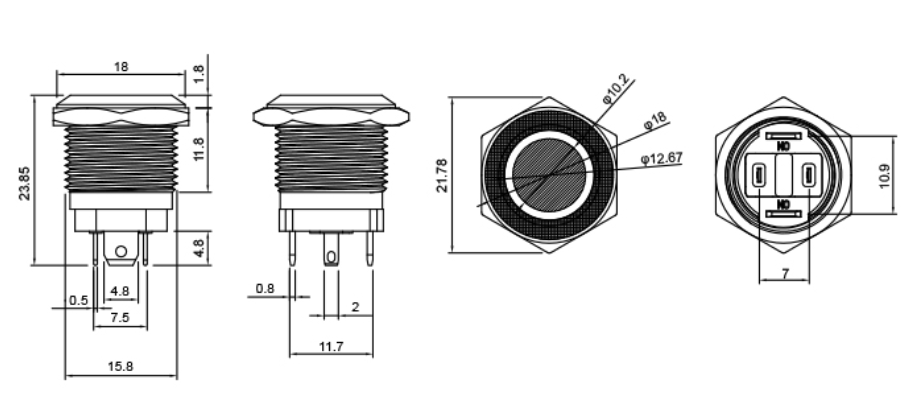

Push Button Switch Drawing
Features
1.Momentary or Latching version
2.IP67 waterproof
3.Max.Current: 20A
4.Various colors of LED illuminate indicator
5.Choices of push button with symbol on spot, ring or power logo
Wiring service
We supply the welding wiring service,you need send us the wiring diagram,we will according to your wiring diagram to weld the wire.
Applications
Marine Equipment
The 20A metal push button switch is very suitable used for marine control panel,It can not only be used for high instantaneous current of marine engines and has high waterproof performance, but also suitable for harsh marine environments.
Control Panels including Car park and traffic light
This metal push button switch also suitable for car control panels and the traffic light.
Industrial Instruments
The push button switch is widely used in industrial instruments.
