19mm Push Button Switch 19AF Series

●Mounting hole size: 19mm
●Switch current: 3A
●Material: Stainless steel/Nickel Plated Brass/Aluminum Oxidized
●Head shape: Flat Head/High Flat Head/Spherical
●Operation mode: Momentary/Latching
●Contact structure: 1NO 1NC/2NO 2NC
●LED Color: Red/Green/Yellow/Blue/White
●Protection level: IP65
If you need customized,please feel free contact HS!

Metal Signal Indicator Lamp with wire

Description

Led Push Button Switches 16C Series designed with versatility and durability in mind, this push button switch features a 16mm mounting hole size for easy integration into a variety of devices and panels.

Parameters

Switch rating	Current: 3A	Mechanical life	More than 200,000 times
Electrical life	More than 100,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	3-5N
Operation travel	About 3.1mm	Nut torque	5~14Nm
Protection level	IP65 IK09	Terminal type	Wiring pins (2.8X9mm)
Material	Button: Stainless steel/Nickel Plated Brass /Oxidized Aluminum	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body:Stainless steel/Nickel Plated Brass /Oxidized Aluminum		Voltage:3V/6V/12V/24V/36V/ 48V/110V/220V
	Base: PBT		LED Type: Two way LED beads(AC and DC universal)
	Contact: Silver alloy		LED life: 40,000 hours

Note

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

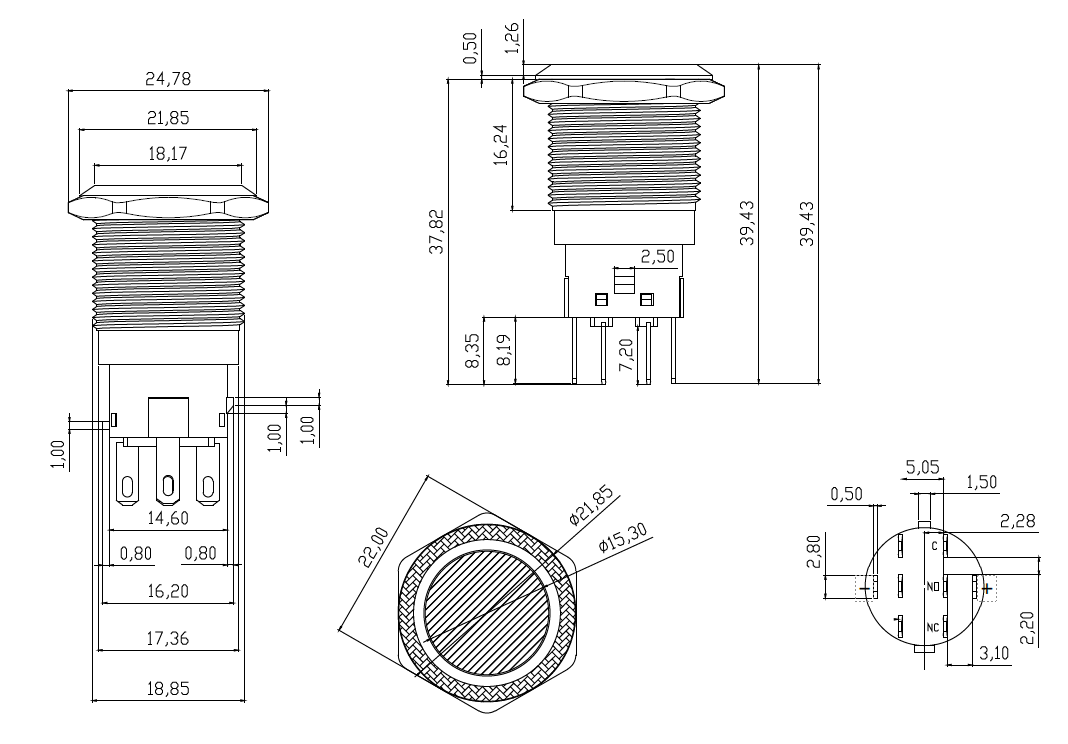

19mm Push Button Switch Drawing

Features

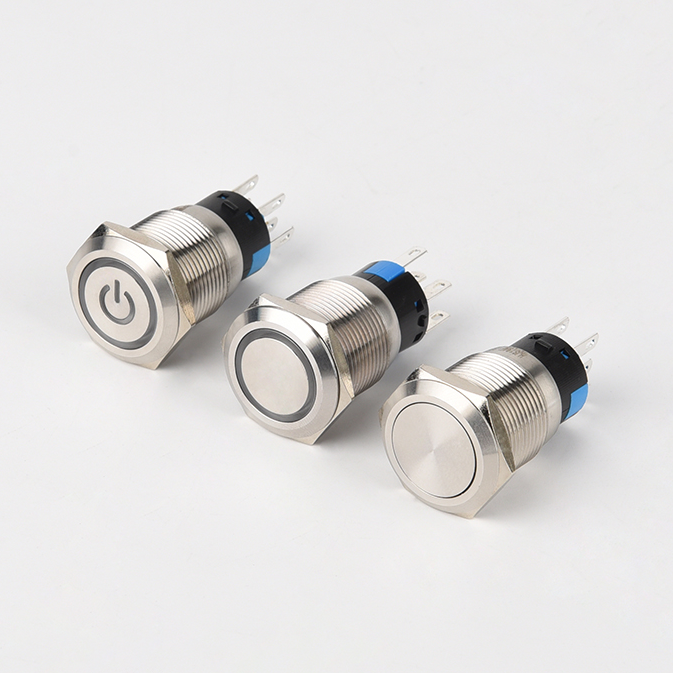

The switches are available in a variety of head shape options, including flat, tall flat, and spherical, providing flexibility in design and aesthetics. Whether you prefer a sleek, modern look or a more traditional look, our 19mm pushbutton switches can be customized to your liking.

In terms of operating mode, the switch offers both momentary and latching options to suit different user preferences and application needs. This versatility makes it suitable for a variety of functions, from simple on/off control to more complex operating sequences.

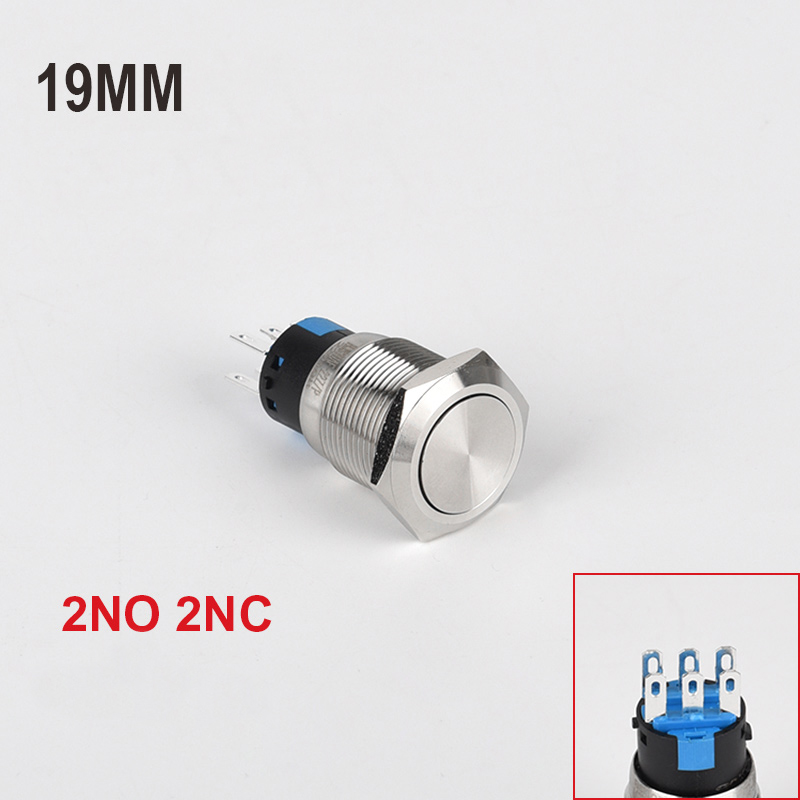

The switch contact structure can also be customized, with a choice of 1NO 1NC or 2NO 2NC configurations. This flexibility allows precise control and customization of the switch function, ensuring it meets the specific requirements of your application.
