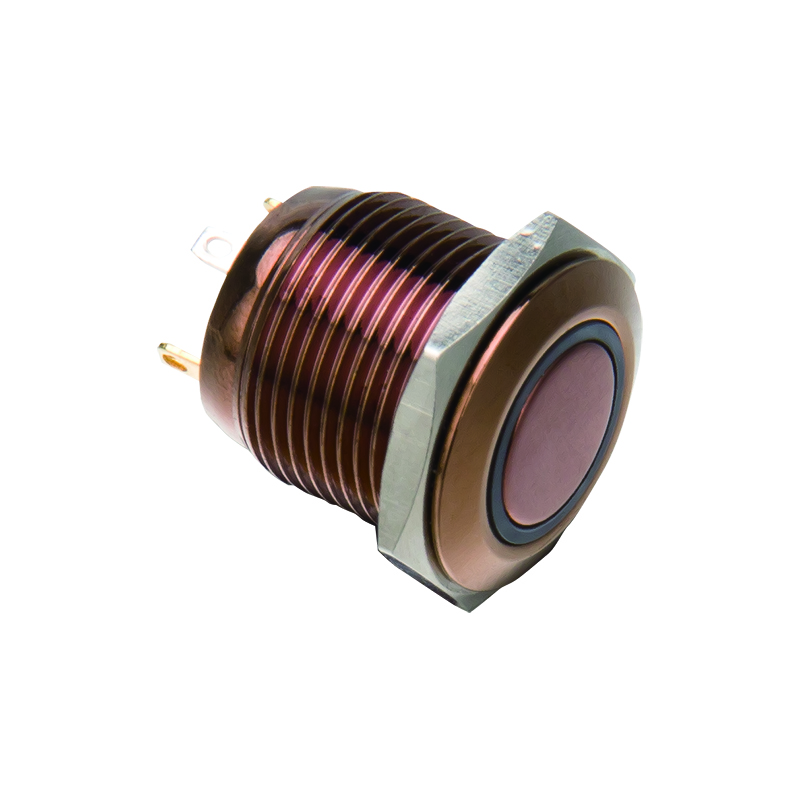

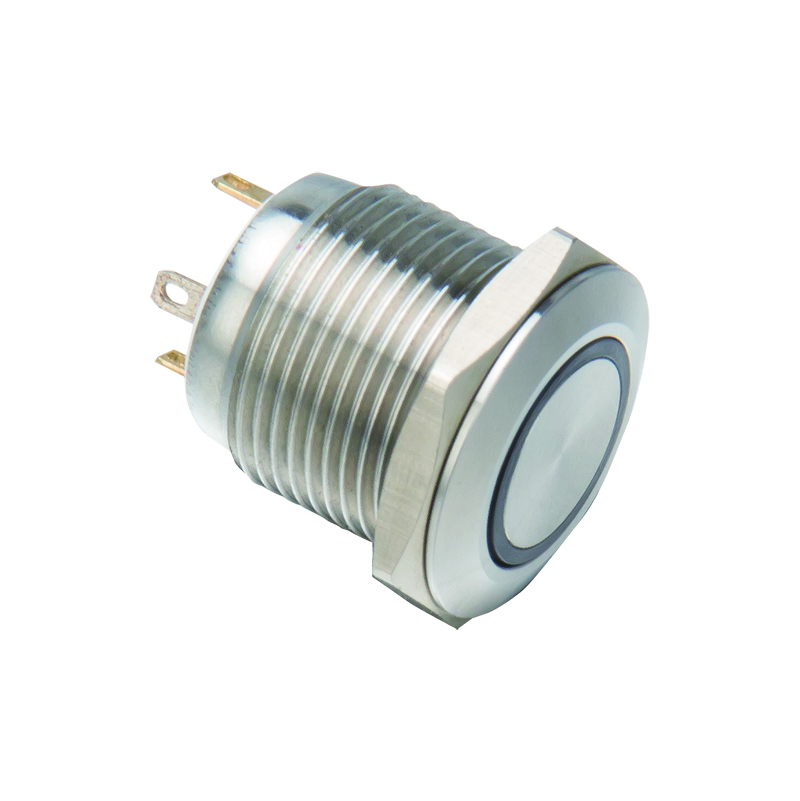

16mm Momentary Push Button Switch 16E Series

16mm Momentary Push Button Switch also named self-reset Push Button Switch.The max current can be reach to 2A.
● Mounting hole size: 16mm
● Switch current: 2A
● Material: Stainless steel/Chrome plated Brass/Aluminum Oxidized
● Head shape: Flat Head/High Flat Head
● Operation mode: Momentary
● Contact structure: 1NO
● LED Color: Red/Green/Yellow/Blue/White
If you need customized,please feel free contact HS!

HJ16E-10/P/S
HJ16E/D2/BK/P/S
HJ16E/D2/T/S
HJ16E/D2/P/S
HJ16E/D4/BK/P/S
HJ16E/D4/P/S

Momentary Push Button Switch

Metal Push Button Selection Guide

Description

16mm Momentary Push Button Switch also named self-reset Push Button Switch.The mounting hole size is 16mm,it is made of stainless steel,chrome plated brass or aluminum oxidized.

Parameters

Switch rating	Current: 2A,Voltage:36V	Mechanical life	More than 1,000,000 times
Electrical life	More than 200,000 times	Contact resistance	≤ 50mΩ
Insulation resistance	≥ 1000MΩ	Dielectric strength	1500VAC
Operation temperature	-20℃ ~+55℃	Operation pressure	About 4N
Operation travel	About 1.5mm	Nut torque	5~14Nm
Protection level	IP65/IP67 IK08	Terminal type	Wiring pins (2X5mm)
Material	Button: Stainless steel/Chrome plated Brass/Aluminum Oxidized	LED Light	LED color: R Y G B W Three or two colors can be customized
	Body: Stainless steel/Chrome plated Brass/Aluminum Oxidized		Rated current: 3 to 48V About 15mA 110 to 220V about 2mA
	Base: PA		Voltage:3V/6V/12V/24V/36V/48V/110V/220V
	Contact: Gold plated contact		LED life: 40,000 hours

Note:

*A momentary switch is when you push and hold the switch to turn it on. When you release the switch,it will turn off.

*A latching switch is when you push the switch to turn it on.When you push it again to turn it off.

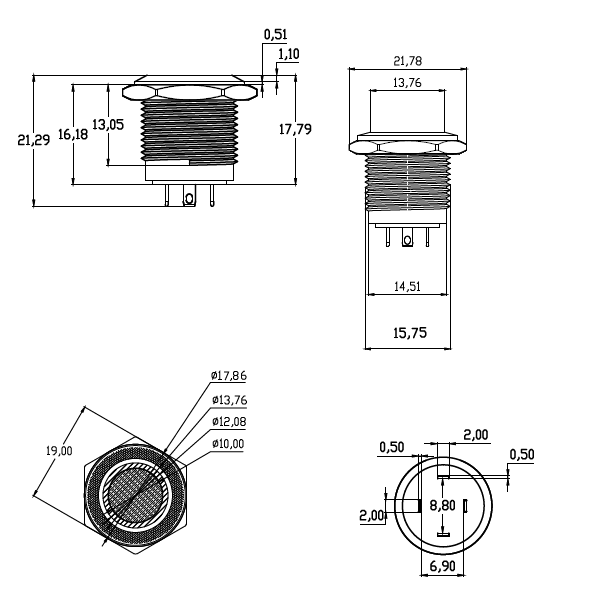

Momentary Push Button Switch Drawing

Features

1.IP65 or IP67 waterproof

2.The max current is 2A.It is ensures reliable power delivery, allowing you to control devices with confidence. Whether you’re working on electronic projects, DIY gadgets, or industrial machinery, this switch provides the durability and functionality you need.

3.Momentary.It is particularly useful for applications requiring temporary activation, such as triggering alarms, starting motors, or controlling lighting systems.
